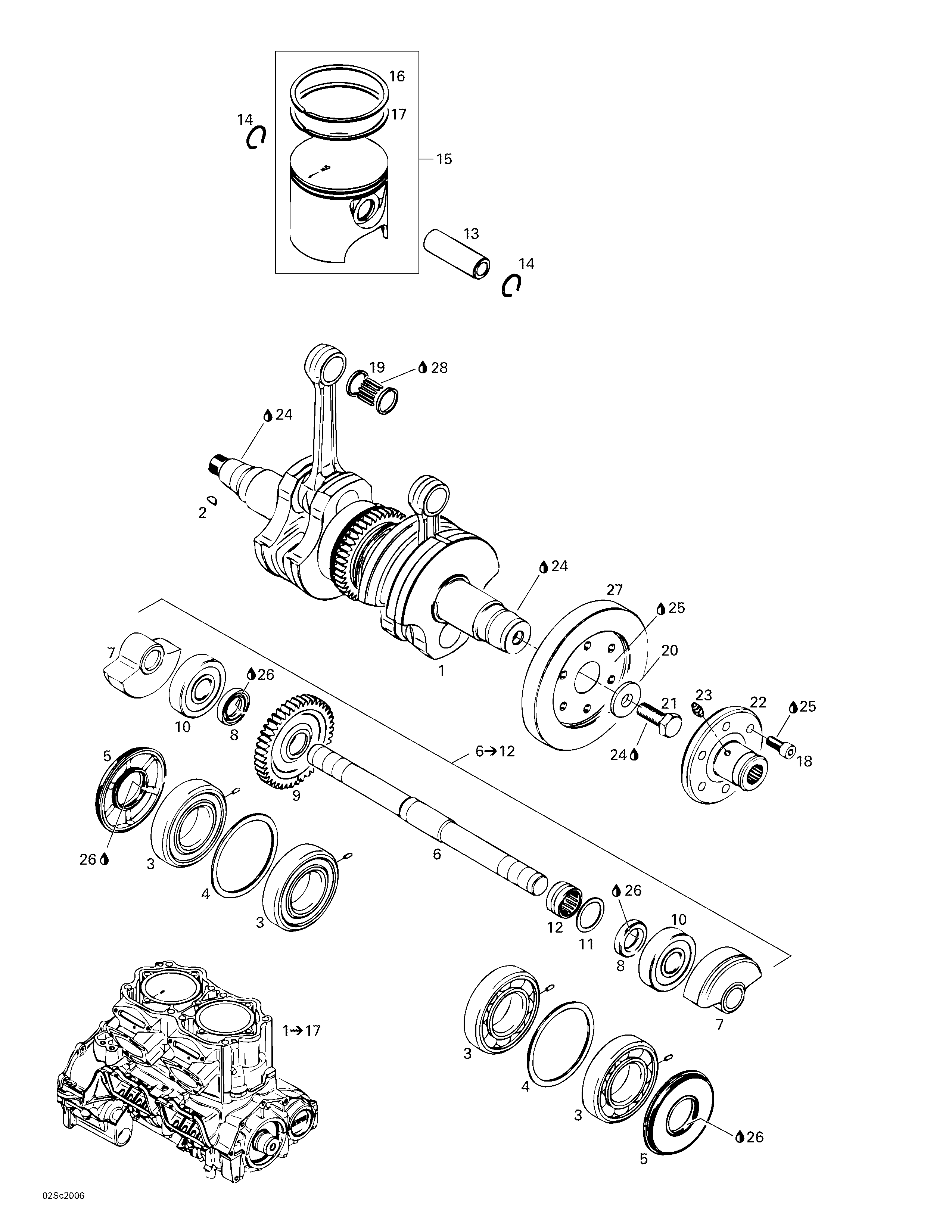

01- Crankshaft And Pistons для BRP GTX, 5653/5669/5544/5545 - 2000
-
№АртикулНазвание
-
1290094702 Short Block Ass'y. Includes 1 - 17.Short Block Ass'y. Includes 1 - 17.
-
1290887762 Crankshaft Ass'y. Includes 1 - 5.Crankshaft Ass'y. Includes 1 - 5.
-
2420246055 Woodruff KeyWoodruff Key
-
3420432271 Ball Bearing 6208 Ass'yBall Bearing 6208 Ass'y
-
4420926190 WasherWasher
-
5290931731 Oil SealOil Seal
-
6290837387 Shaft Balance Ass'y. Includes 6 - 12.Shaft Balance Ass'y. Includes 6 - 12.
-
10290932098 Ball Bearing 6304Ball Bearing 6304
-
11420927192 WasherWasher
-
12290232555 Needle BearingNeedle Bearing
-
13290916395 Piston PinPiston Pin
-
14290845465 CirclipCirclip
-
15290888570 Piston with 2 Rings, 87.91 mm. Includes 15 - 17.Piston with 2 Rings, 87.91 mm. Includes 15 - 17.
-
290888571 Piston Oversize, 2 Rings, 88.16 mmPiston Oversize, 2 Rings, 88.16 mm
-
16290815175 Semi-Trapez Ring 88.00 mm (Silver)Semi-Trapez Ring 88.00 mm (Silver)
-
290815176 Semi-Trapez Ring 88.25 mm (Silver)Semi-Trapez Ring 88.25 mm (Silver)
-
17290815192 Semi-Trapez Ring 88.00 mm (Grey)Semi-Trapez Ring 88.00 mm (Grey)
-
290815193 Semi-Trapez Ring 88.25 mm (Grey)Semi-Trapez Ring 88.25 mm (Grey)
-
18205082060 Socket Head Screw M8 x 20Socket Head Screw M8 x 20
-
19290832550 Needle BearingNeedle Bearing
-
20290827782 WasherWasher
-
21290640120 Hex. Screw M12 x 30Hex. Screw M12 x 30
-
22290958122 Coupling Flange Ass'y. Includes 22 - 23.Coupling Flange Ass'y. Includes 22 - 23.
-
23290499113 Grease FittingGrease Fitting
-
24293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
25413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
26413707000 Molykote 111Molykote 111
-
27290958082 CouplingCoupling
-
28413802900 Injection Oil (12 x 1 Liter)Injection Oil (12 x 1 Liter)
-
29290888131 Engine Gasket Set (Not Shown). .Engine Gasket Set (Not Shown). .
-
30290888136 Cylinder Gasket Set (Not Shown). .Cylinder Gasket Set (Not Shown). .
