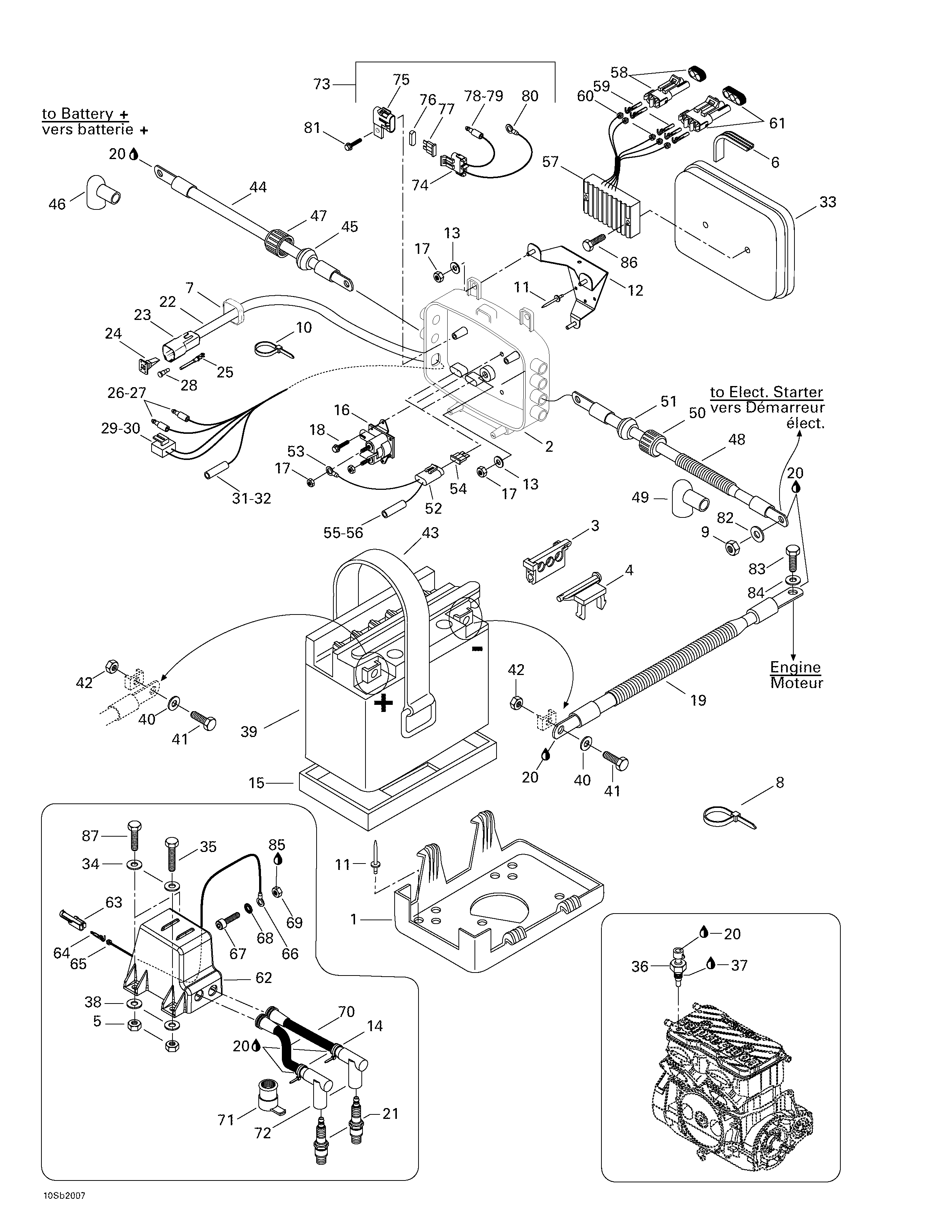

10- Electrical Box And Battery для BRP GTX RFI, 5648/5658/5515/5516 - 2000

‹-+›
  • №
    Артикул
    Название
  • 1
    278001430 Battery Support
    Battery Support
  • 2
    278001425 Electrical Box Base
    Electrical Box Base
  • 3
    278000245 3 Wire Support
    3 Wire Support
  • 4
    278001096 Collar Support
    Collar Support
  • 5
    232561600 Nut M6
    Nut M6
  • 6
    278001173 Gasket
    Gasket
  • 7
    293200030 Gasket
    Gasket
  • 8
    293750002 Tie Rap 130 mm
    Tie Rap 130 mm
  • 293750008 Tie Rap 350 mm
    Tie Rap 350 mm
  • 9
    232561600 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 10
    293750001 Tie Rap 94 mm
    Tie Rap 94 mm
  • 11
    293150037 Rivet
    Rivet
  • 12
    278001487 Box Support Ass'y
    Box Support Ass'y
  • 13
    234062600 Flat Washer 6 mm
    Flat Washer 6 mm
  • 14
    293750002 Tie Rap 130 mm
    Tie Rap 130 mm
  • 15
    278001234 Battery Lower Pad
    Battery Lower Pad
  • 16
    278001376 Starter Relay
    Starter Relay
  • 17
    232561600 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 18
    210261040 Self Tapping Screw M6 x 10
    Self Tapping Screw M6 x 10
  • 19
    278001010 Ground Cable
    Ground Cable
  • 20
    293550004 Dielectric Grease, 150g
    Dielectric Grease, 150g
  • 21
    278000609 Spark Plug (NGK BR8-ES)
    Spark Plug (NGK BR8-ES)
  • 22
    278000945 Rear Electric Box Harness. Includes 22 - 32.
    Rear Electric Box Harness. Includes 22 - 32.
  • 23
    270000137 Female Housing (6 Circuits)
    Female Housing (6 Circuits)
  • 24
    278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)
    (Female) Secondary Lock (6 Circuits) (Deutsch)
  • 25
    278000631 Male Terminal
    Male Terminal
  • 26
    278000230 Male Terminal
    Male Terminal
  • 27
    278001008 Insulating Sheath (Male Terminal)
    Insulating Sheath (Male Terminal)
  • 28
    293000052 Sealing Cap
    Sealing Cap
  • 29
    278001113 Male Housing (2 Circuits)
    Male Housing (2 Circuits)
  • 30
    278001114 Female Terminal
    Female Terminal
  • 31
    278001009 Female Terminal(AMP)
    Female Terminal(AMP)
  • 32
    278001007 Insulating Sheath
    Insulating Sheath
  • 33
    278001432 Electrical Box Cover
    Electrical Box Cover
  • 34
    234061600 Flat Washer 6 mm
    Flat Washer 6 mm
  • 35
    207064060 Hex. Screw M6 x 40
    Hex. Screw M6 x 40
  • 36
    278001016 Temperature Sensor
    Temperature Sensor
  • 37
    293800038 Loctite 518, 50 ml
    Loctite 518, 50 ml
  • 38
    234062600 Flat Washer 6mm
    Flat Washer 6mm
  • 39
    278000712 Battery
    Battery
  • 40
    211200018 Flat Washer 6 mm
    Flat Washer 6 mm
  • 41
    211000045 Hex. Screw
    Hex. Screw
  • 42
    211100022 Nut M6
    Nut M6
  • 43
    293850021 Strap
    Strap
  • 44
    278001274 Battery Cable (Red). Includes 44 - 47.
    Battery Cable (Red). Includes 44 - 47.
  • 45
    278000098 Grommet (1 Circuit) (Black)
    Grommet (1 Circuit) (Black)
  • 46
    278000020 Protector Cap
    Protector Cap
  • 47
    278000100 Electrical Box Cap
    Electrical Box Cap
  • 48
    278001140 Startor Cable (Red). Includes 48 - 51.
    Startor Cable (Red). Includes 48 - 51.
  • 49
    278000020 Protector Cap
    Protector Cap
  • 50
    278000100 Electrical Box Cap
    Electrical Box Cap
  • 51
    278000098 Grommet (1 Circuit) (Black)
    Grommet (1 Circuit) (Black)
  • 52
    278001142 Harness Fuse 20 Amp. Includes 52 - 56.
    Harness Fuse 20 Amp. Includes 52 - 56.
  • 53
    278000300 Open Barrel
    Open Barrel
  • 54
    278001143 20 Amp. Fuse
    20 Amp. Fuse
  • 55
    278001009 Female Terminal
    Female Terminal
  • 56
    278001007 Insulating Sheath (Simple)
    Insulating Sheath (Simple)
  • 57
    278001554 Rectifier Ass'y. Includes 57 - 61.
    Rectifier Ass'y. Includes 57 - 61.
  • 58
    278000220 Male Housing (2 Circuits)
    Male Housing (2 Circuits)
  • 59
    409007300 Female Terminal
    Female Terminal
  • 60
    278000218 Wire Seal (16-18 Gauge) (Green)
    Wire Seal (16-18 Gauge) (Green)
  • 61
    278000273 Male Housing (3 Circuits)
    Male Housing (3 Circuits)
  • 62
    278001545 Ignition Coil ass'y. Includes 62 - 70.
    Ignition Coil ass'y. Includes 62 - 70.
  • 62
    278001546 Ignition Coil
    Ignition Coil
  • 63
    278000161 Female Housing (1 Circuit)
    Female Housing (1 Circuit)
  • 64
    409004300 Male Terminal (16 Gauge)
    Male Terminal (16 Gauge)
  • 65
    278000218 Wire Seal (16-18 Gauge) (Green)
    Wire Seal (16-18 Gauge) (Green)
  • 66
    409003200 Open Barrel
    Open Barrel
  • 67
    205062044 Allen Screw M6 x 20
    Allen Screw M6 x 20
  • 68
    394001900 Lock Washer
    Lock Washer
  • 69
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 70
    278001464 Spark Plug Wire (270 mm)
    Spark Plug Wire (270 mm)
  • 278001465 Spark Plug Wire (320 mm)
    Spark Plug Wire (320 mm)
  • 71
    278001380 Protector Cap
    Protector Cap
  • 72
    278000237 Spark Plug Cap
    Spark Plug Cap
  • 73
    278001384 Harness Fuse. Includes 73 - 80.
    Harness Fuse. Includes 73 - 80.
  • 74
    278001325 Fuse Holder
    Fuse Holder
  • 75
    278001326 Fuse Holder Cap
    Fuse Holder Cap
  • 76
    278000805 Cushion
    Cushion
  • 77
    409012800 Fuse 1A
    Fuse 1A
  • 78
    278000230 Male Terminal
    Male Terminal
  • 79
    278001008 Insulating Sheath
    Insulating Sheath
  • 80
    278000300 Open Barrel
    Open Barrel
  • 81
    211000037 Self Taping Screw
    Self Taping Screw
  • 82
    234061600 Flat Washer 6 mm
    Flat Washer 6 mm
  • 83
    207382560 Screw Hex. M8 x 25 (Scotch Grip)
    Screw Hex. M8 x 25 (Scotch Grip)
  • 84
    234081600 Flat Washer 8 mm
    Flat Washer 8 mm
  • 85
    293800005 Loctite 271, 10 ml
    Loctite 271, 10 ml
  • 86
    211000106 Screw Hex. M6 x 16
    Screw Hex. M6 x 16
  • 87
    207063060 Hex. Screw M6 x 30
    Hex. Screw M6 x 30
