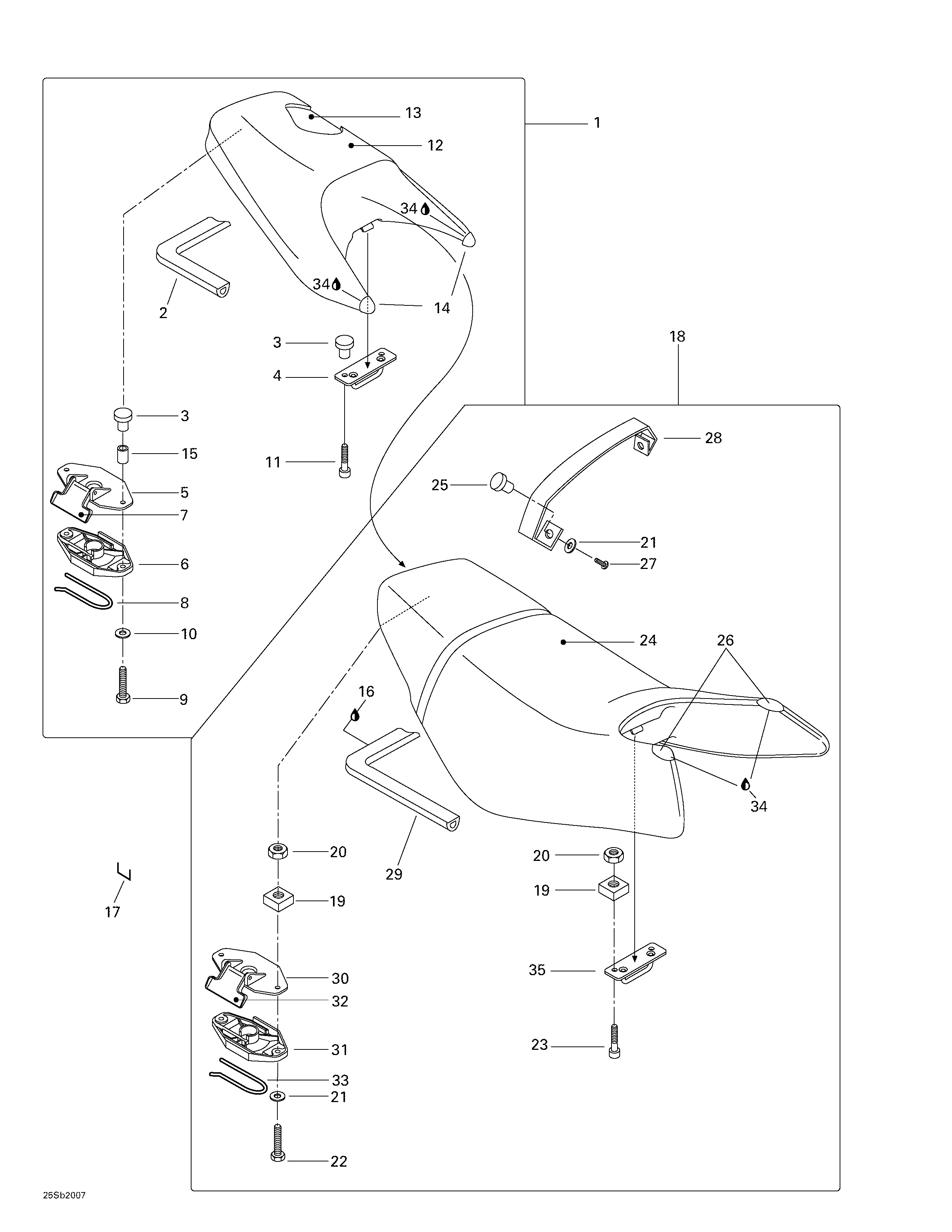

09- Seat And Engine Cover для BRP GTX RFI, 5648/5658/5515/5516 - 2000

  • №
    Артикул
    Название
  • 1
    269000599 Rear Seat Ass'y. Includes 1 - 15. GTX RFI 5648/5658 (GOLD).
    Rear Seat Ass'y. Includes 1 - 15. GTX RFI 5648/5658 (GOLD).
  • 269000663 Rear Seat Ass'y. GTX RFI 5515/5516 (COZUMEL).
    Rear Seat Ass'y. GTX RFI 5515/5516 (COZUMEL).
  • 2
    293200017 Neoprene Seal (Meter)
    Neoprene Seal (Meter)
  • 3
    293100003 Nut M6
    Nut M6
  • 4
    291001357 Base Hook
    Base Hook
  • 5
    269700020 Latch Cover
    Latch Cover
  • 6
    269000015 Latch Base
    Latch Base
  • 7
    269000016 Latch Lever
    Latch Lever
  • 8
    269700017 Spring
    Spring
  • 9
    207363560 Hex. Screw M6 x 35 (Scotch Grip)
    Hex. Screw M6 x 35 (Scotch Grip)
  • 10
    234061600 Flat Washer 6 mm
    Flat Washer 6 mm
  • 11
    205561660 Socket Head Screw M6 x 16 (Scotch Grip)
    Socket Head Screw M6 x 16 (Scotch Grip)
  • 12
    269000602 Rear Seat Cover. GTX RFI 5648/5658 (GOLD).
    Rear Seat Cover. GTX RFI 5648/5658 (GOLD).
  • 269000664 Rear Seat Cover. GTX RFI 5515/5516 (COZUMEL).
    Rear Seat Cover. GTX RFI 5515/5516 (COZUMEL).
  • 14
    269000604 R.H. Rear Seat Corner. GTX RFI 5648/5658 (GOLD).
    R.H. Rear Seat Corner. GTX RFI 5648/5658 (GOLD).
  • 269000665 R.H. Rear Seat Corner. GTX RFI 5515/5516 (COZUMEL).
    R.H. Rear Seat Corner. GTX RFI 5515/5516 (COZUMEL).
  • 269000605 LH Rear Seat Corner. GTX RFI 5648/5658 (GOLD).
    LH Rear Seat Corner. GTX RFI 5648/5658 (GOLD).
  • 269000666 LH Rear Seat Corner. GTX RFI 5515/5516 (COZUMEL).
    LH Rear Seat Corner. GTX RFI 5515/5516 (COZUMEL).
  • 15
    291000532 Spacer
    Spacer
  • 16
    293800048 Loctite 401, 1 oz
    Loctite 401, 1 oz
  • 17
    293730005 Staple (Monelle)
    Staple (Monelle)
  • 18
    269000606 Front Seat Ass'y. Includes 18 - 33. GTX RFI 5648/5658 (GOLD).
    Front Seat Ass'y. Includes 18 - 33. GTX RFI 5648/5658 (GOLD).
  • 269000667 Front Seat Ass'y. GTX RFI 5515/5516 (COZUMEL).
    Front Seat Ass'y. GTX RFI 5515/5516 (COZUMEL).
  • 19
    269500252 Nut Housing Ass'y. Includes 19 - 20.
    Nut Housing Ass'y. Includes 19 - 20.
  • 20
    232061600 Hex. Nut M6
    Hex. Nut M6
  • 21
    234061600 Flat Washer 6 mm
    Flat Washer 6 mm
  • 22
    207363060 Hex. Screw M6 x 30 (Scotch Grip)
    Hex. Screw M6 x 30 (Scotch Grip)
  • 23
    205562060 Socket Head Screw M6 x 20 (Scotch Grip)
    Socket Head Screw M6 x 20 (Scotch Grip)
  • 24
    269000608 Front Seat Cover (Gold). GTX RFI 5648/5658 (GOLD).
    Front Seat Cover (Gold). GTX RFI 5648/5658 (GOLD).
  • 269000668 Front Seat Cover (Cozumel). GTX RFI 5515/5516 (COZUMEL).
    Front Seat Cover (Cozumel). GTX RFI 5515/5516 (COZUMEL).
  • 25
    293100003 Nut M6
    Nut M6
  • 26
    269000611 Seat Corner. GTX RFI 5648/5658 (GOLD).
    Seat Corner. GTX RFI 5648/5658 (GOLD).
  • 269000645 Seat Corner. GTX RFI 5515/5516 (COZUMEL).
    Seat Corner. GTX RFI 5515/5516 (COZUMEL).
  • 27
    207361660 Hex. Screw M6 x 16 (Scotch Grip)
    Hex. Screw M6 x 16 (Scotch Grip)
  • 28
    269000610 Seat Strap (Gold). GTX RFI 5648/5658 (GOLD).
    Seat Strap (Gold). GTX RFI 5648/5658 (GOLD).
  • 269000669 Seat Strap (Cozumel). GTX RFI 5515/5516 (COZUMEL).
    Seat Strap (Cozumel). GTX RFI 5515/5516 (COZUMEL).
  • 29
    293200017 Neoprene Seal (Meter)
    Neoprene Seal (Meter)
  • 30
    269700020 Latch Cover
    Latch Cover
  • 31
    269000015 Latch Base
    Latch Base
  • 32
    269000016 Latch Lever
    Latch Lever
  • 33
    269700017 Spring
    Spring
  • 34
    413705800 Loctite 414, 29.5 cc
    Loctite 414, 29.5 cc
  • 35
    291001357 Base Hook
    Base Hook
