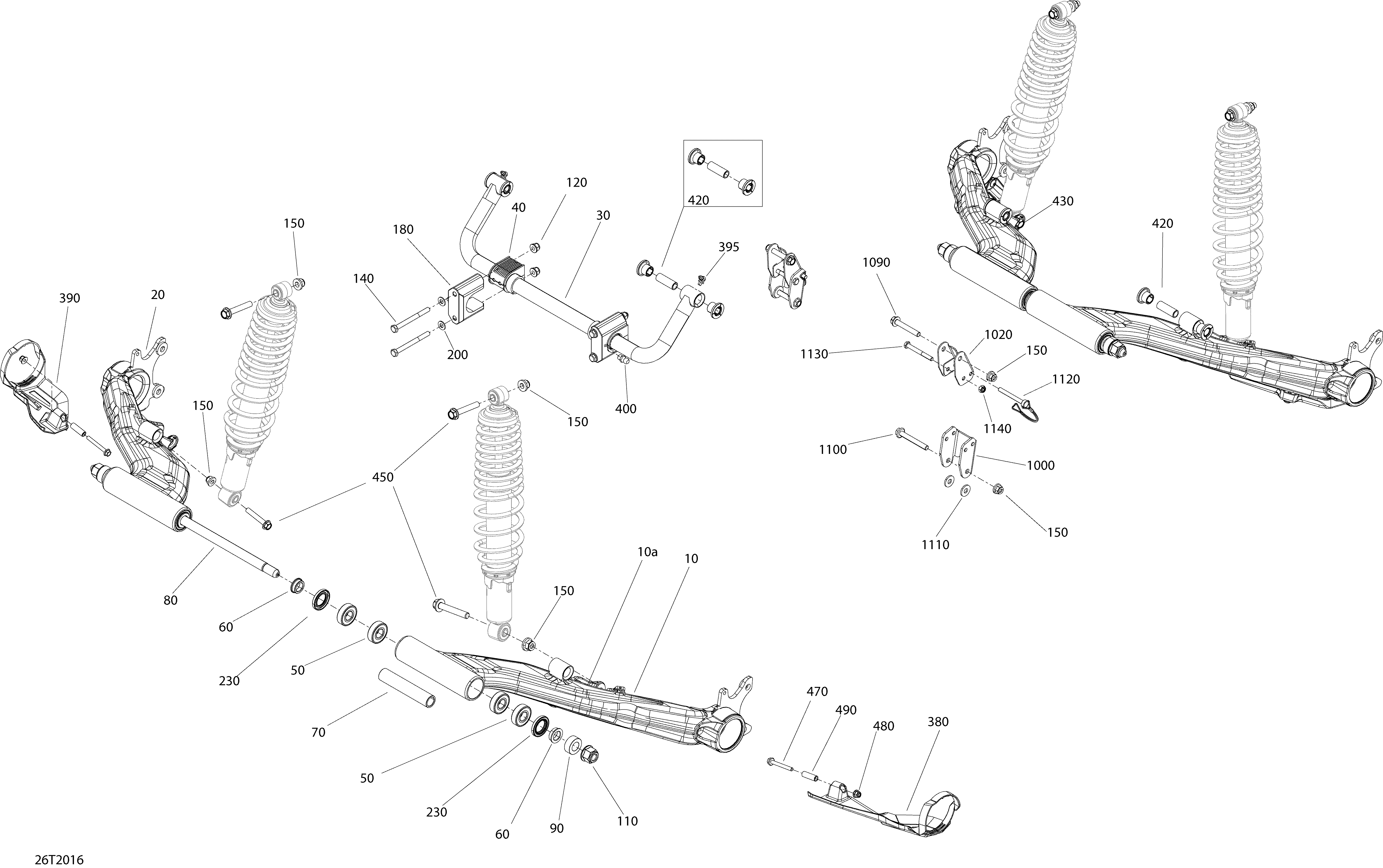

08- Rear Suspension для BRP 004 - Outlander T MAX 6X6 - 450 EFI - T Regulation - 2020

  • №
    Артикул
    Название
  • 10
    706003471 Black LH Swing Arm
    Black LH Swing Arm
  • 10a
    706001646 Black, LH Swing Arm
    Black, LH Swing Arm
  • 20
    706001647 Black, RH Swing Arm
    Black, RH Swing Arm
  • 30
    706001678 Sway Bar
    Sway Bar
  • 40
    706002246 Cushion
    Cushion
  • 50
    706003749 Ball Bearing
    Ball Bearing
  • 60
    706001282 Spacer
    Spacer
  • 70
    706002258 Spacer
    Spacer
  • 80
    706001664 Axial Pivot M16
    Axial Pivot M16
  • 90
    250200112 Flat Washer M17
    Flat Washer M17
  • 110
    233211466 Hex. Flanged Elastic Nut M16
    Hex. Flanged Elastic Nut M16
  • 120
    233281434 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 140
    250001035 Hex,. Screw M8 X 85
    Hex,. Screw M8 X 85
  • 150
    233201416 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 180
    706001099 Bushing Holder
    Bushing Holder
  • 200
    234081430 Flat Washer M8
    Flat Washer M8
  • 230
    293200144 Seal
    Seal
  • 380
    706002482 LH Protector
    LH Protector
  • 390
    706002483 RH Protector
    RH Protector
  • 395
    293550056 Grease Fitting 90°
    Grease Fitting 90°
  • 400
    250000315 Grease Fitting
    Grease Fitting
  • 420
    703500875 Bushing Kit
    Bushing Kit
  • 430
    703500875 Bushing Kit
    Bushing Kit
  • 450
    207606046 Hex. Flanged Screw M10 X 60
    Hex. Flanged Screw M10 X 60
  • 470
    207665044 Hex. Flanged Screw M6 X 50
    Hex. Flanged Screw M6 X 50
  • 480
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 490
    707001376 Bushing
    Bushing
  • 1000
    706003107 Linkage Outer Part
    Linkage Outer Part
  • 1020
    706003109 Linkage Inner Part
    Linkage Inner Part
  • 1090
    207606536 Hex. Flanged Screw M10 X 65
    Hex. Flanged Screw M10 X 65
  • 1100
    207607587 Flanged Hex. Screw M10 X 75
    Flanged Hex. Screw M10 X 75
  • 1110
    505073634 Washer
    Washer
  • 1120
    706001602 Pin Onto The Shaft
    Pin Onto The Shaft
  • 1130
    207087044 Hex. Screw M8 X 70
    Hex. Screw M8 X 70
  • 1140
    232581414 Hex. Elastic Stop Nut M8
    Hex. Elastic Stop Nut M8
