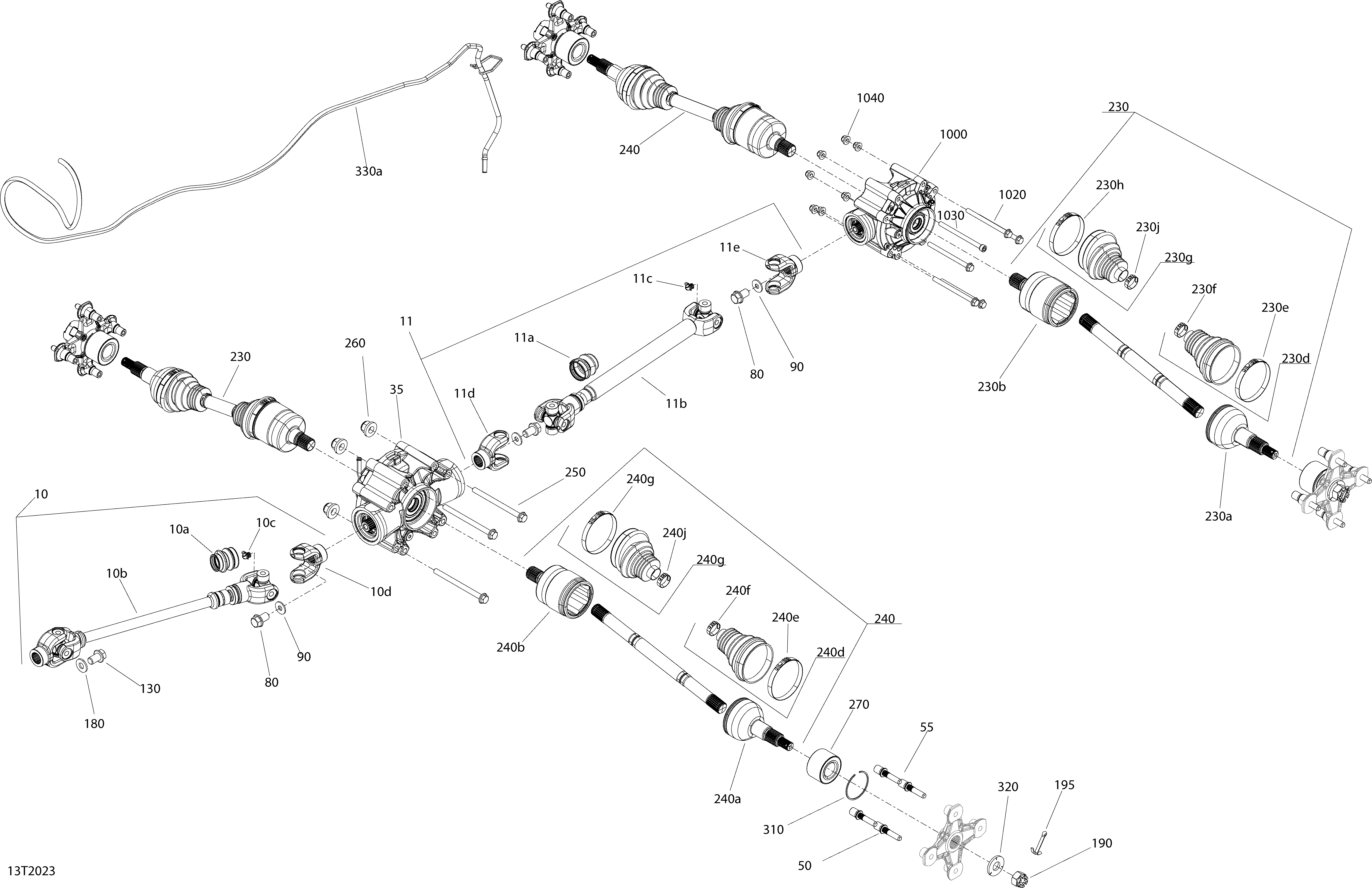

08- Rear Drive для BRP 004 - Outlander T MAX 6X6 - 450 EFI - T Regulation - 2020

  • №
    Артикул
    Название
  • 10
    703500933 Rear Propeller Shaft Ass'y Kit
    Rear Propeller Shaft Ass'y Kit
  • 10a
    715900118 Rubber Boot
    Rubber Boot
  • 10b
    703500846 Universal Joint Ass'y. Includes 10b to 10c
    Universal Joint Ass'y. Includes 10b to 10c
  • 10c
    715900295 Grease Fitting
    Grease Fitting
  • 10d
    715900439 Fixe Yoke
    Fixe Yoke
  • 10e
    705400036 Wear Ring. not shown
    Wear Ring. not shown
  • 11
    703500987 Shaft Ass'y Kit. Includes 11 to 11f
    Shaft Ass'y Kit. Includes 11 to 11f
  • 11a
    715900118 Rubber Boot
    Rubber Boot
  • 11b
    715900326 Universal Joint. Includes 11b to 11c
    Universal Joint. Includes 11b to 11c
  • 11c
    715900295 Grease Fitting
    Grease Fitting
  • 11d
    715900438 Yoke
    Yoke
  • 11e
    715900500 Yoke
    Yoke
  • 11f
    705501123 Protector. not shown
    Protector. not shown
  • 35
    705502369 Middle Drive Unit Ass'y
    Middle Drive Unit Ass'y
  • 40
    705500504 Fill Level Plug. not shown
    Fill Level Plug. not shown
  • 45
    705500506 Copper Washer. not shown
    Copper Washer. not shown
  • 50
    705501900 Wheel Hub
    Wheel Hub
  • 55
    250300048 Wheel Stud
    Wheel Stud
  • 80
    250001044 Screw-Hex.Flange M10 X 16 S.GRIP
    Screw-Hex.Flange M10 X 16 S.GRIP
  • 90
    250200014 Flat Washer M10
    Flat Washer M10
  • 130
    250001039 Hex Flanged Screw M12 X 16
    Hex Flanged Screw M12 X 16
  • 180
    250200005 Conical Spring Washer M12
    Conical Spring Washer M12
  • 190
    250100047 Hex. Castellated Nut M18
    Hex. Castellated Nut M18
  • 195
    250400071 Cotter Pin
    Cotter Pin
  • 230
    705501897 RH Half Shaft Ass'y. Includes 230 to 230j
    RH Half Shaft Ass'y. Includes 230 to 230j
  • 230a
    705401344 CV Joint
    CV Joint
  • 230b
    715900304 Plunging Joint
    Plunging Joint
  • 230c
    705501781 Circlip. not shown
    Circlip. not shown
  • 230d
    705401345 Boot Kit, Wheel Side. Includes 230d to 230f
    Boot Kit, Wheel Side. Includes 230d to 230f
  • 230e
    715900282 Oetiker Clamp, Large
    Oetiker Clamp, Large
  • 230f
    715900283 Oetiker Clamp, Small
    Oetiker Clamp, Small
  • 230g
    705401346 Boot Kit, Differential Side. Includes 230g to 230j
    Boot Kit, Differential Side. Includes 230g to 230j
  • 230h
    715900284 Oetiker Clamp, Large
    Oetiker Clamp, Large
  • 230j
    715900261 Oetiker Clamp, Small
    Oetiker Clamp, Small
  • 240
    705501898 LH Half Shaft Ass'y. Includes 240 to 240j
    LH Half Shaft Ass'y. Includes 240 to 240j
  • 240a
    705401344 CV Joint
    CV Joint
  • 240b
    715900304 Plunging Joint
    Plunging Joint
  • 240c
    705501781 Circlip. not shown
    Circlip. not shown
  • 240d
    705401345 Boot Kit, Wheel Side. Includes 240d to 240f
    Boot Kit, Wheel Side. Includes 240d to 240f
  • 240e
    715900282 Oetiker Clamp, Large
    Oetiker Clamp, Large
  • 240f
    715900283 Oetiker Clamp, Small
    Oetiker Clamp, Small
  • 240g
    705401346 Boot Kit, Differential Side. Includes 240g to 240j
    Boot Kit, Differential Side. Includes 240g to 240j
  • 240h
    715900284 Oetiker Clamp, Large
    Oetiker Clamp, Large
  • 240j
    715900261 Oetiker Clamp, Small
    Oetiker Clamp, Small
  • 250
    250001041 Hex. Flanged Screw M10 X 135
    Hex. Flanged Screw M10 X 135
  • 260
    233201436 Flanged Elastic Nut M10
    Flanged Elastic Nut M10
  • 270
    293350118 Cone Bearing
    Cone Bearing
  • 310
    293370019 Circlip
    Circlip
  • 320
    250200171 Conical Spring Washer M18
    Conical Spring Washer M18
  • 330a
    293830193 Polyurethane Hose
    Polyurethane Hose
  • 1000
    705502370 Rear Drive Unit Ass'y. Includes 1000 to 1000u
    Rear Drive Unit Ass'y. Includes 1000 to 1000u
  • 1010
    705502741 Screw Hex. Flanged M10x145. not shown
    Screw Hex. Flanged M10x145. not shown
  • 1020
    250000508 Hex. Flanged Screw M10 x 135
    Hex. Flanged Screw M10 x 135
  • 1030
    231003587 Screw-socket Hd.din.912
    Screw-socket Hd.din.912
  • 1040
    233201436 Flanged Elastic Nut M10
    Flanged Elastic Nut M10
  • 1060
    232500416 Elastic Stop Nut M10. not shown
    Elastic Stop Nut M10. not shown
  • 1070
    293650042 Oetiker Clamp. not shown
    Oetiker Clamp. not shown
  • 1080
    705400352 Rubber Bellow. not shown
    Rubber Bellow. not shown
