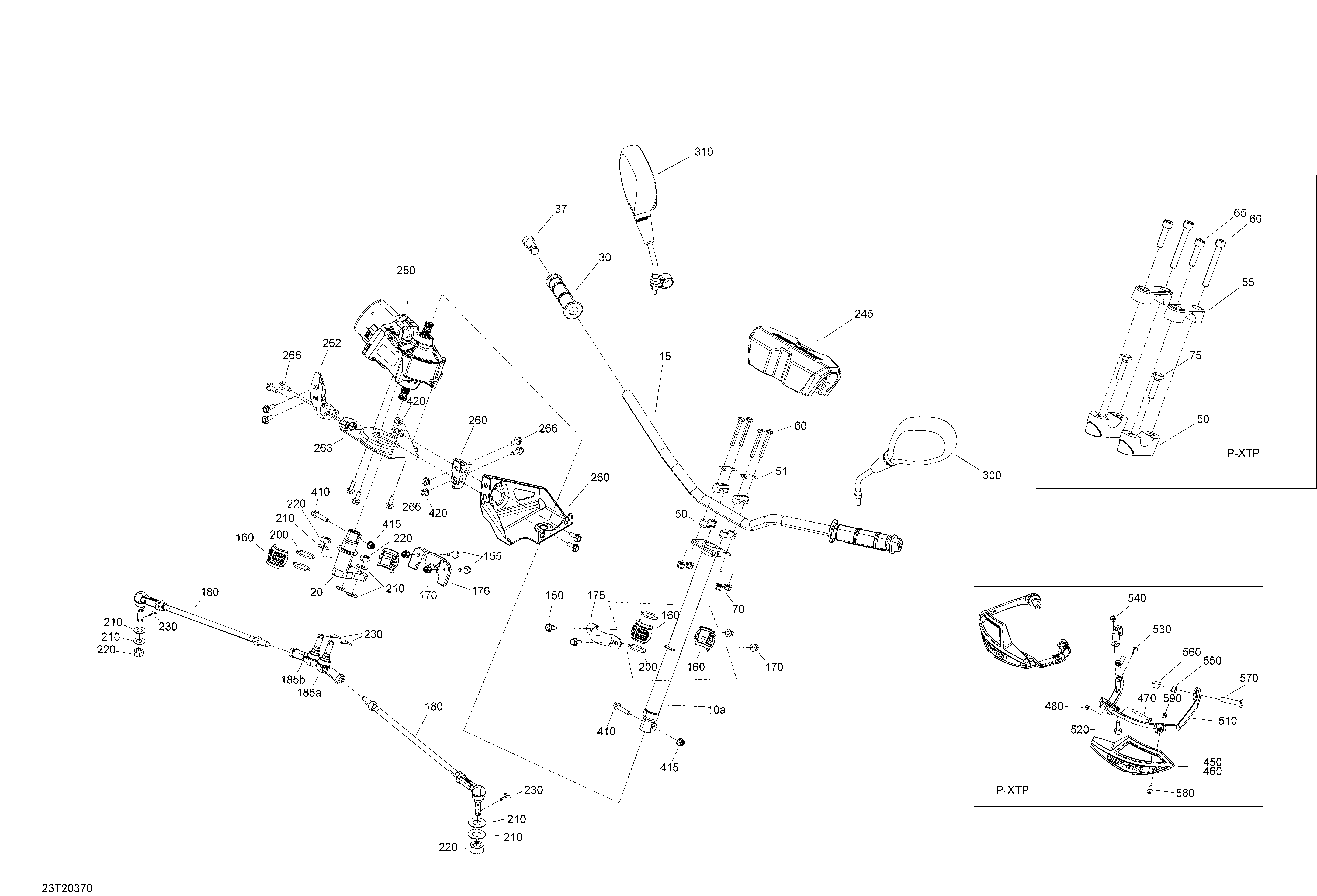

07- Steering для BRP 005 - Outlander T MAX 1000 EFI - XTP - T Regulation - 2020

  • №
    Артикул
    Название
  • 10a
    709401750 Black, Upper Main Tube
    Black, Upper Main Tube
  • 15
    709401240 Black, Handle Bar
    Black, Handle Bar
  • 15
    709402292 Handlebar Anodized
    Handlebar Anodized
  • 20
    709401748 Pitman Arm
    Pitman Arm
  • 30
    709400493 Handle Grip
    Handle Grip
  • 37
    709400449 End Piece
    End Piece
  • 50
    709401799 Steering Support
    Steering Support
  • 50
    709400497 Steering Support
    Steering Support
  • 51
    709400509 Stiffner
    Stiffner
  • 55
    709400496 Support
    Support
  • 60
    207086046 Hex. Screw M8 X 60
    Hex. Screw M8 X 60
  • 60
    205086060 Socket Head Screw M8 X 60
    Socket Head Screw M8 X 60
  • 65
    205083060 Socket Screw M8 X 30
    Socket Screw M8 X 30
  • 70
    233281416 Hex. Elastic Flanged Nut M8
    Hex. Elastic Flanged Nut M8
  • 75
    207183060 Hex. Screw M8 X 30
    Hex. Screw M8 X 30
  • 150
    207682044 Hex. Flanged Screw M8 X 20
    Hex. Flanged Screw M8 X 20
  • 155
    207682544 Hex. Flanged Screw M8 X 25
    Hex. Flanged Screw M8 X 25
  • 160
    709400783 Spherical Half Bushing
    Spherical Half Bushing
  • 170
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 175
    709400827 Upper Column Attachment
    Upper Column Attachment
  • 176
    709401428 Column Attachment
    Column Attachment
  • 180
    703501039 Tie-Rod Ass`y. Includes 180 to 180a
    Tie-Rod Ass`y. Includes 180 to 180a
  • 185a
    709402303 LH Ball Joint
    LH Ball Joint
  • 185b
    709402302 RH Ball Joint
    RH Ball Joint
  • 180
    703501039 Tie-Rod Ass`y. Includes 180 to 180b
    Tie-Rod Ass`y. Includes 180 to 180b
  • 185a
    709402303 LH Ball Joint
    LH Ball Joint
  • 185b
    709402302 RH Ball Joint
    RH Ball Joint
  • 200
    293300068 O-Ring
    O-Ring
  • 210
    250200086 Flat Washer
    Flat Washer
  • 220
    250100099 Nut M12
    Nut M12
  • 230
    211400013 Cotter Pin
    Cotter Pin
  • 245
    709402327 Steering Cover
    Steering Cover
  • 250
    709402230 Power Steering
    Power Steering
  • 260
    709402192 Power Steering Module Bracket
    Power Steering Module Bracket
  • 262
    709402185 RH Bracket
    RH Bracket
  • 263
    709401743 Power Steering Support
    Power Steering Support
  • 266
    207582044 Hex. Flanged Screw M8 X 20, Scotch Grip
    Hex. Flanged Screw M8 X 20, Scotch Grip
  • 300
    709400406 LH Mirror
    LH Mirror
  • 310
    709400407 RH Mirror
    RH Mirror
  • 410
    250000986 Hex. Flanged Screw M8 X 35
    Hex. Flanged Screw M8 X 35
  • 415
    233281416 Hex. Elastic Flanged Nut M8
    Hex. Elastic Flanged Nut M8
  • 420
    233081416 Hex. Flanged Nut M8
    Hex. Flanged Nut M8
  • 450
    709401303 RH Air Deflector
    RH Air Deflector
  • 460
    709401304 LH Air Deflector
    LH Air Deflector
  • 470
    205444056 Socket Head Screw M4 X 40
    Socket Head Screw M4 X 40
  • 480
    232541414 Elastic Stop Nut M4
    Elastic Stop Nut M4
  • 510
    715001378 Air Deflector Support Kit
    Air Deflector Support Kit
  • 510
    715001378 Air Deflector Support Kit
    Air Deflector Support Kit
  • 510
    715001378 Air Deflector Support Kit
    Air Deflector Support Kit
  • 520
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 530
    250000717 Torx Head Screw M6 X 16
    Torx Head Screw M6 X 16
  • 540
    232561600 Hex. Elastic Stop Nut M6
    Hex. Elastic Stop Nut M6
  • 550
    709400161 Bracket Small
    Bracket Small
  • 560
    709400162 Bracket Large
    Bracket Large
  • 570
    205384034 Socket Head Screw
    Socket Head Screw
  • 580
    250000145 Torx Screw M5 X 14
    Torx Screw M5 X 14
  • 590
    232551600 Hex. Elastic Nut M5
    Hex. Elastic Nut M5
