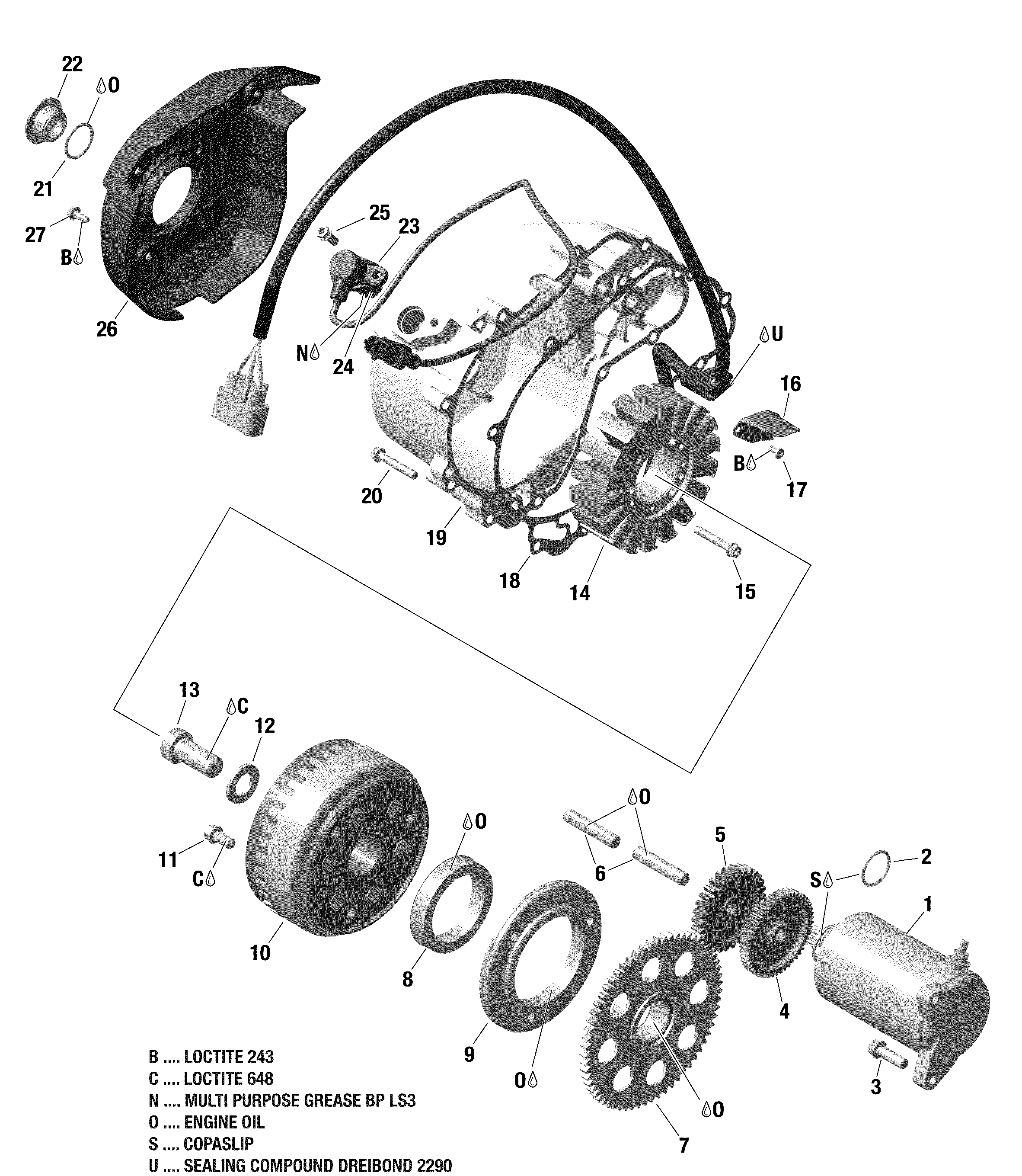

03- Magneto And Electric Starter для BRP 005 - Outlander T MAX 1000 EFI - XTP - T Regulation - 2020

  • №
    Артикул
    Название
  • 1>2
    420684562 Starter Ass'y
    Starter Ass'y
  • 2
    420250140 O-Ring
    O-Ring
  • 3
    420440372 Flanged Torx Screw M8 X 25
    Flanged Torx Screw M8 X 25
  • 4
    420634741 Double Gear
    Double Gear
  • 5
    420634605 Gear 30T
    Gear 30T
  • 6
    420229302 Location Pin
    Location Pin
  • 7
    420434235 Free Wheel Gear, 64 Teeth
    Free Wheel Gear, 64 Teeth
  • 8
    420659111 Sprag Clutch
    Sprag Clutch
  • 9
    420659261 Sprag Clutch Housing
    Sprag Clutch Housing
  • 10
    420685701 Flywheel, 650W. 6X6 XT, 6X6 North
    Flywheel, 650W. 6X6 XT, 6X6 North
  • 10
    420685704 Flywheel, 650W. XXC, XTP, 6X6 Pronordic
    Flywheel, 650W. XXC, XTP, 6X6 Pronordic
  • 11
    420440852 Flanged Torx Screw M8 X 16
    Flanged Torx Screw M8 X 16
  • 12
    420627270 Shim
    Shim
  • 13
    420241549 Socket Head Screw M16 X 35
    Socket Head Screw M16 X 35
  • 14
    420685634 Stator Plate, 650W
    Stator Plate, 650W
  • 15
    420440274 Flanged Torx Screw M6 X 35
    Flanged Torx Screw M6 X 35
  • 16
    420251880 Cable Inner Cover
    Cable Inner Cover
  • 17
    420240195 Tapping Screw M4 X 8
    Tapping Screw M4 X 8
  • 18
    420651201 Gasket
    Gasket
  • 19
    420212222 Ignition Cover
    Ignition Cover
  • 20
    420440274 Flanged Torx Screw M6 X 35
    Flanged Torx Screw M6 X 35
  • 21
    420430782 O-Ring
    O-Ring
  • 22
    420241630 Screw Plug
    Screw Plug
  • 23
    420966570 Crankshaft Position Sensor Ass'y
    Crankshaft Position Sensor Ass'y
  • 24
    420431580 O-Ring
    O-Ring
  • 25
    420440162 Flanged Torx Screw M6 X 16
    Flanged Torx Screw M6 X 16
  • 26
    420201390 Cover
    Cover
  • 27
    420941935 Taptite Screw M5 x 12
    Taptite Screw M5 x 12
