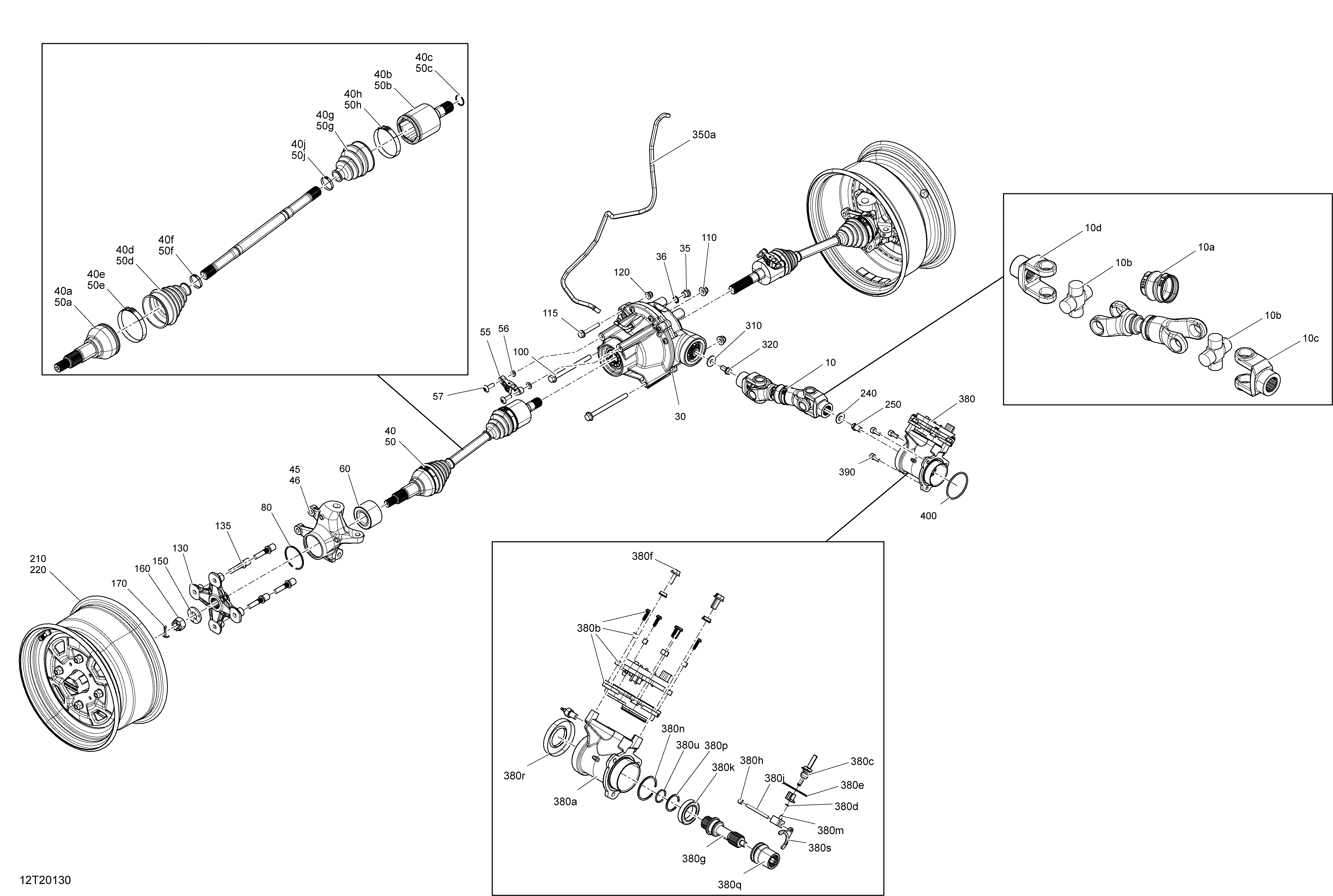

07- Front Drive - Common Parts для BRP 004 - Outlander T MAX 450 EFI - DPS - T Regulation - 2020

  • №
    Артикул
    Название
  • 10
    705402065 Front Drive Axle Ass'y
    Front Drive Axle Ass'y
  • 10a
    715900118 Rubber Boot
    Rubber Boot
  • 10b
    715900435 U-Joint Cross Kit
    U-Joint Cross Kit
  • 10c
    715900497 Fixed Yoke Joint
    Fixed Yoke Joint
  • 10d
    715900498 Yoke Joint
    Yoke Joint
  • 30
    705402020 Front Differential. Includes 30 to 30x
    Front Differential. Includes 30 to 30x
  • 35
    705500504 Fill Level Plug
    Fill Level Plug
  • 36
    705500506 Copper Washer
    Copper Washer
  • 40
    705402021 RH Homocinetic Joint
    RH Homocinetic Joint
  • 40a
    705401344 CV Joint
    CV Joint
  • 40b
    715900602 RH Plunging Joint
    RH Plunging Joint
  • 40c
    705401349 Circlip Joint
    Circlip Joint
  • 40d
    705401345 Boot Kit, Wheel Side. Includes to
    Boot Kit, Wheel Side. Includes to
  • 40e
    715900282 Oetiker Clamp, Large
    Oetiker Clamp, Large
  • 40f
    715900283 Oetiker Clamp, Small
    Oetiker Clamp, Small
  • 40g
    705401346 Boot Kit, Différential Side. Includes to
    Boot Kit, Différential Side. Includes to
  • 40h
    715900284 Oetiker Clamp, Large
    Oetiker Clamp, Large
  • 40j
    715900261 Oetiker Clamp, Small
    Oetiker Clamp, Small
  • 45
    705401290 LH Knuckle
    LH Knuckle
  • 46
    705401291 RH Knuckle
    RH Knuckle
  • 50
    705402022 LH Homocinetic Joint
    LH Homocinetic Joint
  • 50a
    705401344 CV Joint
    CV Joint
  • 50b
    715900603 LH Plunging Joint
    LH Plunging Joint
  • 50c
    705401349 Circlip Joint
    Circlip Joint
  • 50d
    705401345 Boot Kit, Wheel Side. Includes to
    Boot Kit, Wheel Side. Includes to
  • 50e
    715900282 Oetiker Clamp, Large
    Oetiker Clamp, Large
  • 50f
    715900283 Oetiker Clamp, Small
    Oetiker Clamp, Small
  • 50g
    705401346 Boot Kit, Différential Side. Includes to
    Boot Kit, Différential Side. Includes to
  • 50h
    715900284 Oetiker Clamp, Large
    Oetiker Clamp, Large
  • 50j
    715900261 Oetiker Clamp, Small
    Oetiker Clamp, Small
  • 55
    705402088 Sensor Support
    Sensor Support
  • 56
    234081410 Flat Washer 8 mm
    Flat Washer 8 mm
  • 57
    250000874 Torx Truss M8 X 25
    Torx Truss M8 X 25
  • 60
    293350118 Cone Bearing
    Cone Bearing
  • 80
    293370019 Circlip
    Circlip
  • 100
    230602546 Hex. Flanged Screw M10 X 125
    Hex. Flanged Screw M10 X 125
  • 110
    233201416 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 115
    207685544 Hex. Flanged Screw M8 X 55
    Hex. Flanged Screw M8 X 55
  • 120
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 130
    705501716 Wheel Hub Ass'y
    Wheel Hub Ass'y
  • 135
    250300642 Wheel Stud
    Wheel Stud
  • 150
    250200171 Conical Spring Washer M18
    Conical Spring Washer M18
  • 160
    232291413 Hex. Flanged Castellated Nut M18
    Hex. Flanged Castellated Nut M18
  • 170
    250400071 Cotter Pin
    Cotter Pin
  • 240
    250200102 Flat Washer M12
    Flat Washer M12
  • 250
    250001039 Hex Flanged Screw M12 X 16
    Hex Flanged Screw M12 X 16
  • 310
    250200014 Flat Washer M10
    Flat Washer M10
  • 320
    250001046 Hex Flanged Screw M10 X 20 S.GRIP
    Hex Flanged Screw M10 X 20 S.GRIP
  • 350a
    293830193 Polyurethane Hose
    Polyurethane Hose
  • 380a
    705402360 Machined Housing
    Machined Housing
  • 380b
    705402090 Actuator Ass'y. Includes 380b to 380e
    Actuator Ass'y. Includes 380b to 380e
  • 380c
    705400274 Fork
    Fork
  • 380d
    293370042 Circlip
    Circlip
  • 380e
    293300117 O-Ring
    O-Ring
  • 380f
    250000137 Hex. Flanged Screw M8 X 20, Scotch Grip
    Hex. Flanged Screw M8 X 20, Scotch Grip
  • 380g
    705401509 Idler Shaft Gear
    Idler Shaft Gear
  • 380h
    206580890 Pressure Screw M8 X 8
    Pressure Screw M8 X 8
  • 380j
    250400025 Dowell Pin
    Dowell Pin
  • 380k
    705400249 Ball Bearing
    Ball Bearing
  • 380m
    705402139 Slider
    Slider
  • 380n
    293370029 Circlip
    Circlip
  • 380p
    293370030 Circlip
    Circlip
  • 380q
    705400389 Coupling Sleeve
    Coupling Sleeve
  • 380r
    293250348 Oil Seal
    Oil Seal
  • 380s
    705401553 Shifter Lever Plate
    Shifter Lever Plate
  • 380u
    293300179 O-ring
    O-ring
  • 390
    250000136 Socket Head Screw M8 X 20, Scotch Grip
    Socket Head Screw M8 X 20, Scotch Grip
  • 400
    293300091 O-Ring
    O-Ring
