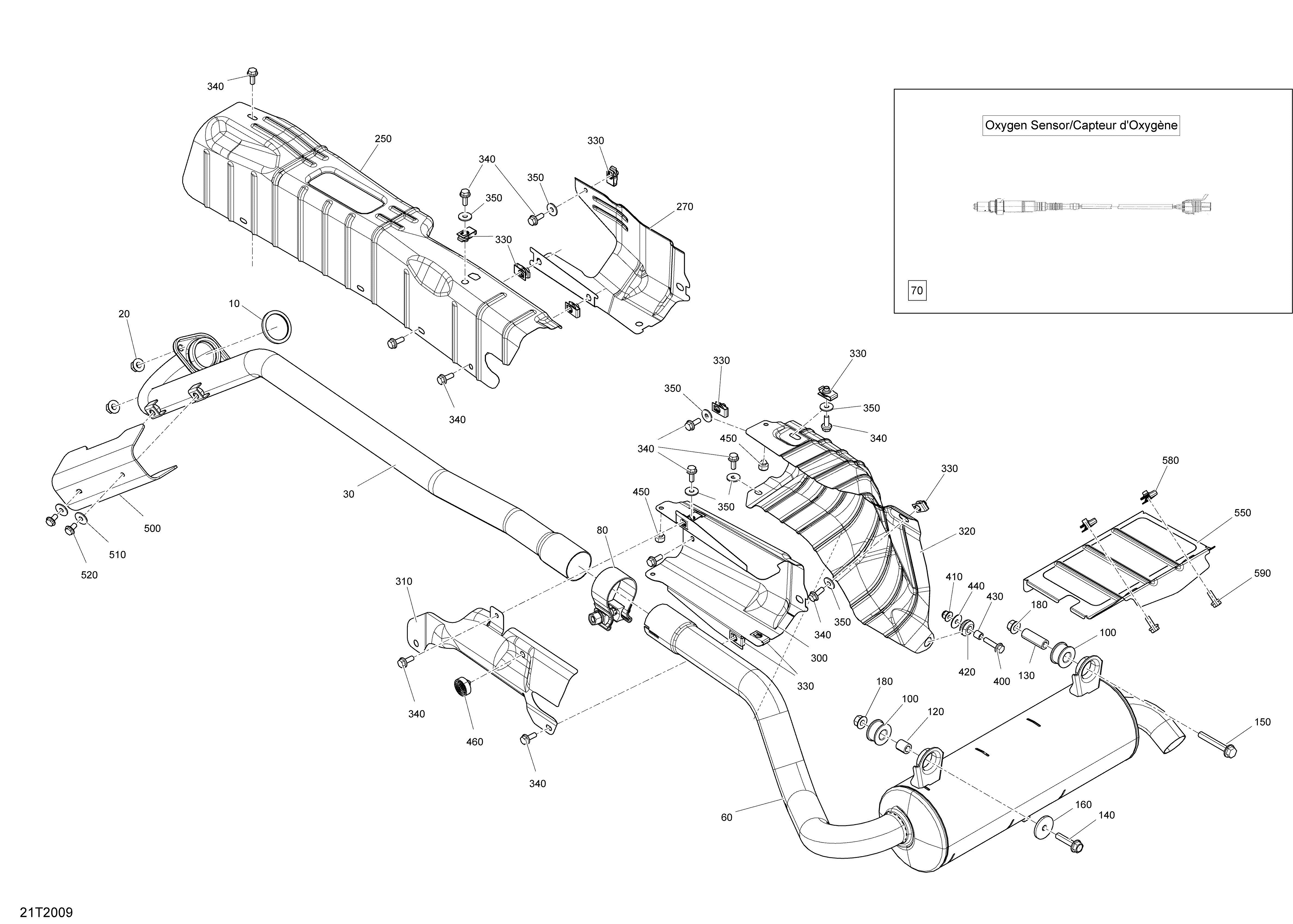

01- Exhaust для BRP 004 - Outlander T MAX 450 EFI - DPS - T Regulation - 2020

  • №
    Артикул
    Название
  • 10
    707600317 Gasket
    Gasket
  • 20
    233081416 Hex. Flanged Nut M8
    Hex. Flanged Nut M8
  • 30
    707601361 Front Head Pipe
    Front Head Pipe
  • 60
    707601392 Exhaust Muffler. Package STD
    Exhaust Muffler. Package STD
  • 60
    707602219 Exhaust Muffler. Packge DPS
    Exhaust Muffler. Packge DPS
  • 70
    707600872 Oxygen Sensor
    Oxygen Sensor
  • 80
    293650228 Exhaust Pipe Clamp
    Exhaust Pipe Clamp
  • 100
    707602775 Anti-Vibration Rubber
    Anti-Vibration Rubber
  • 120
    293900116 Spacer Bushing
    Spacer Bushing
  • 130
    293900115 Bushing
    Bushing
  • 140
    207683544 Hex. Flanged Screw M8 X 35
    Hex. Flanged Screw M8 X 35
  • 150
    207685544 Hex. Flanged Screw M8 X 55
    Hex. Flanged Screw M8 X 55
  • 160
    250200158 Flat Washer M8
    Flat Washer M8
  • 180
    233081416 Hex. Flanged Nut M8
    Hex. Flanged Nut M8
  • 250
    707602603 Protector
    Protector
  • 270
    707601484 Protector
    Protector
  • 300
    707601485 Protector
    Protector
  • 310
    707602604 Heat Shield
    Heat Shield
  • 320
    707601425 Protector
    Protector
  • 330
    250000957 Extruded Panel Nut M6
    Extruded Panel Nut M6
  • 340
    207661644 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 350
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 400
    207662534 Hex. Flanged Screw M6 X 25
    Hex. Flanged Screw M6 X 25
  • 410
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 420
    293720053 Grommet
    Grommet
  • 430
    293900105 Bushing
    Bushing
  • 440
    224060201 Flat Washer
    Flat Washer
  • 450
    293830005 Rubber Bumper
    Rubber Bumper
  • 460
    708000506 Rubber Stopper
    Rubber Stopper
  • 500
    707601457 Heat Shield
    Heat Shield
  • 510
    250200082 Flat Washer
    Flat Washer
  • 520
    250001090 Hex. Flanged Screw M6 X 12 S.Grip
    Hex. Flanged Screw M6 X 12 S.Grip
  • 550
    707601635 Protector
    Protector
  • 580
    250000957 Extruded Panel Nut M6
    Extruded Panel Nut M6
  • 590
    207661644 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
