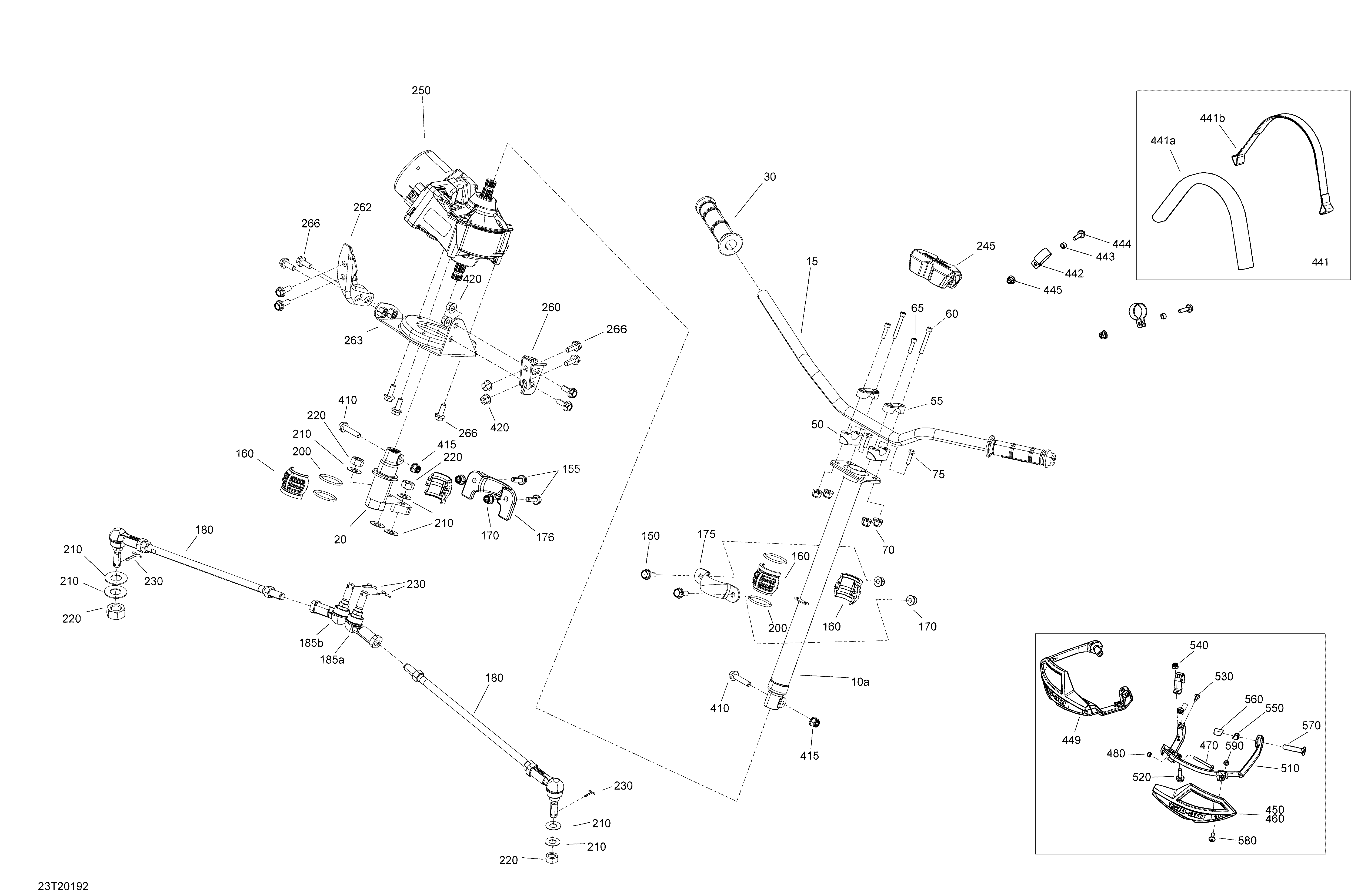

07- Steering для BRP 005 - Renegade 1000R EFI - XMR - International - European Communities - 2020

  • №
    Артикул
    Название
  • 10a
    709401750 Black, Upper Main Tube
    Black, Upper Main Tube
  • 15
    709401530 Manta Green, Handle Bar. Model Mineral Gray Satin. Includes 15 to 15a
    Manta Green, Handle Bar. Model Mineral Gray Satin. Includes 15 to 15a
  • 15
    709400513 Aluminum Handle Bar. Model Mineral Gray Satin
    Aluminum Handle Bar. Model Mineral Gray Satin
  • 20
    709401756 Pitman Arm
    Pitman Arm
  • 30
    709400493 Handle Grip
    Handle Grip
  • 50
    709400497 Steering Support
    Steering Support
  • 55
    709400496 Support
    Support
  • 60
    205086060 Socket Head Screw M8 X 60
    Socket Head Screw M8 X 60
  • 65
    205083060 Socket Screw M8 X 30
    Socket Screw M8 X 30
  • 70
    233281416 Hex. Elastic Flanged Nut M8
    Hex. Elastic Flanged Nut M8
  • 75
    207183060 Hex. Screw M8 X 30
    Hex. Screw M8 X 30
  • 150
    207682044 Hex. Flanged Screw M8 X 20
    Hex. Flanged Screw M8 X 20
  • 155
    207682544 Hex. Flanged Screw M8 X 25
    Hex. Flanged Screw M8 X 25
  • 160
    709400783 Spherical Half Bushing
    Spherical Half Bushing
  • 170
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 175
    709400827 Upper Column Attachment
    Upper Column Attachment
  • 176
    709401428 Column Attachment
    Column Attachment
  • 180
    703501039 Tie-Rod Ass`y. Includes 180 to 180a
    Tie-Rod Ass`y. Includes 180 to 180a
  • 185a
    709402303 LH Ball Joint
    LH Ball Joint
  • 185b
    709402302 RH Ball Joint
    RH Ball Joint
  • 180
    703501039 Tie-Rod Ass`y. Includes 180 to 180b
    Tie-Rod Ass`y. Includes 180 to 180b
  • 185a
    709402303 LH Ball Joint
    LH Ball Joint
  • 185b
    709402302 RH Ball Joint
    RH Ball Joint
  • 200
    293300068 O-Ring
    O-Ring
  • 210
    250200086 Flat Washer
    Flat Washer
  • 220
    250100099 Nut M12
    Nut M12
  • 230
    211400013 Cotter Pin
    Cotter Pin
  • 245
    709402328 Steering Cover
    Steering Cover
  • 250
    709402230 Power Steering
    Power Steering
  • 260
    709402184 LH Power Steering Bracket
    LH Power Steering Bracket
  • 262
    709402185 RH Bracket
    RH Bracket
  • 263
    709401743 Power Steering Support
    Power Steering Support
  • 266
    207582044 Hex. Flanged Screw M8 X 20, Scotch Grip
    Hex. Flanged Screw M8 X 20, Scotch Grip
  • 410
    250000986 Hex. Flanged Screw M8 X 35
    Hex. Flanged Screw M8 X 35
  • 415
    233281416 Hex. Elastic Flanged Nut M8
    Hex. Elastic Flanged Nut M8
  • 420
    233081416 Hex. Flanged Nut M8
    Hex. Flanged Nut M8
  • 441
    506152115 Strap Ass'y. Includes 441 to 441a
    Strap Ass'y. Includes 441 to 441a
  • 441a
    506152115 Strap Ass'y
    Strap Ass'y
  • 441b
    506152115 Strap Ass'y
    Strap Ass'y
  • 442
    709401720 Collar Tube
    Collar Tube
  • 443
    506152156 Bushing
    Bushing
  • 444
    207662054 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 445
    233261466 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 450
    709401303 RH Air Deflector. Model Timeless Black
    RH Air Deflector. Model Timeless Black
  • 450
    709401622 Manta Green, RH Deflector. Model Mineral Gray Satin
    Manta Green, RH Deflector. Model Mineral Gray Satin
  • 460
    709401304 LH Air Deflector. Model Timeless Black
    LH Air Deflector. Model Timeless Black
  • 460
    709401623 Manta Green, LH Deflector. Model Mineral Gray Satin
    Manta Green, LH Deflector. Model Mineral Gray Satin
  • 470
    205444056 Socket Head Screw M4 X 40
    Socket Head Screw M4 X 40
  • 480
    232541414 Elastic Stop Nut M4
    Elastic Stop Nut M4
  • 510
    715001378 Air Deflector Support Kit
    Air Deflector Support Kit
  • 510
    715001378 Air Deflector Support Kit
    Air Deflector Support Kit
  • 510
    715001378 Air Deflector Support Kit
    Air Deflector Support Kit
  • 520
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 530
    250000717 Torx Head Screw M6 X 16
    Torx Head Screw M6 X 16
  • 540
    232561600 Hex. Elastic Stop Nut M6
    Hex. Elastic Stop Nut M6
  • 550
    709400161 Bracket Small
    Bracket Small
  • 560
    709400162 Bracket Large
    Bracket Large
  • 570
    205384034 Socket Head Screw
    Socket Head Screw
  • 580
    250000145 Torx Screw M5 X 14. Model Timeless Black
    Torx Screw M5 X 14. Model Timeless Black
  • 580
    250000742 Torx Screw M5 X 14. Model Mineral Gray Satin
    Torx Screw M5 X 14. Model Mineral Gray Satin
  • 590
    232551600 Hex. Elastic Nut M5
    Hex. Elastic Nut M5
