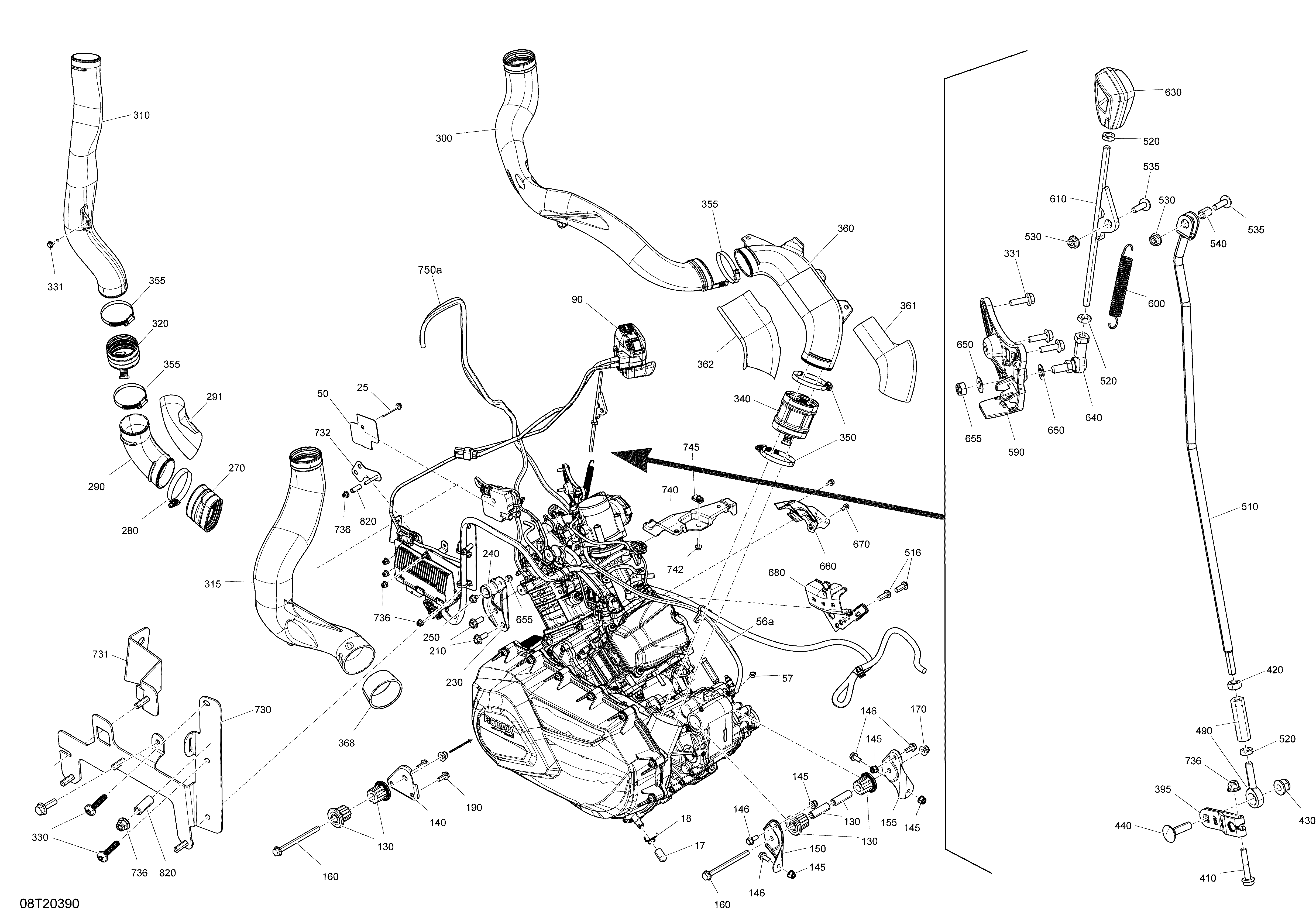

01- Engine - XMR для BRP 005 - Renegade 1000R EFI - XMR - International - European Communities - 2020

  • №
    Артикул
    Название
  • 17
    707001185 Plug
    Plug
  • 18
    707800506 Retainer Clip
    Retainer Clip
  • 25
    207665044 Hex. Flanged Screw M6 X 50
    Hex. Flanged Screw M6 X 50
  • 50
    710000073 Insulator Pad
    Insulator Pad
  • 56a
    293830193 Polyurethane Hose
    Polyurethane Hose
  • 57
    293650044 Clamp, Oetiker
    Clamp, Oetiker
  • 90
    707002272 Throttle Handle
    Throttle Handle
  • 130
    707001169 Damper
    Damper
  • 140
    707000761 RH Front Engine Bracket
    RH Front Engine Bracket
  • 145
    233281416 Hex. Elastic Flanged Nut M8
    Hex. Elastic Flanged Nut M8
  • 146
    207682046 Hex. Flanged Screw M8 X 20
    Hex. Flanged Screw M8 X 20
  • 150
    707001191 LH Rear Engine Bracket
    LH Rear Engine Bracket
  • 155
    707001192 RH Rear Engine Bracket
    RH Rear Engine Bracket
  • 160
    230602546 Hex. Flanged Screw M10 X 125
    Hex. Flanged Screw M10 X 125
  • 170
    233201416 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 190
    207582044 Hex. Flanged Screw M8 X 20, Scotch Grip
    Hex. Flanged Screw M8 X 20, Scotch Grip
  • 210
    207602544 Hex. Flanged Screw M10 X 25
    Hex. Flanged Screw M10 X 25
  • 230
    707000781 Upper Engine Bracket, Black
    Upper Engine Bracket, Black
  • 240
    707000949 Rubber Isolator
    Rubber Isolator
  • 250
    207581046 Flanged Screw M8 x 10, Scotch Grip
    Flanged Screw M8 x 10, Scotch Grip
  • 270
    707002585 Flexibale Adaptor
    Flexibale Adaptor
  • 280
    293650091 Norma Clamp
    Norma Clamp
  • 290
    707001087 CVT Air Inlet
    CVT Air Inlet
  • 291
    707001654 Heat Shield
    Heat Shield
  • 300
    707001780 CVT Air Outlet
    CVT Air Outlet
  • 310
    707001778 CVT Air Inlet
    CVT Air Inlet
  • 315
    707001781 Inferior CVT Air Outlet
    Inferior CVT Air Outlet
  • 320
    707001274 Adaptor
    Adaptor
  • 330
    250000949 Screw PT K60 X 30
    Screw PT K60 X 30
  • 331
    207562034 Hex. Flanged Screw M6 X 20, Scotch Grip
    Hex. Flanged Screw M6 X 20, Scotch Grip
  • 340
    707001168 CVT Air Outlet Adaptor
    CVT Air Outlet Adaptor
  • 350
    293650118 Norma Gear Clamp
    Norma Gear Clamp
  • 355
    293650091 Norma Clamp
    Norma Clamp
  • 360
    706600019 Air Outlet
    Air Outlet
  • 361
    707001205 Heat Shield
    Heat Shield
  • 362
    707001206 Heat Shield
    Heat Shield
  • 368
    707002092 Heat Shield
    Heat Shield
  • 395
    707000911 Lever
    Lever
  • 410
    207663544 Hex. Flanged Screw M6 X 35
    Hex. Flanged Screw M6 X 35
  • 420
    250100144 Hex. Nut M8, Filets GA
    Hex. Nut M8, Filets GA
  • 430
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 440
    207783044 Carriage Bolt M8 X 30
    Carriage Bolt M8 X 30
  • 490
    707000966 Ball Joint Ass'y
    Ball Joint Ass'y
  • 510
    707002068 Shifter Rod
    Shifter Rod
  • 516
    205402556 Screw Socket M10 X 25
    Screw Socket M10 X 25
  • 520
    232180600 Hex. Jam Nut M8
    Hex. Jam Nut M8
  • 530
    233161414 Hex. Flanged Nut M6
    Hex. Flanged Nut M6
  • 535
    250000446 Torx Screw M6 X 20, Scotch Grip
    Torx Screw M6 X 20, Scotch Grip
  • 540
    293900019 Bushing
    Bushing
  • 590
    707002439 Shift Arm Base
    Shift Arm Base
  • 600
    707000577 Spring
    Spring
  • 610
    707000840 Shift Arm
    Shift Arm
  • 630
    707000965 Lever Button
    Lever Button
  • 640
    707001959 RH Ball Joint
    RH Ball Joint
  • 650
    506151252 Washer
    Washer
  • 655
    232581414 Hex. Elastic Stop Nut M8
    Hex. Elastic Stop Nut M8
  • 660
    707000410 Cover OPS
    Cover OPS
  • 670
    210261250 Hex. Flanged Screw M6 X 12
    Hex. Flanged Screw M6 X 12
  • 680
    707001955 Upper Cable Support
    Upper Cable Support
  • 730
    707002355 Welded Support
    Welded Support
  • 731
    707002356 Welded Support
    Welded Support
  • 732
    707002418 CVT Outlet Support
    CVT Outlet Support
  • 736
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 740
    707001262 Air Outlet Support
    Air Outlet Support
  • 742
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 745
    250000957 Extruded Panel Nut M6
    Extruded Panel Nut M6
  • 750a
    293830193 Polyurethane Hose
    Polyurethane Hose
  • 820
    708300736 Spacer
    Spacer
