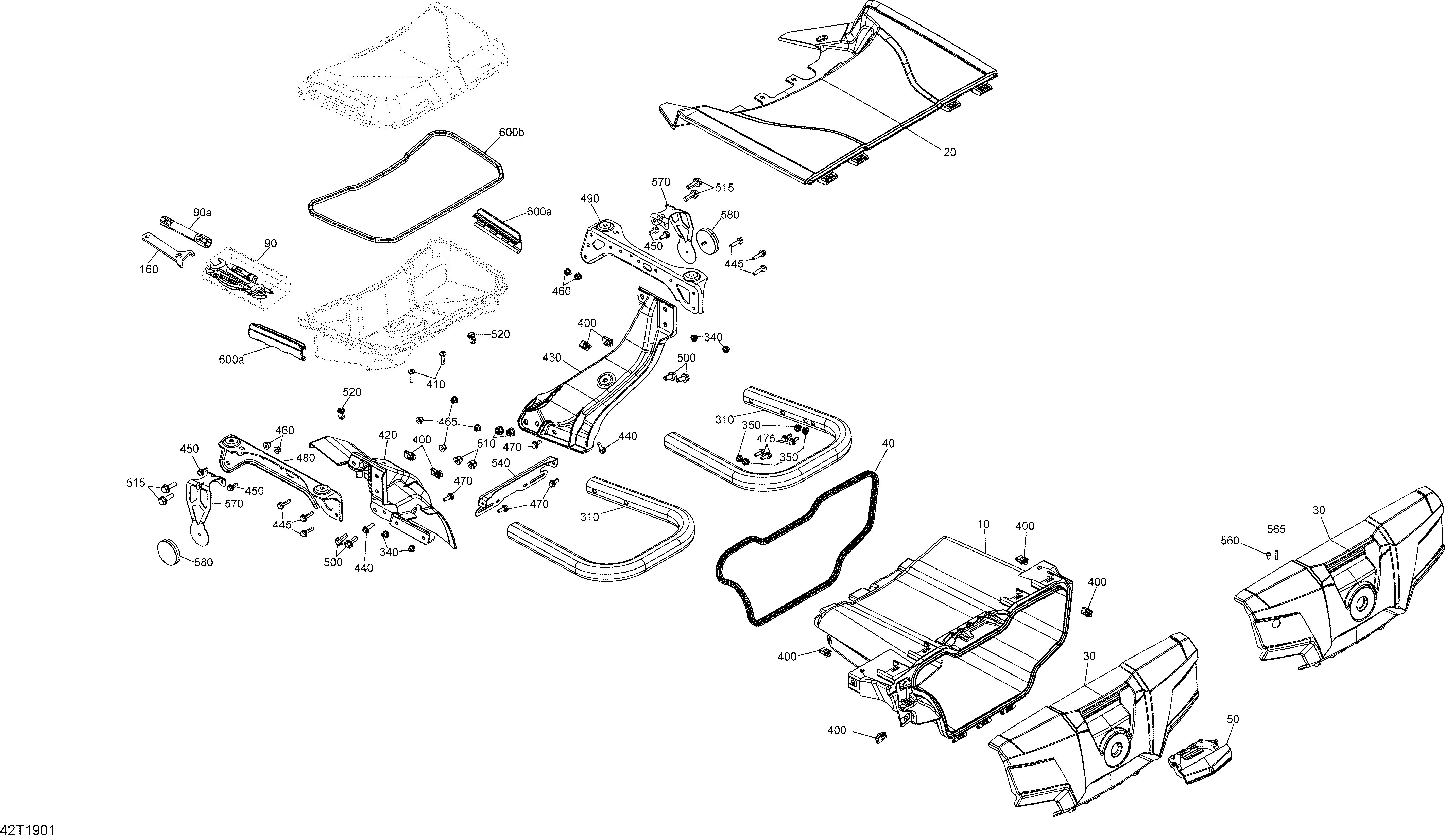

09- Rear Cargo Box - 1000R EFI - Except XMR для BRP 003 - Outlander 1000R EFI - North America - 2019
-
№АртикулНазвание
-
10708300674 Rear Storage BoxRear Storage Box
-
20715005833 Storage Cover KitStorage Cover Kit
-
30708300150 Rear PanelRear Panel
-
35707002102 Heat ShieldHeat Shield
-
36707002294 Heat ShieldHeat Shield
-
37707002295 Heat ShieldHeat Shield
-
38707002296 Heat ShieldHeat Shield
-
39707002297 Heat ShieldHeat Shield
-
40a293200163 Neoprene SealNeoprene Seal
-
50708200272 HandleHandle
-
90704700168 Tool Kit. Includes 90 to 90aTool Kit. Includes 90 to 90a
-
90A529000085 Socket Wrench 14/16MMSocket Wrench 14/16MM
-
160529000035 Adjustement WrenchAdjustement Wrench
-
310715001564 Rear BumperRear Bumper
-
340250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
400250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
410250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
420705006997 LH Cargo SupportLH Cargo Support
-
430705006998 RH Cargo SupportRH Cargo Support
-
440207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
445207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
450207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
460233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
465233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
470207561646 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
480705004563 LH SupportLH Support
-
490705004564 RH SupportRH Support
-
500207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
510233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
515250001016 Hex Flanged Screw M8 X 25 S.GripHex Flanged Screw M8 X 25 S.Grip
-
520293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
540705004806 Plate SupportPlate Support
-
570705202576 Reflector SupportReflector Support
-
580705011221 Red ReflectorRed Reflector
