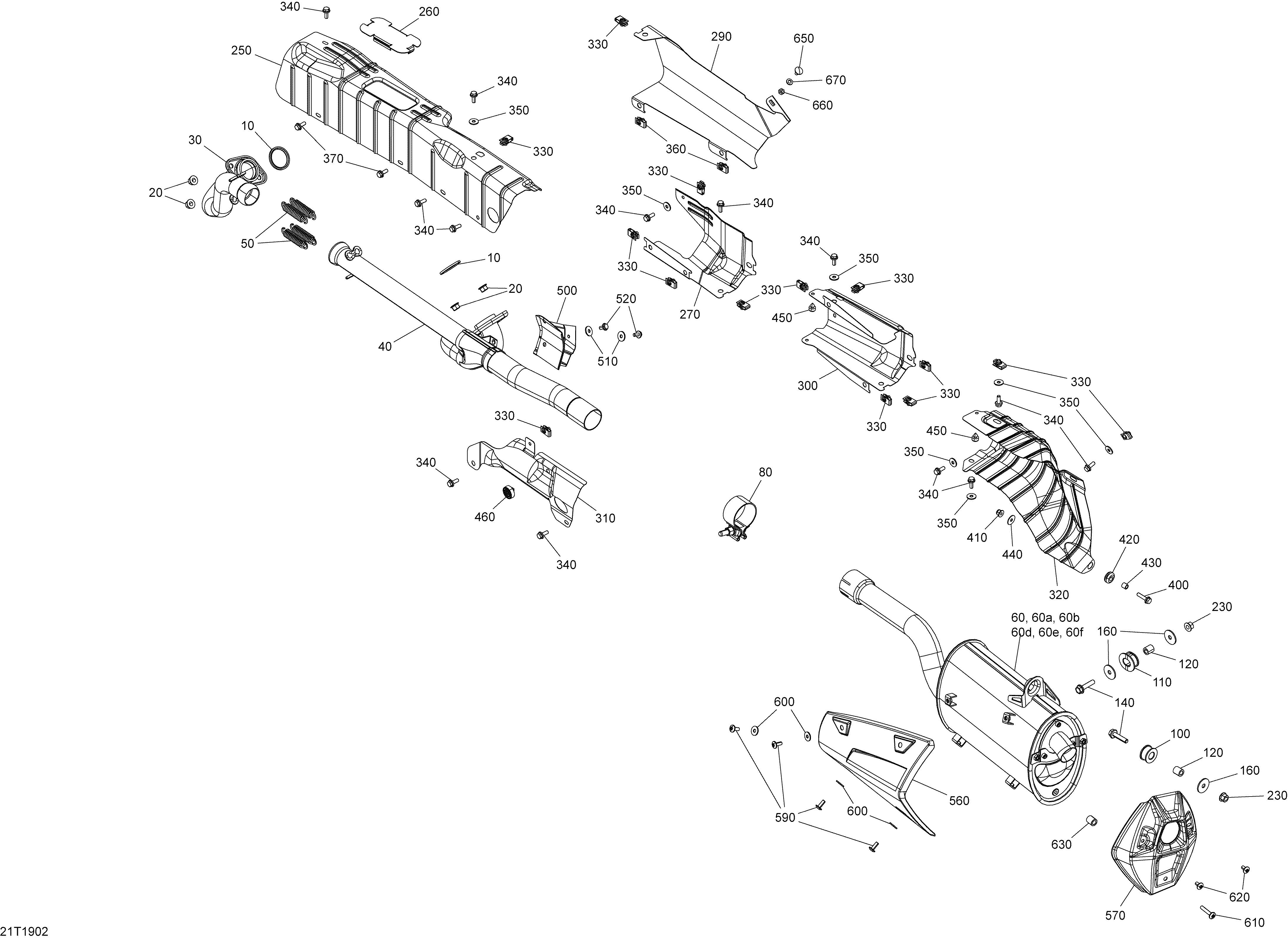

01- Exhaust - 1000R EFI - Except XMR для BRP 003 - Outlander 1000R EFI - North America - 2019

  • №
    Артикул
    Название
  • 10
    707600317 Gasket
    Gasket
  • 20
    233081416 Hex. Flanged Nut M8
    Hex. Flanged Nut M8
  • 30
    707600627 Front Head Pipe
    Front Head Pipe
  • 40
    707601455 Rear Head Pipe
    Rear Head Pipe
  • 50
    415107100 Spring
    Spring
  • 60
    707602220 Exhaust Muffler. NON CARB Vehicle
    Exhaust Muffler. NON CARB Vehicle
  • 60
    707602183 Exhaust Muffler. CARB Vehicle. Includes 60a to 60f
    Exhaust Muffler. CARB Vehicle. Includes 60a to 60f
  • 60a
    715900089 Spark Arrestor. Includes 60a to 60f
    Spark Arrestor. Includes 60a to 60f
  • 60b
    707601799 Gasket
    Gasket
  • 60d
    205062060 Socket Head Screw M6 X 20
    Socket Head Screw M6 X 20
  • 60e
    715900143 Muffler End Piece
    Muffler End Piece
  • 60f
    715900147 Support
    Support
  • 70
    707600872 Oxygen Sensor. CARB Vehicle
    Oxygen Sensor. CARB Vehicle
  • 80
    293650228 Exhaust Pipe Clamp
    Exhaust Pipe Clamp
  • 100
    707600701 Anti-Vibration Rubber
    Anti-Vibration Rubber
  • 110
    707600448 Rubber
    Rubber
  • 120
    293900116 Spacer Bushing
    Spacer Bushing
  • 140
    207683544 Hex. Flanged Screw M8 X 35
    Hex. Flanged Screw M8 X 35
  • 160
    250200158 Flat Washer M8
    Flat Washer M8
  • 180
    233081416 Hex. Flanged Nut M8
    Hex. Flanged Nut M8
  • 250
    707602603 Protector
    Protector
  • 270
    707601484 Protector
    Protector
  • 320
    707601425 Protector
    Protector
  • 330
    250000957 Extruded Panel Nut M6
    Extruded Panel Nut M6
  • 340
    207661644 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 350
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 400
    207662534 Hex. Flanged Screw M6 X 25
    Hex. Flanged Screw M6 X 25
  • 410
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 420
    293720053 Grommet
    Grommet
  • 430
    293900105 Bushing
    Bushing
  • 440
    224060201 Flat Washer
    Flat Washer
  • 450
    293830005 Rubber Bumper
    Rubber Bumper
  • 500
    707600932 Pipe Protector
    Pipe Protector
  • 510
    250200082 Flat Washer
    Flat Washer
  • 520
    250000574 Hex. Flanged Screw M6 X 12
    Hex. Flanged Screw M6 X 12
  • 560
    707600710 Heat Deflector
    Heat Deflector
  • 570
    707601255 Heat Shield End Cap
    Heat Shield End Cap
  • 590
    250000717 Torx Head Screw M6 X 1.0 X 16
    Torx Head Screw M6 X 1.0 X 16
  • 600
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 610
    250000541 Torx Screw M6 X 35
    Torx Screw M6 X 35
  • 620
    250000767 Torx Truss Screw M6 X 12
    Torx Truss Screw M6 X 12
  • 630
    293900106 Bushing
    Bushing
