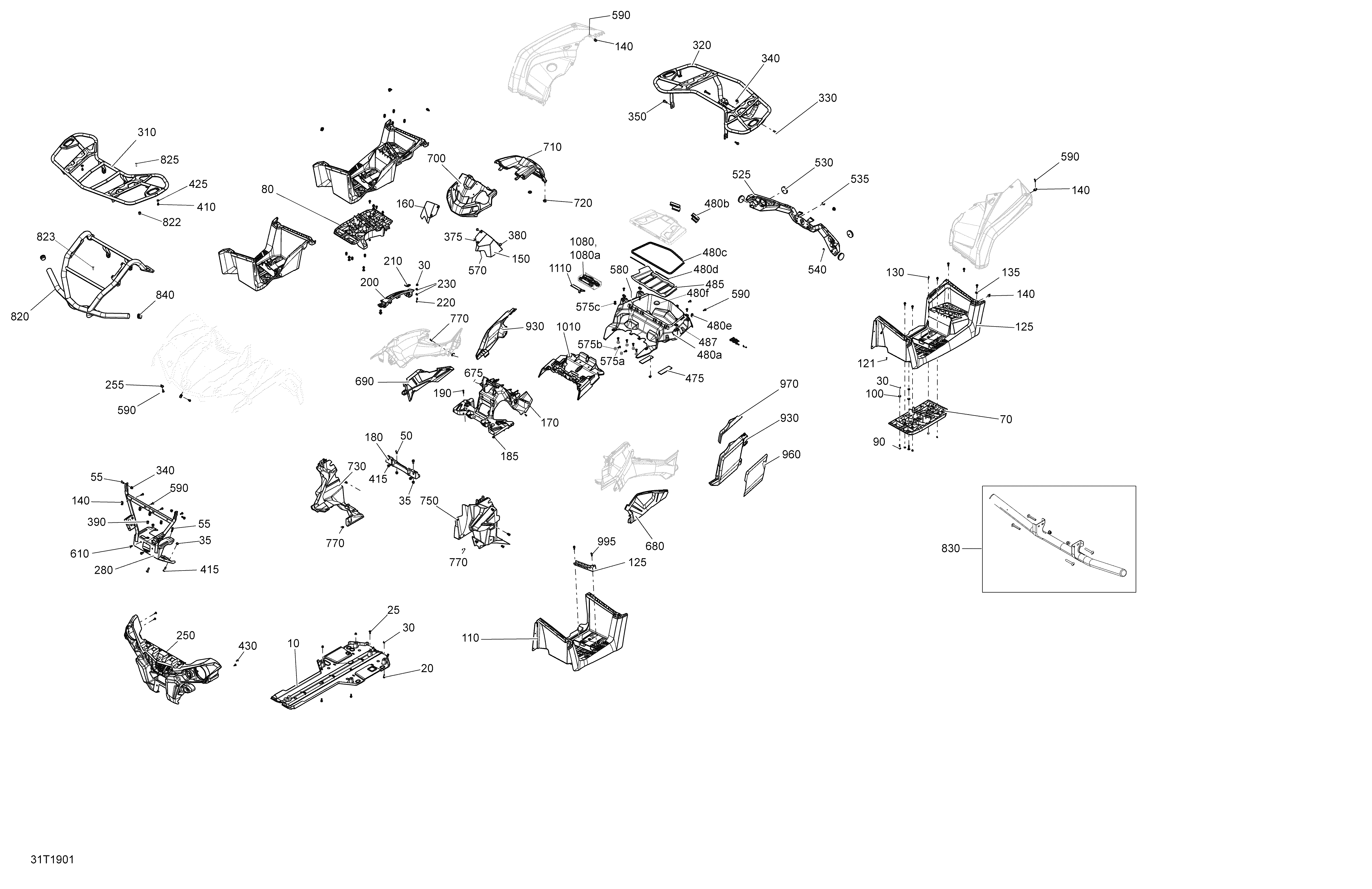

09- Body And Accessories - 450 EFI для BRP 003 - Outlander MAX 450 EFI - North America - 2019
-
№АртикулНазвание
-
10715002374 Protective Plate Kit. Except Package STDProtective Plate Kit. Except Package STD
-
20207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
25207762044 Carriage Bolt M6 X 20. Except Package STDCarriage Bolt M6 X 20. Except Package STD
-
30233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
35233201434 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
50207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
55207582544 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
60233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
70705011540 LH Structural Footboard. Includes 70 to 70aLH Structural Footboard. Includes 70 to 70a
-
70a232862412 Square Nut M6Square Nut M6
-
80705011542 RH Structural Footboard. Includes 80 to 80aRH Structural Footboard. Includes 80 to 80a
-
80a232862412 Square Nut M6Square Nut M6
-
90207763554 Carriage Bolt M6 X 35Carriage Bolt M6 X 35
-
100234062410 Flat Washer 6 mmFlat Washer 6 mm
-
110705003525 LH Footrest, MaxLH Footrest, Max
-
120705007724 RH FootrestRH Footrest
-
130207661654 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
135224061201 Flat WasherFlat Washer
-
140250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
170715003984 Dash Support KitDash Support Kit
-
180705010406 Console Support InsertConsole Support Insert
-
185234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
190241152540 Hex. Flanged Screw K50 X 2.24 X 25Hex. Flanged Screw K50 X 2.24 X 25
-
200715003973 IndicatorIndicator
-
220207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
230224061201 Flat WasherFlat Washer
-
250705009334 Front FaciaFront Facia
-
255250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
280705009256 Front StructureFront Structure
-
310705006887 Black Front Luggage RackBlack Front Luggage Rack
-
320715005986 Black Rear Luggage RackBlack Rear Luggage Rack
-
330250000761 Torx Truss Screw M8 X 50Torx Truss Screw M8 X 50
-
340233281464 Elastic Flange Nut M8Elastic Flange Nut M8
-
350250001016 Hex Flanged Screw M8 X 25 S.GripHex Flanged Screw M8 X 25 S.Grip
-
390293450307 InsertInsert
-
410210261250 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
415207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
420250000886 Torx Screw M8 X 30Torx Screw M8 X 30
-
425234062670 Flat Washer, StainlessFlat Washer, Stainless
-
430250000725 Screw M4 X 16Screw M4 X 16
-
475293830163 Rubber PadRubber Pad
-
480715004412 Storage Cover. Includes 480 to 480hStorage Cover. Includes 480 to 480h
-
480a705007448 LH Box Rear LatchLH Box Rear Latch
-
480b705007921 RH Box Rear Latch. Includes 480b to 480cRH Box Rear Latch. Includes 480b to 480c
-
480c715900411 Neoprene SealNeoprene Seal
-
480d705007531 Retaining RodRetaining Rod
-
480e250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
480f414859400 CapCap
-
480g705007136 Rear BoxRear Box
-
480h715004412 Storage CoverStorage Cover
-
485705007487 Heat Deflector SheetHeat Deflector Sheet
-
487250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
525705005576 Rear FaciaRear Facia
-
530705011221 Red ReflectorRed Reflector
-
535705003666 Rubber GrommetRubber Grommet
-
575a250000841 Screw Hex Flange M6 X 25Screw Hex Flange M6 X 25
-
575b234062670 Flat Washer, StainlessFlat Washer, Stainless
-
575c293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
580250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
590250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
610205003044 Socket Screw M10 x 30. Package XTSocket Screw M10 x 30. Package XT
-
610236282054 Hex. Screw M8 X 20. Except Package XTHex. Screw M8 X 20. Except Package XT
-
675250000723 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
680705004147 LH Extension PannelLH Extension Pannel
-
690705003444 Engine CoverEngine Cover
-
700705007066 Gage SupportGage Support
-
710715005837 Dash KitDash Kit
-
720705003264 GrommetGrommet
-
770293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
820715001910 Front Bumper kit. Package XTFront Bumper kit. Package XT
-
822233281464 Elastic Flange Nut M8Elastic Flange Nut M8
-
823207582544 Hex. Flanged Screw M8 X 25, Scotch Grip. Package XTHex. Flanged Screw M8 X 25, Scotch Grip. Package XT
-
825250000898 Screw Pan Torx M8 X 25Screw Pan Torx M8 X 25
-
830715001911 Rear Bumper kit. Package XTRear Bumper kit. Package XT
-
840705202455 Cap. Package XTCap. Package XT
-
930715001897 LH Extension PanelLH Extension Panel
-
940705004348 RH Extension PanelRH Extension Panel
-
960705006870 Heat ShieldHeat Shield
-
970705006871 Heat ShieldHeat Shield
-
1010705007948 Seat HolderSeat Holder
-
1040219001968 OPERATOR'S GUIDE 2019OPERATOR'S GUIDE 2019
-
1080704700168 Tool Kit. Includes 1080 to 1080aTool Kit. Includes 1080 to 1080a
-
1080a529000085 Socket Wrench 14/16MMSocket Wrench 14/16MM
-
1110529000035 Adjustement WrenchAdjustement Wrench
-
1130219400038 Waranty FormWaranty Form
-
1150219001376 Manual Winch Kit. Package XTManual Winch Kit. Package XT
