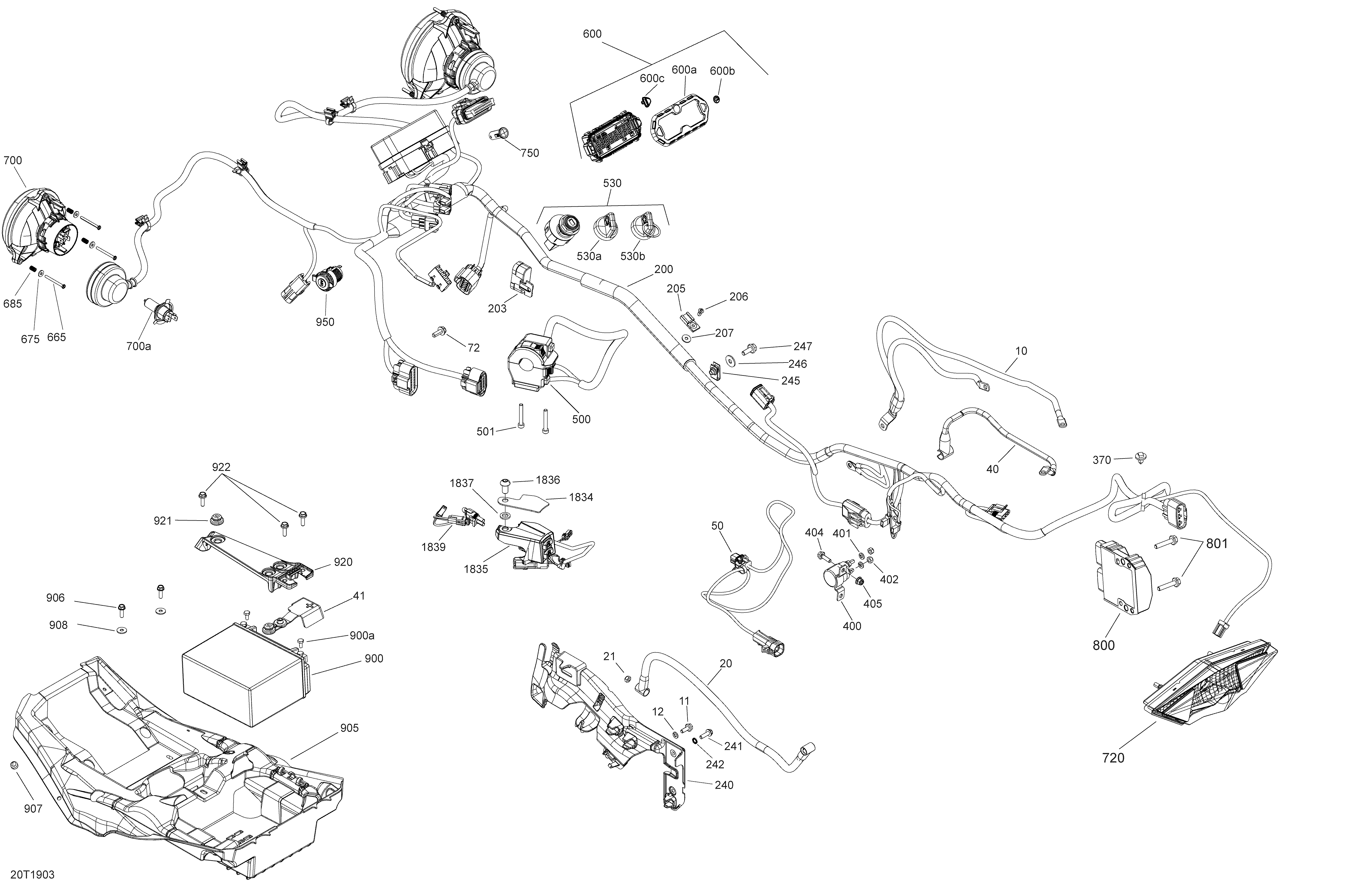

10- Electrical - 450 EFI - Package STD & DPS для BRP 003 - Outlander MAX 450 EFI - North America - 2019
-
№АртикулНазвание
-
10710004380 Ground CableGround Cable
-
11207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
12234161601 Lock Washer Helical M6Lock Washer Helical M6
-
20710004381 Positive CablePositive Cable
-
21232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
40710004376 Positive CablePositive Cable
-
41710002569 CapCap
-
50710005819 Extension Cable 02 SensorExtension Cable 02 Sensor
-
200710006172 Electric Harness. Package DPSElectric Harness. Package DPS
-
200710006173 Harness Ass'y. Package STDHarness Ass'y. Package STD
-
203710005760 DPS Connector Cap. Package STDDPS Connector Cap. Package STD
-
205270000141 ClipClip
-
206390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
207391301600 WasherWasher
-
240707001280 Cable BracketCable Bracket
-
241210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
242234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
245250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
246234062410 Flat Washer 6 mmFlat Washer 6 mm
-
247207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
370293730040 Mount DartMount Dart
-
400710001364 Starter RelayStarter Relay
-
401234161601 Lock Washer Helical M6Lock Washer Helical M6
-
402232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
404207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
405233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
500710005072 Multi-Function HandleMulti-Function Handle
-
501205053588 Socket Head Screw M5 X 35Socket Head Screw M5 X 35
-
530710005153 Ignition Switch With Keys. Includes 530 to 530bIgnition Switch With Keys. Includes 530 to 530b
-
530a715900029 Blank KeyBlank Key
-
530b715900019 Key, groove on left sideKey, groove on left side
-
600710005553 SpeedometerSpeedometer
-
665250000718 Hex. Screw K40 X 45Hex. Screw K40 X 45
-
675517225900 Flat WasherFlat Washer
-
685517168600 SpringSpring
-
700710003900 Low BeamLow Beam
-
720710001203 Tail Light Housing Ass'yTail Light Housing Ass'y
-
750710003910 Pilot Lamp CapPilot Lamp Cap
-
800710001103 Voltage Regulator. Package STDVoltage Regulator. Package STD
-
800710005569 Voltage Regulator. Package DPSVoltage Regulator. Package DPS
-
801207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
900410301203 Battery Ass'y, 18 AmperesBattery Ass'y, 18 Amperes
-
905710005528 Battery SupportBattery Support
-
906210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
907293830005 Rubber BumperRubber Bumper
-
908234062670 Flat Washer, StainlessFlat Washer, Stainless
-
920710002404 Fixation PlateFixation Plate
-
921705003666 Rubber GrommetRubber Grommet
-
922207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
950710001248 Outlet DCOutlet DC
