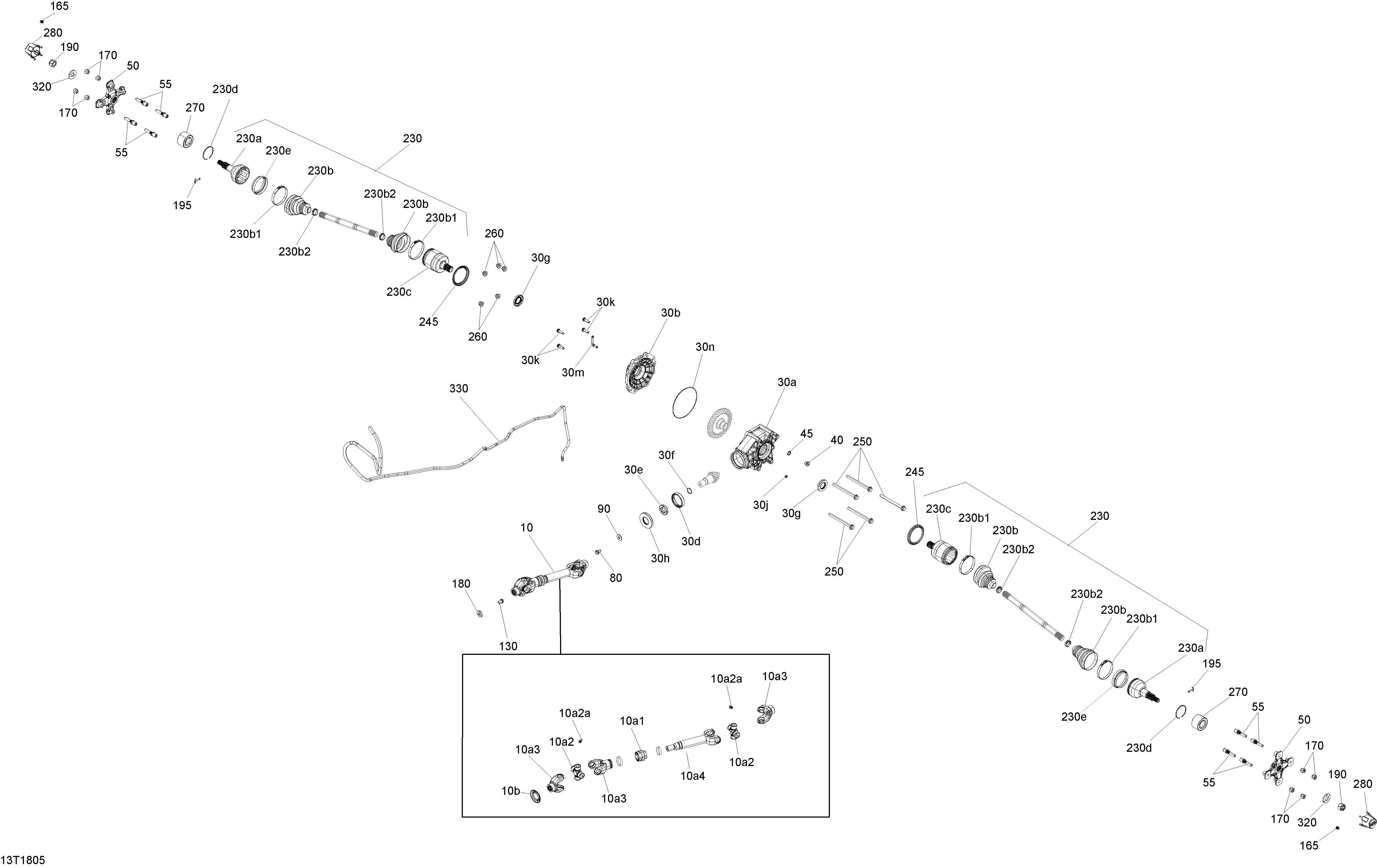

08- Rear Drive Renegade - Package XMR для BRP 3- Renegade 1000R EFI - 2018
-
№АртикулНазвание
-
10703500990 Shaft Ass'y Kit. Includes 10 to 10bShaft Ass'y Kit. Includes 10 to 10b
-
10a1715900118 Rubber BootRubber Boot
-
10a2703500846 Universal Joint Ass'yUniversal Joint Ass'y
-
10a2a715900295 Grease FittingGrease Fitting
-
10a3715900499 JointJoint
-
10a4715900436 JointJoint
-
10b705501123 ProtectorProtector
-
30705502546 Final Drive Unit. Includes 30 to 30pFinal Drive Unit. Includes 30 to 30p
-
30a705502547 Rear CoverRear Cover
-
30b705502180 Rear Pinion CoverRear Pinion Cover
-
30d705501549 NutNut
-
30e705501550 NutNut
-
30f705501554 O-RingO-Ring
-
30g705501556 Oil SealOil Seal
-
30h705501557 Oil SealOil Seal
-
30j705501724 Plug DrainPlug Drain
-
30k705502063 ScrewScrew
-
30m705501584 Breather TubeBreather Tube
-
30n705501711 O-RingO-Ring
-
30p703500836 Needle Bearing Ass'yNeedle Bearing Ass'y
-
30q703500870 Differential Gear Kit. incl 30e, 30fDifferential Gear Kit. incl 30e, 30f
-
40705500504 Fill Level PlugFill Level Plug
-
45705500506 Copper WasherCopper Washer
-
50705501900 Wheel HubWheel Hub
-
55250300048 Wheel StudWheel Stud
-
80250000615 Hex Flanged Screwv M10 X 16Hex Flanged Screwv M10 X 16
-
90250200014 Flat Washer M10Flat Washer M10
-
130250000359 Hex Flanged Screw M12 x 16Hex Flanged Screw M12 x 16
-
165293000110 Valve CapValve Cap
-
170250100184 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
-
180250200005 Conical Spring Washer M12Conical Spring Washer M12
-
190250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
195250400071 Cotter PinCotter Pin
-
230705501848 RH CV Joint Ass'y. Includes 230 to 230eRH CV Joint Ass'y. Includes 230 to 230e
-
230705501847 LH CV Joint Ass'y. Includes 230 to 230eLH CV Joint Ass'y. Includes 230 to 230e
-
230a705501776 CV JointCV Joint
-
230b705501864 Boot KitBoot Kit
-
230b1715900241 Oetiker Clamp, 82.1 mmOetiker Clamp, 82.1 mm
-
230b2715900242 Oetiker Clamp, 27.3 mmOetiker Clamp, 27.3 mm
-
230c705501780 Plunging JointPlunging Joint
-
230d705501781 CirclipCirclip
-
230e705501842 Joint ProtectorJoint Protector
-
245705501124 Wear RingWear Ring
-
250250000508 Hex. Flanged Screw M10 x 135Hex. Flanged Screw M10 x 135
-
260233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
270293350118 Cone BearingCone Bearing
-
280705400928 Wheel CapWheel Cap
-
320250200171 Conical Spring Washer M18Conical Spring Washer M18
-
330415080200 Hose, Polyurethane, iD 5.7mm (10M Roll)Hose, Polyurethane, iD 5.7mm (10M Roll)
