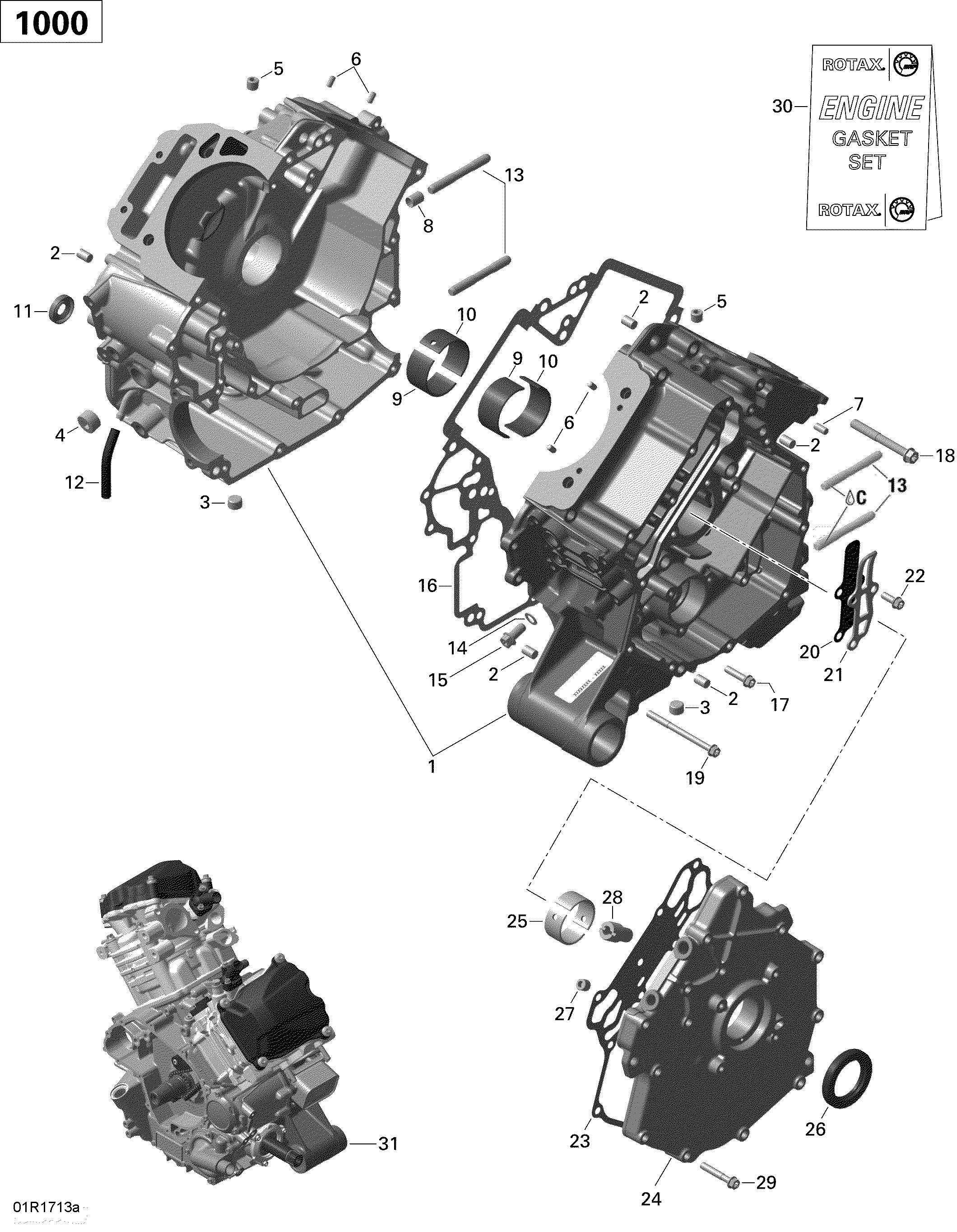

01- Crankcase - 1000R EFI (XMR) для BRP 3- Renegade 1000R EFI - 2018
-
№АртикулНазвание
-
1420686416 Crankcase Ass'y. Includes 1 to 12Crankcase Ass'y. Includes 1 to 12
-
2420632010 Center Pin 8 X 12Center Pin 8 X 12
-
3420840657 Plug Screw M12 X 1.5Plug Screw M12 X 1.5
-
4420240170 Plug Screw M18 X 1.5Plug Screw M18 X 1.5
-
5420641323 Plug Screw M10 X 1Plug Screw M10 X 1
-
6420929650 Drive Pin 5 X 10Drive Pin 5 X 10
-
7420932780 Needle PinNeedle Pin
-
8420929670 Dowel Pin 10 X 13Dowel Pin 10 X 13
-
9420233960 Plain BearingPlain Bearing
-
10420233965 Plain BearingPlain Bearing
-
11420650310 Oil SealOil Seal
-
12415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
13420240814 StudStud
-
14420950141 Sealing RingSealing Ring
-
15420440852 Flanged Torx Screw M8 X 16Flanged Torx Screw M8 X 16
-
16420651225 GasketGasket
-
17420440234 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
18420440402 Flanged Torx Screw M8 X 65Flanged Torx Screw M8 X 65
-
19420440657 Flanged Torx Screw M6 X 75Flanged Torx Screw M6 X 75
-
20420224720 Valve PlateValve Plate
-
21420224725 Reed Valve StopReed Valve Stop
-
22420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
23420651211 GasketGasket
-
24420612335 PTO Cover Ass'y. Includes 24 to 27PTO Cover Ass'y. Includes 24 to 27
-
25420233995 Bearing SleeveBearing Sleeve
-
26420631932 Oil SealOil Seal
-
27420641323 Plug Screw M10 X 1Plug Screw M10 X 1
-
28420256332 Hose NippleHose Nipple
-
29420440274 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
30420684150 Gasket Kit, EngineGasket Kit, Engine
-
31420101015 Long Block, 1000Long Block, 1000
