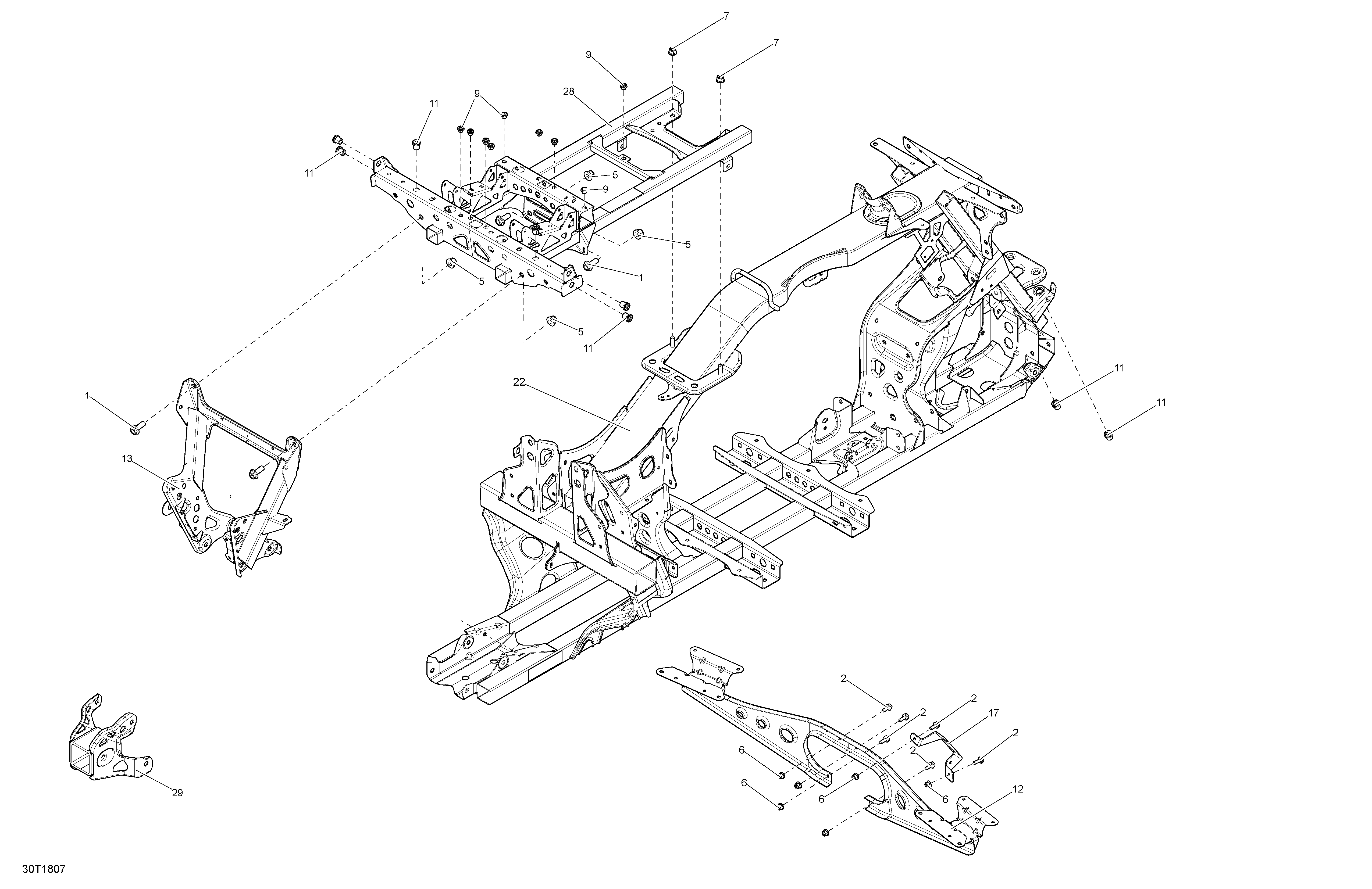

09- Frame для BRP 3- Outlander MAX 6X6 - 650 EFI - T3 - 2018

  • №
    Артикул
    Название
  • 22
    705206363 Black Frame
    Black Frame
  • 13
    705203387 Black Rear Support
    Black Rear Support
  • 1
    207602546 Hex. Flanged Screw M10 X 25
    Hex. Flanged Screw M10 X 25
  • 5
    233201436 Flanged Elastic Nut M10
    Flanged Elastic Nut M10
  • 2
    207661644 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 6
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 12
    705202947 Footrest Support
    Footrest Support
  • 17
    705203874 Master Cylinder Bracket
    Master Cylinder Bracket
  • 28
    705204077 Black Frame Extension. Includes 28 to 28a
    Black Frame Extension. Includes 28 to 28a
  • 28a
    293450232 Insert. Not Shown
    Insert. Not Shown
  • 25
    207602546 Hex. Flanged Screw M10 X 25. Not Shown
    Hex. Flanged Screw M10 X 25. Not Shown
  • 26
    233201436 Flanged Elastic Nut M10. Not Shown
    Flanged Elastic Nut M10. Not Shown
  • 27
    233281414 Hex. Flanged Elastic Nut M8. Not Shown
    Hex. Flanged Elastic Nut M8. Not Shown
  • 29
    705207080 Trailer Hitch. Includes 29 to 29a
    Trailer Hitch. Includes 29 to 29a
  • 29a
    715002812 Trailer-hook. Not Shown
    Trailer-hook. Not Shown
  • 11
    293450307 Insert
    Insert
  • 9
    250100199 Insert Half Hex Body M6 x 1.0
    Insert Half Hex Body M6 x 1.0
