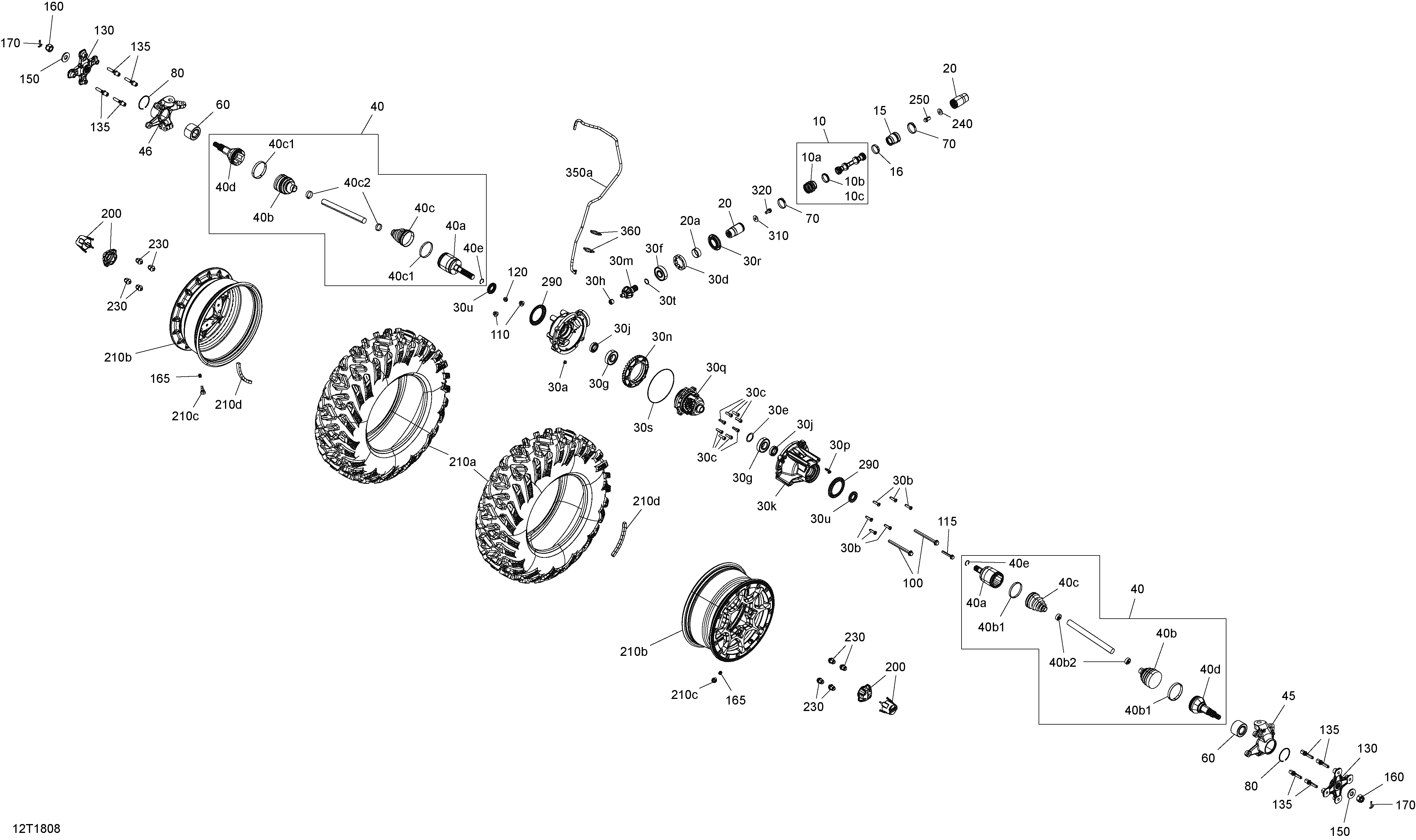

07- Drive, Front для BRP 3- Outlander MAX 6X6 - 650 EFI - T3 - 2018

  • №
    Артикул
    Название
  • 10
    705400913 Front Drive Axle Ass'y. Includes 10 to 10c
    Front Drive Axle Ass'y. Includes 10 to 10c
  • 10a
    715900118 Rubber Boot
    Rubber Boot
  • 10b
    509000045 Oetiker Gear Clamp
    Oetiker Gear Clamp
  • 10c
    293650138 Oetiker Gear Clamp
    Oetiker Gear Clamp
  • 15
    705401093 Rubber Boot
    Rubber Boot
  • 16
    293650199 Oetiker Gear Clamp
    Oetiker Gear Clamp
  • 20
    703500678 Front Bushing Shaft Kit. Includes 20 to 20a
    Front Bushing Shaft Kit. Includes 20 to 20a
  • 20a
    705400036 Wear Ring
    Wear Ring
  • 25
    705401969 Coupling-Sleeve. Not Shown
    Coupling-Sleeve. Not Shown
  • 30
    703500908 Front Differential. Includes 30 to 30y
    Front Differential. Includes 30 to 30y
  • 30a
    705501885 Drain Plug
    Drain Plug
  • 30b
    705401601 Screw
    Screw
  • 30c
    705401602 Screw
    Screw
  • 30d
    705401603 Nut
    Nut
  • 30e
    705401604 Shim
    Shim
  • 30f
    705401605 Ball Bearing
    Ball Bearing
  • 30g
    705401606 Ball Bearing
    Ball Bearing
  • 30h
    705401607 Needle Bearing
    Needle Bearing
  • 30j
    705401608 Ball Bearing
    Ball Bearing
  • 30k
    705401610 Front Cover
    Front Cover
  • 30m
    705401791 Pinion 10 Teeth
    Pinion 10 Teeth
  • 30n
    705401612 Gear 36 Teeth
    Gear 36 Teeth
  • 30p
    705401613 Vent Valve
    Vent Valve
  • 30q
    705401506 Differential
    Differential
  • 30r
    705401615 Oil Seal
    Oil Seal
  • 30s
    705401616 Seal
    Seal
  • 30t
    705401617 O'Ring
    O'Ring
  • 30u
    705401618 Gasket
    Gasket
  • 30v
    705401769 Shim
    Shim
  • 30w
    705401770 Shim
    Shim
  • 30x
    250200014 Flat Washer M10
    Flat Washer M10
  • 30y
    250000847 Hex. Flanged Screw M10 X 20
    Hex. Flanged Screw M10 X 20
  • 35
    705500504 Fill Level Plug. Not Shown
    Fill Level Plug. Not Shown
  • 36
    705500506 Copper Washer. Not Shown
    Copper Washer. Not Shown
  • 40
    705401116 RH Homocinetic Joint. Includes 40 to 40e
    RH Homocinetic Joint. Includes 40 to 40e
  • 40
    705401115 LH Homocinetic Joint. Includes 40 to 40e
    LH Homocinetic Joint. Includes 40 to 40e
  • 40a
    705401344 CV Joint
    CV Joint
  • 40b
    705401345 Boot Kit, Wheel Side. Includes 40b to 40b2
    Boot Kit, Wheel Side. Includes 40b to 40b2
  • 40b1
    715900282 Oetiker Clamp, Large
    Oetiker Clamp, Large
  • 40b2
    715900283 Oetiker Clamp, Small
    Oetiker Clamp, Small
  • 40c
    705401346 Boot Kit, Differential Side. Includes 40c to 40c2
    Boot Kit, Differential Side. Includes 40c to 40c2
  • 40c1
    715900284 Oetiker Clamp, Large
    Oetiker Clamp, Large
  • 40c2
    715900261 Oetiker Clamp, Small
    Oetiker Clamp, Small
  • 40d
    705401348 RH Plunging Joint
    RH Plunging Joint
  • 40d
    705401350 LH Plunging Joint
    LH Plunging Joint
  • 40e
    705401349 Circlip Joint
    Circlip Joint
  • 45
    705401290 LH Knuckle
    LH Knuckle
  • 46
    705401291 RH Knuckle
    RH Knuckle
  • 60
    293350118 Cone Bearing
    Cone Bearing
  • 70
    293650138 Oetiker Gear Clamp
    Oetiker Gear Clamp
  • 80
    293370019 Circlip
    Circlip
  • 100
    230602546 Hex. Flanged Screw M10 X 125
    Hex. Flanged Screw M10 X 125
  • 110
    233201436 Flanged Elastic Nut M10
    Flanged Elastic Nut M10
  • 115
    207685544 Hex. Flanged Screw M8 X 55
    Hex. Flanged Screw M8 X 55
  • 120
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 130
    705501716 Wheel Hub Ass'y
    Wheel Hub Ass'y
  • 135
    250300048 Wheel Stud
    Wheel Stud
  • 150
    250200171 Conical Spring Washer M18
    Conical Spring Washer M18
  • 160
    250100047 Hex. Castellated Nut M18
    Hex. Castellated Nut M18
  • 165
    293000110 Valve Cap
    Valve Cap
  • 170
    250400071 Cotter Pin
    Cotter Pin
  • 200
    705400928 Wheel Cap
    Wheel Cap
  • 210a
    705402274 Front Tire
    Front Tire
  • 210b
    705401127 Black Rim
    Black Rim
  • 210c
    705400193 Rim Valve With Cap
    Rim Valve With Cap
  • 210d
    705501385 1/2 OZ Weight
    1/2 OZ Weight
  • 230
    250100184 Black Wheel Nut M10 X 1.25
    Black Wheel Nut M10 X 1.25
  • 240
    250200102 Flat Washer M12
    Flat Washer M12
  • 250
    250000540 Hex Flanged Screw M12 X 20
    Hex Flanged Screw M12 X 20
  • 290
    705400780 Wear Sleeve
    Wear Sleeve
  • 310
    250200014 Flat Washer M10
    Flat Washer M10
  • 320
    250000847 Hex. Flanged Screw M10 X 20
    Hex. Flanged Screw M10 X 20
  • 350a
    293830193 Polyurethane Hose
    Polyurethane Hose
  • 360
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
