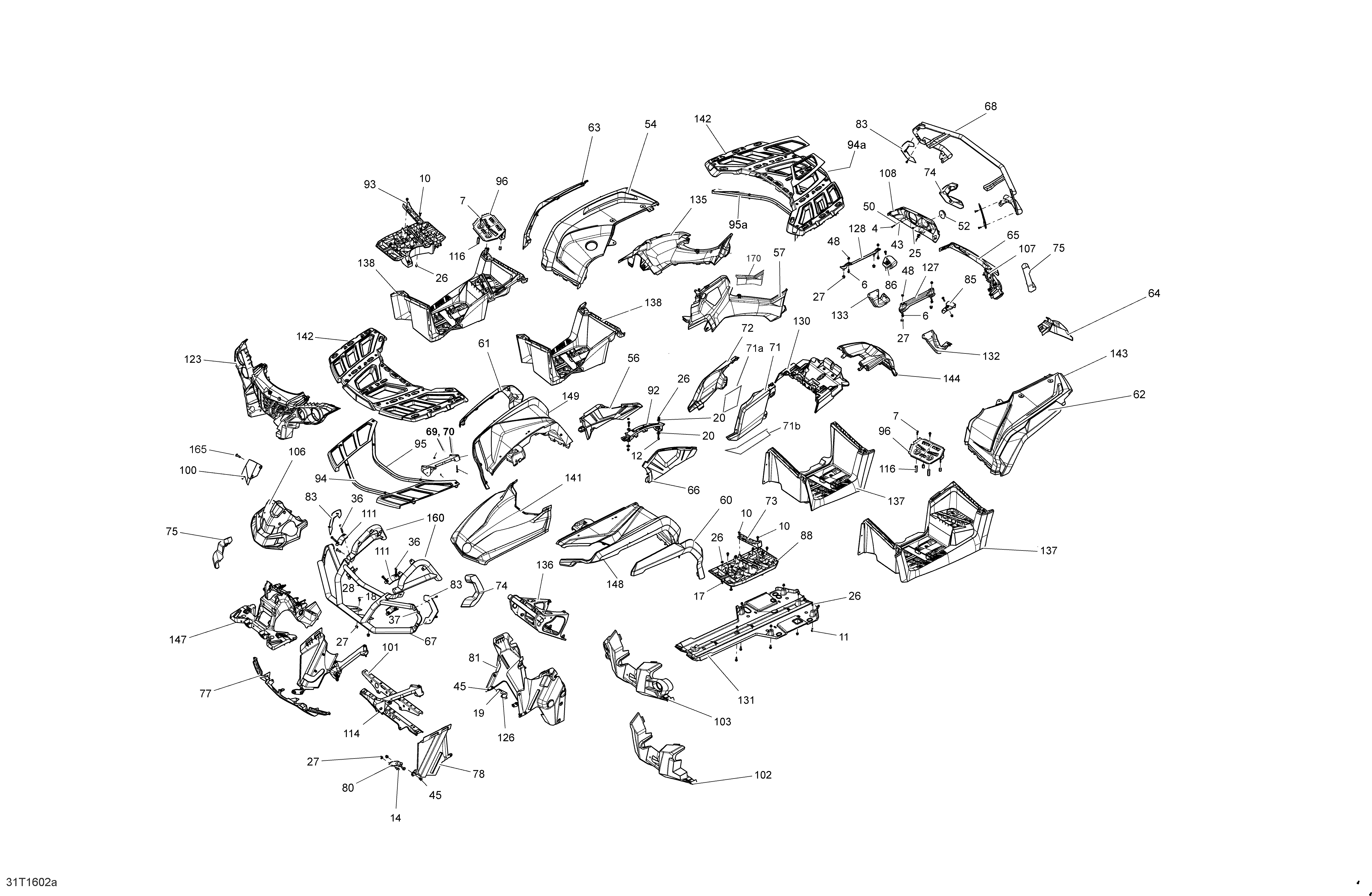

09- Body and Accessories - All Models для BRP Outlander - Outlander MAX - 2016
-
№АртикулНазвание
-
4207342544 Hex. Cap Screw M4 X 25Hex. Cap Screw M4 X 25
-
6207561644 Hex. Flanged Screw M6 X 16, Scotch Grip. Except XMRHex. Flanged Screw M6 X 16, Scotch Grip. Except XMR
-
8207582544 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
9207661654 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
11207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
12207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
14207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
15207683534 Hex. Flanged Screw M8 X 35. Except XMRHex. Flanged Screw M8 X 35. Except XMR
-
16207762044 Carriage Bolt M6 X 20Carriage Bolt M6 X 20
-
17207763554 BOLT-CARRIAGE DIN.603BOLT-CARRIAGE DIN.603
-
18207782044 Carriage Bolt, M8 X 20Carriage Bolt, M8 X 20
-
20224061201 Flat WasherFlat Washer
-
21232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
22232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
23232862412 Square Nut M6Square Nut M6
-
25233251434 Flanged Elastic Nut M5. Except Europe ModelFlanged Elastic Nut M5. Except Europe Model
-
26233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
27233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
28233281464 Elastic Flange Nut M8Elastic Flange Nut M8
-
29234062410 Flat Washer 6 mmFlat Washer 6 mm
-
30234062670 Flat Washer, StainlessFlat Washer, Stainless
-
32241140060 Screw K40 X 10. Except XMRScrew K40 X 10. Except XMR
-
33250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
34250000101 Plastite Screw Type K-40, M4 X 25. Except XMRPlastite Screw Type K-40, M4 X 25. Except XMR
-
35250000842 TORX-TRUSS M/S M6 X 30TORX-TRUSS M/S M6 X 30
-
36250000535 Torx Screw M8 X 55Torx Screw M8 X 55
-
37250000544 Torx Screw M8 X 30Torx Screw M8 X 30
-
38250000646 Torx Screw M6 X 35. Except XMRTorx Screw M6 X 35. Except XMR
-
40250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
41250000723 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
42250000841 SCREW-HEXAGONE FLANGE M6 X 25 S.GRISCREW-HEXAGONE FLANGE M6 X 25 S.GRI
-
43250100143 Extruded Panel Nut M4 X 0.7Extruded Panel Nut M4 X 0.7
-
44269501943 Elastic Nut Housing M8Elastic Nut Housing M8
-
45293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
47293250242 Rubber CoverRubber Cover
-
48293450274 Insert. Except XMRInsert. Except XMR
-
49293830005 Rubber BumperRubber Bumper
-
50517124300 WasherWasher
-
51517302785 ClipClip
-
52705002408 Red Reflector. Except Europe ModelRed Reflector. Except Europe Model
-
53705003264 GrommetGrommet
-
54715002994 Matte Black RH Rear Fender Kit. P-XT North AmericaMatte Black RH Rear Fender Kit. P-XT North America
-
54715002995 Matte Black RH Rear Fender Kit. P-XT InternationalMatte Black RH Rear Fender Kit. P-XT International
-
54715001836 Black RH Rear Fender Kit. P-XTP North AmericaBlack RH Rear Fender Kit. P-XTP North America
-
54715002230 Black RH Rear Fender Kit. P-XTP Except North AmericaBlack RH Rear Fender Kit. P-XTP Except North America
-
54715002994 Matte Black RH Rear Fender Kit. P-XMR Digital Camo North AmericaMatte Black RH Rear Fender Kit. P-XMR Digital Camo North America
-
54715002995 Black RH Rear Fender Kit. P-XMR Digital Camo InternationalBlack RH Rear Fender Kit. P-XMR Digital Camo International
-
54715001810 Black RH Rear Fender Kit. P-XMR White/Red/Black North AmericaBlack RH Rear Fender Kit. P-XMR White/Red/Black North America
-
54715002315 Black RH Rear Fender Kit. P-XMR White/Red/Black InternationalBlack RH Rear Fender Kit. P-XMR White/Red/Black International
-
54715003260 Black RH Rear Fender Kit. P-XMR BlueBlack RH Rear Fender Kit. P-XMR Blue
-
54715003234 Camo RH Rear Fender Kit . Camo Model North AmericaCamo RH Rear Fender Kit . Camo Model North America
-
54715003235 Camo RH Rear Fender Kit. Camo Model InternationalCamo RH Rear Fender Kit. Camo Model International
-
54715002598 Brushed Aluminium RH Rear Fender Kit. Brushed Aluminum Model North AmericaBrushed Aluminium RH Rear Fender Kit. Brushed Aluminum Model North America
-
54715002599 Brushed Aluminium RH Rear Fender Kit. Brushed Aluminum Model Except North AmericaBrushed Aluminium RH Rear Fender Kit. Brushed Aluminum Model Except North America
-
54715003236 Cognac RH Rear Fender Kit . Cognac Model North AmericaCognac RH Rear Fender Kit . Cognac Model North America
-
54715003237 Cognac RH Rear Fender Kit . Cognac Model Except North AmericaCognac RH Rear Fender Kit . Cognac Model Except North America
-
54715002633 Deep Pewter RH Rear Fender Kit. Deep Pewter ModelDeep Pewter RH Rear Fender Kit. Deep Pewter Model
-
54715002232 Grey RH Rear Fender Kit. Grey Model North AmericaGrey RH Rear Fender Kit. Grey Model North America
-
54715002233 Grey RH Rear Fender Kit. Grey Model InternationalGrey RH Rear Fender Kit. Grey Model International
-
54715001823 Red RH Rear Fender Kit. Red Model North AmericaRed RH Rear Fender Kit. Red Model North America
-
54715002228 Red RH Rear Fender Kit. Red Model InternationalRed RH Rear Fender Kit. Red Model International
-
54715002296 White RH Rear Fender Kit. White Model InternationalWhite RH Rear Fender Kit. White Model International
-
54715002607 White RH Rear Fender Kit. White Model North AmericaWhite RH Rear Fender Kit. White Model North America
-
54715001820 Yellow RH Rear Fender Kit. Yellow Model North AmericaYellow RH Rear Fender Kit. Yellow Model North America
-
54715002229 Yellow RH Rear Fender Kit. Yellow Model Except North AmericaYellow RH Rear Fender Kit. Yellow Model Except North America
-
56705003444 Engine CoverEngine Cover
-
57705009903 Camo LH Pannel. Camo ModelCamo LH Pannel. Camo Model
-
57705008588 Brush Alum. LH Lateral Panel. Brush Aluminium ModelBrush Alum. LH Lateral Panel. Brush Aluminium Model
-
57705009909 Cognac LH Pannel . Cognac ModelCognac LH Pannel . Cognac Model
-
57705008590 Deep Pewter Satin LH Lateral Panel. Deep Pewter ModelDeep Pewter Satin LH Lateral Panel. Deep Pewter Model
-
57705007530 Quarry Gray LH Lateral Panel. Quarry Gray ModelQuarry Gray LH Lateral Panel. Quarry Gray Model
-
57705005237 Red LH Pannel. Viper Red ModelRed LH Pannel. Viper Red Model
-
57705006045 White LH Lateral Panel. White ModelWhite LH Lateral Panel. White Model
-
57705003446 Yellow LH Lateral Panel. Yellow ModelYellow LH Lateral Panel. Yellow Model
-
57705009914 Bright White LH Lateral Panel. P-XMR White/Red/BlackBright White LH Lateral Panel. P-XMR White/Red/Black
-
57705008580 Digital Camo LH Lateral Panel. P-XMR Digital CamoDigital Camo LH Lateral Panel. P-XMR Digital Camo
-
57705009916 Silver LH Lateral Panel. P-XMR BlueSilver LH Lateral Panel. P-XMR Blue
-
57705008578 Orange Crush LH Lateral Panel. Package XTP Black ModelOrange Crush LH Lateral Panel. Package XTP Black Model
-
60705003914 LH Front Mudguard. Except XMRLH Front Mudguard. Except XMR
-
60705006988 LH Mud Guard Xmr. XMRLH Mud Guard Xmr. XMR
-
61705003915 RH Front Mudguard. Except XMRRH Front Mudguard. Except XMR
-
61705006989 RH Mud Guard Xmr. XMRRH Mud Guard Xmr. XMR
-
62705003918 LH Rear MudguardLH Rear Mudguard
-
63705003920 RH Rear MudguardRH Rear Mudguard
-
64705003921 LH Rear Mudguard, Part 2LH Rear Mudguard, Part 2
-
65705003922 RH Rear Mudguard, Part 2RH Rear Mudguard, Part 2
-
66705004147 LH Extension PannelLH Extension Pannel
-
67705005018 Black Front Bumper. P-XTP, P-LTD, P-XT except Black ModelBlack Front Bumper. P-XTP, P-LTD, P-XT except Black Model
-
67705010752 Blue Front Bumper. P-XT Black ModelBlue Front Bumper. P-XT Black Model
-
67705008573 Green Front Bumper. P-XMR Digital CamoGreen Front Bumper. P-XMR Digital Camo
-
67705009889 Red Front Bumper. P-XMR White/Red/BlackRed Front Bumper. P-XMR White/Red/Black
-
67705009890 Blue Front Bumper. P-XMR BlueBlue Front Bumper. P-XMR Blue
-
68705005019 Black Bumper. P-XTP, P-LTDBlack Bumper. P-XTP, P-LTD
-
68705008577 Green Bumper. P-XMR Digital CamoGreen Bumper. P-XMR Digital Camo
-
68705009897 Red Rear Bumper. P-XMR White/Red/BlackRed Rear Bumper. P-XMR White/Red/Black
-
68705009898 Blue Bumper. P-XMR Blue, P-XT BlackBlue Bumper. P-XMR Blue, P-XT Black
-
69705006700 LH Support Ass'yLH Support Ass'y
-
70705006701 RH Support Ass'yRH Support Ass'y
-
71715001897 panel. P-XMR 1000, Incl 71a, 71bpanel. P-XMR 1000, Incl 71a, 71b
-
71a705006870 Heat Shield. LargeHeat Shield. Large
-
71b705006871 Heat Shield. SmallHeat Shield. Small
-
72705004348 panel. P-XMR 1000panel. P-XMR 1000
-
74705004410 Cap (Front RH) (Rear LH)Cap (Front RH) (Rear LH)
-
74705004409 Cap (Front LH) (Rear RH)Cap (Front LH) (Rear RH)
-
76705004497 RingRing
-
77705004523 Lugage Rack Moulding. Except XMRLugage Rack Moulding. Except XMR
-
78705004557 LH Inner FenderLH Inner Fender
-
79705004558 RH Inner FenderRH Inner Fender
-
80705004565 Lower Fender SupportLower Fender Support
-
81705004587 RH Inner FenderRH Inner Fender
-
82705004588 LH Inner FenderLH Inner Fender
-
83705004987 Bracket CoverBracket Cover
-
84705005003 Shiftgate Trim. Europe ModelShiftgate Trim. Europe Model
-
85705005094 LH BracketLH Bracket
-
86705005095 RH BracketRH Bracket
-
87705005253 RH. FootboardRH. Footboard
-
88705005254 LH. FootboardLH. Footboard
-
90705005258 Indicator. Engine 1000R Except Europe Model, Except XMRIndicator. Engine 1000R Except Europe Model, Except XMR
-
90705005258 Indicator. Engine 570-650-850 Except Europe ModelIndicator. Engine 570-650-850 Except Europe Model
-
91705005259 Indicator. Europe ModelIndicator. Europe Model
-
94705005469 Tube. Except XMRTube. Except XMR
-
94a705005469 TubeTube
-
95705005470 Tube. Except XMRTube. Except XMR
-
95a705005470 TubeTube
-
100705006135 RH Air Deflector. Package Pro, XMRRH Air Deflector. Package Pro, XMR
-
100705006134 LH Air Deflector. Package Pro, XMRLH Air Deflector. Package Pro, XMR
-
101705006220 Front Bumper Center Support. XMRFront Bumper Center Support. XMR
-
102705006299 Front Guard Plate. Except Europe ModelFront Guard Plate. Except Europe Model
-
103705006300 Front Guard Plate. Europe ModelFront Guard Plate. Europe Model
-
106705006321 Gage Support. Package STD, DPS, XTGage Support. Package STD, DPS, XT
-
106705006322 Gage Support. Package XTP, LTDGage Support. Package XTP, LTD
-
106705006373 Gage Support. P-XMR 1000RGage Support. P-XMR 1000R
-
106705007095 Gage Support. P-XMR 650, 850Gage Support. P-XMR 650, 850
-
107705006643 LH Rear Facia. Except Europe ModelLH Rear Facia. Except Europe Model
-
108705006650 RH Rear Facia. Except Europe ModelRH Rear Facia. Except Europe Model
-
109705006651 LH Rear Facia. Europe ModelLH Rear Facia. Europe Model
-
110705006652 RH Rear Facia. Europe ModelRH Rear Facia. Europe Model
-
111705008574 Manta Green Upper BracketManta Green Upper Bracket
-
111705009891 Red Upper BracketRed Upper Bracket
-
111705009892 Blue Upper BracketBlue Upper Bracket
-
112705006700 LH Support Ass'y. Except XMRLH Support Ass'y. Except XMR
-
113705006701 RH Support Ass'y. Except XMRRH Support Ass'y. Except XMR
-
114705006812 Cargo Rack Center Support. Except XMRCargo Rack Center Support. Except XMR
-
123705007041 Front FaciaFront Facia
-
127705007277 LH SupportLH Support
-
128705007278 RH SupportRH Support
-
130705007948 Seat HolderSeat Holder
-
131715002374 Protective Plate KitProtective Plate Kit
-
132705007896 LH Rear BracketLH Rear Bracket
-
133705007897 RH Rear BracketRH Rear Bracket
-
135705009912 Camo RH Lateral Pannel. Camo ModelCamo RH Lateral Pannel. Camo Model
-
135705008589 Brush Alum. RH Lateral Panel. Brush Aluminium ModelBrush Alum. RH Lateral Panel. Brush Aluminium Model
-
135705009913 Cognac RH Lateral Pannel. Cognac ModelCognac RH Lateral Pannel. Cognac Model
-
135705008591 Deep Pewter Satin RH Lateral Panel. Deep Pewter ModelDeep Pewter Satin RH Lateral Panel. Deep Pewter Model
-
135705009116 Quarry Gray RH Lateral Panel. Quarry Gray ModelQuarry Gray RH Lateral Panel. Quarry Gray Model
-
135705009115 Viper Red RH Lateral Panel. Viper Red ModelViper Red RH Lateral Panel. Viper Red Model
-
135705009119 White RH Lateral Panel. White ModelWhite RH Lateral Panel. White Model
-
135705009019 Yellow RH Lateral Panel. Yellow ModelYellow RH Lateral Panel. Yellow Model
-
135705008587 Digital CAMO RH Lateral Panel. P-XMR Digital CamoDigital CAMO RH Lateral Panel. P-XMR Digital Camo
-
135705009915 Bright White RH Lateral Panel . P-XMR White/Red/BlackBright White RH Lateral Panel . P-XMR White/Red/Black
-
135705009917 Silver RH Lateral Panel. P-XMR BlueSilver RH Lateral Panel. P-XMR Blue
-
135705008579 Orange Crush RH Lateral Panel. Package XTP Black ModelOrange Crush RH Lateral Panel. Package XTP Black Model
-
136705009253 Black Front Bumper SupportBlack Front Bumper Support
-
137705007040 LH Footrest. OutlanderLH Footrest. Outlander
-
137705007040 LH Footrest. XMR 650LH Footrest. XMR 650
-
137705009810 LH Footrest. XMR 850LH Footrest. XMR 850
-
137705005978 LH Footrest. XMR 1000RLH Footrest. XMR 1000R
-
137705003525 LH Footboard, Max. Max ModelLH Footboard, Max. Max Model
-
138705007039 RH Footrest. OutlanderRH Footrest. Outlander
-
138705007039 RH Footrest. XMR 650RH Footrest. XMR 650
-
138705009811 RH Footrest. XMR 850RH Footrest. XMR 850
-
138705005977 RH Footrest. XMR 1000RRH Footrest. XMR 1000R
-
138705003521 RH Footboard, Max. Max ModelRH Footboard, Max. Max Model
-
140732610072 Push NutPush Nut
-
141715003247 Camo Hood Kit. Camo Model InternationalCamo Hood Kit. Camo Model International
-
141715003245 Camo Hood Kit. Camo Model North AmericaCamo Hood Kit. Camo Model North America
-
141715002610 Brushed Aluminium Hood Kit. Brushed Aluminum Model North AmericaBrushed Aluminium Hood Kit. Brushed Aluminum Model North America
-
141715002612 Brushed Alumnium Hood Kit. Brushed Aluminum Model Except North AmericaBrushed Alumnium Hood Kit. Brushed Aluminum Model Except North America
-
141715003241 Cognac Hood Kit. Cognac Model North AmericaCognac Hood Kit. Cognac Model North America
-
141715003243 Cognac Hood Kit . Cognac Model InternationalCognac Hood Kit . Cognac Model International
-
141715002631 Deep Pewter Hood Kit. Deep Pewter Model North americaDeep Pewter Hood Kit. Deep Pewter Model North america
-
141715003244 Deep Pewter Hood Kit. Deep Pewter Model InternationalDeep Pewter Hood Kit. Deep Pewter Model International
-
141715002237 Grey Hood Kit. Quarry Gray Model North AmericaGrey Hood Kit. Quarry Gray Model North America
-
141715002239 Grey Hood Kit. Quarry Gray Model InternationalGrey Hood Kit. Quarry Gray Model International
-
141715003238 Matte Black Hood. Matte Black North AmericaMatte Black Hood. Matte Black North America
-
141715003240 Matte Black Hood. Matte Black InternationalMatte Black Hood. Matte Black International
-
141715001543 Red Hood Kit. Viper Red Model North AmericaRed Hood Kit. Viper Red Model North America
-
141715002235 Red Hood Kit. Viper Red Model InternationalRed Hood Kit. Viper Red Model International
-
141715001845 White Hood Kit. White Model North AmericaWhite Hood Kit. White Model North America
-
141715002297 White Hood Kit. White Model InternationalWhite Hood Kit. White Model International
-
141715001541 Yellow Hood Kit. Yellow Model North AmericaYellow Hood Kit. Yellow Model North America
-
141715002234 Yellow Hood Kit. Yellow Model Except North AmericaYellow Hood Kit. Yellow Model Except North America
-
141715002600 Orange Hood Kit. P-XTP North AmericaOrange Hood Kit. P-XTP North America
-
141715002602 Orange Hood Kit. P-XTP Except North AmericaOrange Hood Kit. P-XTP Except North America
-
141708301706 Bright White Hood Kit. P-XMR White/Red/BlackBright White Hood Kit. P-XMR White/Red/Black
-
141708301707 Silver Hood. P-XMR Gulfstream BlueSilver Hood. P-XMR Gulfstream Blue
-
141708301354 Digital CAMO Hood. P-XMR Digital CamoDigital CAMO Hood. P-XMR Digital Camo
-
142715001852 Rack Kit. North AmericaRack Kit. North America
-
142715002784 Rack Kit. Except North AmericaRack Kit. Except North America
-
143715002996 Digital CamoLH Rear Fender Kit. P-XMR Digital Camo North AmericaDigital CamoLH Rear Fender Kit. P-XMR Digital Camo North America
-
143715002998 Digital CamoLH Rear Fender Kit. P-XMR Digital Camo InternationalDigital CamoLH Rear Fender Kit. P-XMR Digital Camo International
-
143715001798 Black LH Rear Fender Kit. P-XMR White/Red/Black North AmericaBlack LH Rear Fender Kit. P-XMR White/Red/Black North America
-
143715002312 Black LH Rear Fender Kit. P-XMR White/Red/Black InternationalBlack LH Rear Fender Kit. P-XMR White/Red/Black International
-
143715003257 Black LH Rear Fender Kit. P-XMR BlueBlack LH Rear Fender Kit. P-XMR Blue
-
143715001875 Black LH Rear Fender Kit. P-XTP Outlander North AmericaBlack LH Rear Fender Kit. P-XTP Outlander North America
-
143715001802 Black LH Rear Fender Kit. P-XTP Out-Max North AmericaBlack LH Rear Fender Kit. P-XTP Out-Max North America
-
143715002221 Black LH Rear Fender Kit. P-XTP Outlander EuropeBlack LH Rear Fender Kit. P-XTP Outlander Europe
-
143715002276 Black LH Rear Fender Kit. P-XTP Out-Max EuropeBlack LH Rear Fender Kit. P-XTP Out-Max Europe
-
143715003218 Black LH Rear Fender Kit. P-XTP InternationalBlack LH Rear Fender Kit. P-XTP International
-
143715003219 Matte Black LH Rear Fender Kit. Matte Black Model North AmericaMatte Black LH Rear Fender Kit. Matte Black Model North America
-
143715002593 Brushed Aluminium LH Rear Fender Kit. Brushed Aluminum Model Outlander North AmericaBrushed Aluminium LH Rear Fender Kit. Brushed Aluminum Model Outlander North America
-
143715002621 Brushed Aluminium LH Rear Fender Kit. Brushed Aluminum Model Out-Max North AmericaBrushed Aluminium LH Rear Fender Kit. Brushed Aluminum Model Out-Max North America
-
143715002623 Brushed Aluminium LH Rear Fender Kit. Brushed Aluminum Model Out-Max EuropeBrushed Aluminium LH Rear Fender Kit. Brushed Aluminum Model Out-Max Europe
-
143715003217 Brushed Aluminium LH Rear Fender Kit . Brushed Aluminum Model InternationalBrushed Aluminium LH Rear Fender Kit . Brushed Aluminum Model International
-
143715003223 Camo LH Rear Fender Kit. Camo Model North AmericaCamo LH Rear Fender Kit. Camo Model North America
-
143715003225 Camo LH Rear Fender Kit. Camo Model InternationalCamo LH Rear Fender Kit. Camo Model International
-
143715003229 Cognac LH Rear Fender Kit. Cognac Model North AmericaCognac LH Rear Fender Kit. Cognac Model North America
-
143715003231 Cognac LH Rear Fender Kit. Cognac Model EuropeCognac LH Rear Fender Kit. Cognac Model Europe
-
143715003233 Cognac LH Rear Fender Kit. Cognac Model InternationalCognac LH Rear Fender Kit. Cognac Model International
-
143715002626 Deep Pewter LH Rear Fender Kit. Deep Pewter Model North americaDeep Pewter LH Rear Fender Kit. Deep Pewter Model North america
-
143715002628 Deep Pewter LH Rear Fender Kit. Deep Pewter Model InternationalDeep Pewter LH Rear Fender Kit. Deep Pewter Model International
-
143715002225 Grey LH Rear Fender Kit. Quarry Gray Model Outlander North AmericaGrey LH Rear Fender Kit. Quarry Gray Model Outlander North America
-
143715002290 Grey LH Rear Fender Kit. Quarry Gray Model Out-Max North AmericaGrey LH Rear Fender Kit. Quarry Gray Model Out-Max North America
-
143715003214 Grey LH Rear Fender Kit . Quarry Gray Model Outlander InternationalGrey LH Rear Fender Kit . Quarry Gray Model Outlander International
-
143715001864 Red LH Rear Fender Kit. Viper Red Model Outlander North AmericaRed LH Rear Fender Kit. Viper Red Model Outlander North America
-
143715002270 Red LH Rear Fender Kit. Viper Red Model Out-Max North AmericaRed LH Rear Fender Kit. Viper Red Model Out-Max North America
-
143715003212 Red LH Rear Fender Kit. Viper Red Model InternationalRed LH Rear Fender Kit. Viper Red Model International
-
143715002605 White LH Rear Fender Kit. White Model Outlander North AmericaWhite LH Rear Fender Kit. White Model Outlander North America
-
143715001808 White LH Rear Fender Kit. White Model Out-Max North AmericaWhite LH Rear Fender Kit. White Model Out-Max North America
-
143715002289 White LH Rear Fender Kit. White Model InternationalWhite LH Rear Fender Kit. White Model International
-
143715001858 Yellow LH Rear Fender Kit. Yellow Model Outlander North AmericaYellow LH Rear Fender Kit. Yellow Model Outlander North America
-
143715001793 Yellow LH Rear Fender Kit. Yellow Model Out-Max North AmericaYellow LH Rear Fender Kit. Yellow Model Out-Max North America
-
143715002212 Yellow LH Rear Fender Kit. Yellow Model Outlander EuropeYellow LH Rear Fender Kit. Yellow Model Outlander Europe
-
143715002273 Yellow-LH Rear Fender Kit. Yellow Model Out-MaxEuropeYellow-LH Rear Fender Kit. Yellow Model Out-MaxEurope
-
143715003213 Yellow LH Rear Fender Kit . Yellow Model InternationalYellow LH Rear Fender Kit . Yellow Model International
-
144715001765 Dash Kit. North AmericaDash Kit. North America
-
144715002783 Dash Kit. Except North AmericaDash Kit. Except North America
-
146241141340 Hex. Screw K40 X 13Hex. Screw K40 X 13
-
147715002245 Dash Support KitDash Support Kit
-
148715002181 Black LH Front Fender Kit. P-XTP Out North AmericaBlack LH Front Fender Kit. P-XTP Out North America
-
148715002201 Black LH Front Fender Kit. P-XTP Out Except North AmericaBlack LH Front Fender Kit. P-XTP Out Except North America
-
148715002254 Black LH Front Fender Kit. P-XTP Max North AmericaBlack LH Front Fender Kit. P-XTP Max North America
-
148715002255 Black LH Front Fender Kit. P-XTP Max Except North AmericaBlack LH Front Fender Kit. P-XTP Max Except North America
-
148715002999 Painted Black LH Front Fender Kit. P-XMR Digital Camo North AmericaPainted Black LH Front Fender Kit. P-XMR Digital Camo North America
-
148715003001 Painted Black LH Front Fender Kit. P-XMR Digital Camo InternationalPainted Black LH Front Fender Kit. P-XMR Digital Camo International
-
148715003251 Black LH Front Fender Kit. P-XMR BlueBlack LH Front Fender Kit. P-XMR Blue
-
148715002301 Black LH Front Fender Kit. P-XMR 650 North AmericaBlack LH Front Fender Kit. P-XMR 650 North America
-
148715002303 Black LH Front Fender Kit. P-XMR 650 InternationalBlack LH Front Fender Kit. P-XMR 650 International
-
148715002302 Black LH Front Fender Kit. P-XMR 850 North AmericaBlack LH Front Fender Kit. P-XMR 850 North America
-
148715002304 Black LH Front Fender Kit. P-XMR 850 InternationalBlack LH Front Fender Kit. P-XMR 850 International
-
148715002302 Black LH Front Fender Kit. P-XMR 1000 White/Red/Black North AmericaBlack LH Front Fender Kit. P-XMR 1000 White/Red/Black North America
-
148715002304 Black LH Front Fender Kit. P-XMR 1000 White/Red/Black InternationalBlack LH Front Fender Kit. P-XMR 1000 White/Red/Black International
-
148715003187 Matte Black LH Front Fender Kit. Matte Black Model North AmericaMatte Black LH Front Fender Kit. Matte Black Model North America
-
148715002586 Brushed Aluminium LH Front Fender Kit. Brushed Aluminum Model North AmericaBrushed Aluminium LH Front Fender Kit. Brushed Aluminum Model North America
-
148715002588 Brushed Aluminium LH Front Fender Kit. Brushed Aluminum Model Except North AmericaBrushed Aluminium LH Front Fender Kit. Brushed Aluminum Model Except North America
-
148715003191 Camo LH Front Fender Kit. Camo Model North AmericaCamo LH Front Fender Kit. Camo Model North America
-
148715003193 Camo LH Front Fender Kit . Camo Model InternationalCamo LH Front Fender Kit . Camo Model International
-
148715003195 Cognac LH Front Fender Kit. Cognac Model North AmericaCognac LH Front Fender Kit. Cognac Model North America
-
148715003197 Cognac LH Front Fender Kit. Cognac Model Except North AmericaCognac LH Front Fender Kit. Cognac Model Except North America
-
148715002614 Deep Pewter LH Front Fender Kit. Deep Pewter Model North americaDeep Pewter LH Front Fender Kit. Deep Pewter Model North america
-
148715002616 Deep Pewter LH Front Fender Kit. Deep Pewter Model InternationalDeep Pewter LH Front Fender Kit. Deep Pewter Model International
-
148715002184 Grey LH Front Fender Kit. Quarry Gray Model Outlander North AmericaGrey LH Front Fender Kit. Quarry Gray Model Outlander North America
-
148715002262 Grey LH Front Fender Kit. Quarry Gray Model Out-Max North AmericaGrey LH Front Fender Kit. Quarry Gray Model Out-Max North America
-
148715003186 Grey LH Front Fender Kit . Quarry Gray Model Outlander InternationalGrey LH Front Fender Kit . Quarry Gray Model Outlander International
-
148715002182 Red LH Front Fender Kit. Viper Red Outlander Model North AmericaRed LH Front Fender Kit. Viper Red Outlander Model North America
-
148715002246 Red LH Front Fender Kit. Viper Red Out-Max Model North AmericaRed LH Front Fender Kit. Viper Red Out-Max Model North America
-
148715003184 Red LH Front Fender Kit . Viper Red Model InternationalRed LH Front Fender Kit . Viper Red Model International
-
148715002257 White LH Front Fender Kit. White Model Outlander North AmericaWhite LH Front Fender Kit. White Model Outlander North America
-
148715002257 White LH Front Fender Kit. White Model Out-Max North AmericaWhite LH Front Fender Kit. White Model Out-Max North America
-
148715002258 White LH Front Fender Kit. White Model InternationalWhite LH Front Fender Kit. White Model International
-
148715002180 Yellow LH Front Fender Kit. Yellow Model Outlander North AmericaYellow LH Front Fender Kit. Yellow Model Outlander North America
-
148715002248 Yellow LH Front Fender Kit. Yellow Model Out-Max North AmericaYellow LH Front Fender Kit. Yellow Model Out-Max North America
-
148715002199 Yellow LH Front Fender Kit. Yellow Model Outlander Except North AmericaYellow LH Front Fender Kit. Yellow Model Outlander Except North America
-
148715002249 Yellow LH Front Fender Kit. Yellow Model Out-Max EuropeYellow LH Front Fender Kit. Yellow Model Out-Max Europe
-
149715001757 Black RH Front Fender Kit. P-XTP Outlander North AmericaBlack RH Front Fender Kit. P-XTP Outlander North America
-
149715001789 Black RH Front Fender Kit. P-XTP Out-Max North AmericaBlack RH Front Fender Kit. P-XTP Out-Max North America
-
149715002207 Black RH Front Fender Kit. P-XTP Except North AmericaBlack RH Front Fender Kit. P-XTP Except North America
-
149715001514 Black RH Front Fender Kit. P-XMR 650 North AmericaBlack RH Front Fender Kit. P-XMR 650 North America
-
149715002311 Black RH Front Fender Kit. P-XMR 650 InternationalBlack RH Front Fender Kit. P-XMR 650 International
-
149715001826 Black RH Front Fender Kit. P-XMR 850 North AmericaBlack RH Front Fender Kit. P-XMR 850 North America
-
149715002309 Black RH Front Fender Kit. P-XMR 850 InternationalBlack RH Front Fender Kit. P-XMR 850 International
-
149715001826 Black RH Front Fender Kit. P-XMR 1000 White/Red/Black North AmericaBlack RH Front Fender Kit. P-XMR 1000 White/Red/Black North America
-
149715002309 Black RH Front Fender Kit. P-XMR 1000 White/Red/Black InternationalBlack RH Front Fender Kit. P-XMR 1000 White/Red/Black International
-
149715003254 Black RH Front Fender Kit. P-XMR BlueBlack RH Front Fender Kit. P-XMR Blue
-
149715002991 Painted Black RH Front Fender Kit. P-XMR Digital Camo North AmericaPainted Black RH Front Fender Kit. P-XMR Digital Camo North America
-
149715002993 Painted Black RH Front Fender Kit. P-XMR Digital Camo InternationalPainted Black RH Front Fender Kit. P-XMR Digital Camo International
-
149715003202 Matte Black RH Front Fender Kit. Matte Black Model North AmericaMatte Black RH Front Fender Kit. Matte Black Model North America
-
149715003208 Camo RH Front Fender Kit. Camo Model North AmericaCamo RH Front Fender Kit. Camo Model North America
-
149715003210 Camo RH Front Fender Kit. Camo Model InternationalCamo RH Front Fender Kit. Camo Model International
-
149715003207 Cognac RH Front Fender Kit. Cognac Model Except North AmericaCognac RH Front Fender Kit. Cognac Model Except North America
-
149715003205 Cognac RH Front Fender Kit . Cognac Model North AmericaCognac RH Front Fender Kit . Cognac Model North America
-
149715002590 Brushed Aluminium RH Front Fender Kit. Brushed Aluminum Model Outlander North AmericaBrushed Aluminium RH Front Fender Kit. Brushed Aluminum Model Outlander North America
-
149715002618 Brushed Aluminum RH Front Fender Kit. Brushed Aluminum Model Out-Max North AmericaBrushed Aluminum RH Front Fender Kit. Brushed Aluminum Model Out-Max North America
-
149715002620 Brushed Aluminum RH Front Fender Kit. Brushed Aluminum Model Except North AmericaBrushed Aluminum RH Front Fender Kit. Brushed Aluminum Model Except North America
-
149715002853 Deep Pewter RH Front Fender Kit. Deep Pewter Model North americaDeep Pewter RH Front Fender Kit. Deep Pewter Model North america
-
149715002855 Deep Pewter RH Front Fender Kit. Deep Pewter Model InternationalDeep Pewter RH Front Fender Kit. Deep Pewter Model International
-
149715002209 Grey RH Front Fender Kit. Quarry Gray Model Outlander North AmericaGrey RH Front Fender Kit. Quarry Gray Model Outlander North America
-
149715002267 Grey RH Front Fender Kit. Quarry Gray Model Out-Max North AmericaGrey RH Front Fender Kit. Quarry Gray Model Out-Max North America
-
149715002211 Grey RH Front Fender Kit. Quarry Gray Model InternationalGrey RH Front Fender Kit. Quarry Gray Model International
-
149715001512 Red RH Front Fender Kit. Viper Red Model Outlander North AmericaRed RH Front Fender Kit. Viper Red Model Outlander North America
-
149715001781 Red RH Front Fender Kit. Viper Red Model Out-Max North AmericaRed RH Front Fender Kit. Viper Red Model Out-Max North America
-
149715002206 Red RH Front Fender Kit. Viper Red Model InternationalRed RH Front Fender Kit. Viper Red Model International
-
149715002603 White RH Front Fender Kit. White Model Outlander North AmericaWhite RH Front Fender Kit. White Model Outlander North America
-
149715001761 White RH Front Fender Kit. White Model Out-Max North AmericaWhite RH Front Fender Kit. White Model Out-Max North America
-
149715002265 White RH Front Fender Kit. White Model InternationalWhite RH Front Fender Kit. White Model International
-
149715001510 Yellow RH Front Fender Kit. Yellow Model Outlander North AmericaYellow RH Front Fender Kit. Yellow Model Outlander North America
-
149715001791 Yellow RH Front Fender Kit. Yellow Model Out-Max North AmericaYellow RH Front Fender Kit. Yellow Model Out-Max North America
-
149715002208 Yellow RH Front Fender Kit. Yellow Model Except North AmericaYellow RH Front Fender Kit. Yellow Model Except North America
-
160705008575 Green LH Radiator Support. P-XMR Digital CamoGreen LH Radiator Support. P-XMR Digital Camo
-
160705008576 Green RH Radiator Support. P-XMR Digital CamoGreen RH Radiator Support. P-XMR Digital Camo
-
160705009893 Red Rad Bracket LH. P-XMR White/Red/BlackRed Rad Bracket LH. P-XMR White/Red/Black
-
160705009894 Red Rad Bracket RH. P-XMR White/Red/BlackRed Rad Bracket RH. P-XMR White/Red/Black
-
160705009894 Red Rad Bracket RH . P-XMR White/Red/BlackRed Rad Bracket RH . P-XMR White/Red/Black
-
160705009895 Blue Rad Bracket LH. P-XMR Gulfstream BlueBlue Rad Bracket LH. P-XMR Gulfstream Blue
-
160705009896 Blue Rad Bracket RH. P-XMR Gulfstream BlueBlue Rad Bracket RH. P-XMR Gulfstream Blue
-
165293150104 Pop Rivet 3/16. Package Pro, XMRPop Rivet 3/16. Package Pro, XMR
-
170705008438 Heat Shield. Package XMR 1000Heat Shield. Package XMR 1000
Все узлы модели:
- 00- Model Numbers
- 01- Cooling System - Except XMR
- 01- Cooling System - XMR
- 01- Crankcase - 1000 EFI
- 01- Crankcase - 1000R EFI (Except XMR)
- 01- Crankcase - 1000R EFI (XMR)
- 01- Crankcase - 570 EFI
- 01- Crankcase - 570 EFI (Package PRO)
- 01- Crankcase - 650 EFI
- 01- Crankcase - 650 EFI (Package PRO)
- 01- Crankcase - 850 EFI
- 01- Crankshaft and Pistons - 570 EFI
- 01- Crankshaft and Pistons - 650 EFI
- 01- Crankshaft, Piston and Cylinder - 1000 EFI
- 01- Crankshaft, Piston and Cylinder - 1000R EFI
- 01- Crankshaft, Piston and Cylinder - 850 EFI
- 01- Cylinder Head, Front - 1000 EFI
- 01- Cylinder Head, Front - 1000R EFI
- 01- Cylinder Head, Front - 570 EFI
- 01- Cylinder Head, Front - 650 EFI
- 01- Cylinder Head, Front - 850 EFI
- 01- Cylinder Head, Rear - 1000 EFI
- 01- Cylinder Head, Rear - 1000R EFI
- 01- Cylinder Head, Rear - 570 EFI
- 01- Cylinder Head, Rear - 650 EFI
- 01- Cylinder Head, Rear - 850 EFI
- 01- Engine and Engine Support - All Models
- 01- Engine Cooling - 1000 EFI
- 01- Engine Cooling - 1000R EFI
- 01- Engine Cooling - 570 EFI
- 01- Engine Cooling - 650 EFI
- 01- Engine Cooling - 850 EFI
- 01- Engine Lubrication - 1000 EFI
- 01- Engine Lubrication - 1000R EFI
- 01- Engine Lubrication - 570 EFI
- 01- Engine Lubrication - 570 EFI (Package PRO)
- 01- Engine Lubrication - 650 EFI
- 01- Engine Lubrication - 650 EFI (Package PRO)
- 01- Engine Lubrication - 850 EFI
- 01- Exhaust System - All Models
- 01- Gear Box and Components - 1000R EFI
- 01- Gear Box and Components - 570 EFI
- 01- Gear Box and Components - 650 EFI-XMR 850 EFI
- 01- Gear Box and Components - 850 EFI
- 01- Gear Box and Components - GBPS - Package PRO
- 01- Gear Box and Components - GBPS - XMR 1000R EFI
- 01- Gear Box and Components - XMR 850 EFI
- 01- Gear Box Assy - 1000R EFI
- 01- Gear Box Assy - 570 EFI
- 01- Gear Box Assy - 650 EFI-XMR 850 EFI
- 01- Gear Box Assy - 850 EFI
- 01- Gear Box Assy - GBPS - Package PRO
- 01- Gear Box Assy - GBPS - XMR 1000R EFI
- 01- Gear Box Assy - XMR 850 EFI
- 01- Gear Box Output Shaft - 1000R EFI
- 01- Gear Box Output Shaft - 570 EFI
- 01- Gear Box Output Shaft - 650 EFI-XMR 850 EFI
- 01- Gear Box Output Shaft - 850 EFI
- 01- Gear Box Output Shaft - GBPS - Package PRO
- 01- Gear Box Output Shaft - GBPS - XMR 1000R EFI
- 01- Gear Box Output Shaft - XMR 850 EFI
- 02- Air Intake - Except XMR
- 02- Air Intake - XMR
- 02- Air Intake Manifold and Throttle Body - 1000 EFI
- 02- Air Intake Manifold and Throttle Body - 1000R EFI
- 02- Air Intake Manifold and Throttle Body - 570 EFI
- 02- Air Intake Manifold and Throttle Body - 650 EFI
- 02- Air Intake Manifold and Throttle Body - 850 EFI
- 02- Fuel System - All Models
- 03- Magneto and Electric Starter - 1000 EFI
- 03- Magneto and Electric Starter - 1000R EFI (Outlander)
- 03- Magneto and Electric Starter - 570 EFI (Outlander)
- 03- Magneto and Electric Starter - 650 EFI
- 03- Magneto and Electric Starter - 850 EFI (Outlander MAX)
- 03- Magneto and Electric Starter - 850 EFI (Outlander)
- 05- Transmission - 1000 EFI
- 05- Transmission - 1000R EFI (Outlander Except XMR)
- 05- Transmission - 1000R EFI (Outlander Package XMR)
- 05- Transmission - 570 EFI
- 05- Transmission - 570 EFI (Package PRO)
- 05- Transmission - 650 EFI
- 05- Transmission - 850 EFI (Outlander MAX)
- 05- Transmission - 850 EFI (Outlander)
- 06- Brakes - All Models
- 07- Drive System, Front - All Models
- 07- Front Suspension - All Models
- 07- Steering - All Models
- 08- Drive Shaft - 1000 EFI
- 08- Drive Shaft - 1000R EFI
- 08- Drive Shaft - 570 EFI
- 08- Drive Shaft - 650 EFI
- 08- Drive Shaft - 850 EFI
- 08- Drive System, Rear - All Models
- 08- Rear Suspension - Except Package LTD
- 08- Rear Suspension - Package LTD
- • 09- Body and Accessories - All Models
- 09- Decals - All Models
- 09- Frame - All Models
- 09- Rear Cargo Box - All Models
- 09- Seat - All Models
- 10- Electrical - Winch
- 10- Electrical All Models
- 10- Electrical Harness - Main
- 10- Electrical Harness Assembly - Europe
- 10- Engine Harness and Electronic Module - 1000 EFI (Package PRO-MAX PRO)
- 10- Engine Harness and Electronic Module - 1000R EFI (Outlander Except Package XMR)
- 10- Engine Harness and Electronic Module - 1000R EFI (Outlander Package XMR)
- 10- Engine Harness and Electronic Module - 570 EFI (Outlander)
- 10- Engine Harness and Electronic Module - 650 EFI
- 10- Engine Harness and Electronic Module - 650 EFI (Package PRO)
- 10- Engine Harness and Electronic Module - 850 EFI (Outlander MAX)
- 10- Engine Harness and Electronic Module - 850 EFI (Outlander)
- 11- T3 Parts (MAX Pro Models)
- 11- T3 Parts (MAX XTP Models)
- 11- T3 Parts (Pro Models)
