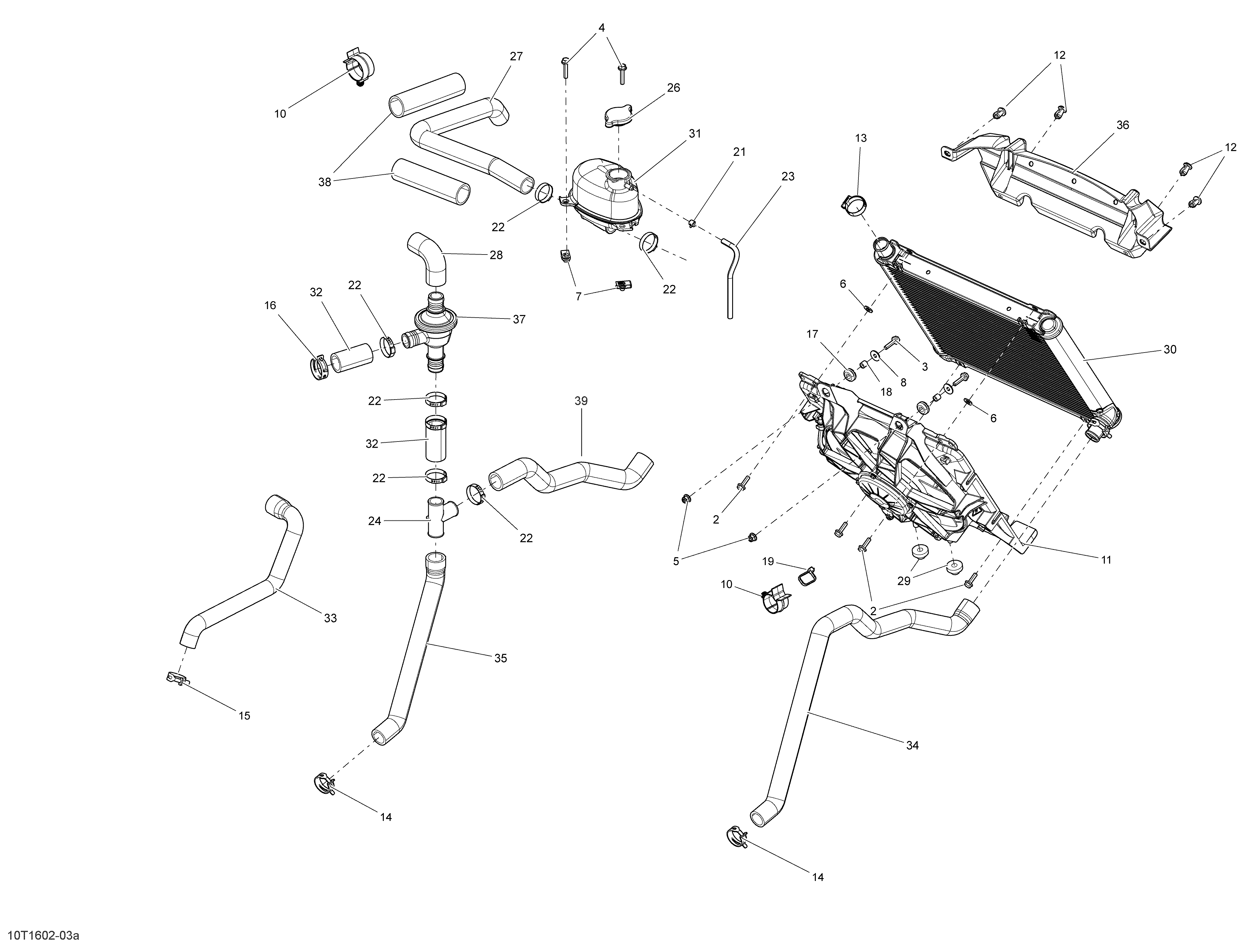

01- Cooling System - Except XMR для BRP Outlander - Outlander MAX - 2016
‹-+›
-
№АртикулНазвание
-
2207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
3207662534 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
4207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
5233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
6234081410 Flat Washer 8 mmFlat Washer 8 mm
-
7250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
8250200082 Flat WasherFlat Washer
-
10275500590 RetainerRetainer
-
11709200563 Fan Ass'y. Engine 570, 650, 850Fan Ass'y. Engine 570, 650, 850
-
11709200564 Fan Ass'y. Engine 1000 - 1000RFan Ass'y. Engine 1000 - 1000R
-
12293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
13293650098 Norma Gear ClampNorma Gear Clamp
-
14293650108 Norma Spring ClampNorma Spring Clamp
-
15293650109 Norma Spring ClampNorma Spring Clamp
-
16293650166 Norma Spring ClampNorma Spring Clamp
-
17293720053 GrommetGrommet
-
18293900105 BushingBushing
-
19414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
21414554800 Spring ClampSpring Clamp
-
22509000162 Gear ClampGear Clamp
-
23415080200 Hose, PolyurethaneHose, Polyurethane
-
24509000219 T-Fitting. Engine 850, 1000 - 1000RT-Fitting. Engine 850, 1000 - 1000R
-
26709200207 Pressure CapPressure Cap
-
27709200278 Radiator Inlet HoseRadiator Inlet Hose
-
28709200280 Thermostat Inlet Hose. Engine 850, 1000 - 1000RThermostat Inlet Hose. Engine 850, 1000 - 1000R
-
29709200285 GrommetGrommet
-
30709200286 RadiatorRadiator
-
31709200297 Coolant TankCoolant Tank
-
32709200299 Hose. Engine 850, 1000 - 1000RHose. Engine 850, 1000 - 1000R
-
33709200310 Engine Outlet Hose. Engine 570, 650Engine Outlet Hose. Engine 570, 650
-
34709200391 Radiator Outlet Hose. Engine 570, 650Radiator Outlet Hose. Engine 570, 650
-
35709200392 Hose. Engine 850, 1000 - 1000RHose. Engine 850, 1000 - 1000R
-
36709200393 Air DeflectorAir Deflector
-
37709200406 Thermostat. Engine 850, 1000 - 1000RThermostat. Engine 850, 1000 - 1000R
-
38515176260 Tubing 35 mmTubing 35 mm
-
39709200390 Radiator Outlet Hose. Engine 850, 1000 - 1000RRadiator Outlet Hose. Engine 850, 1000 - 1000R
