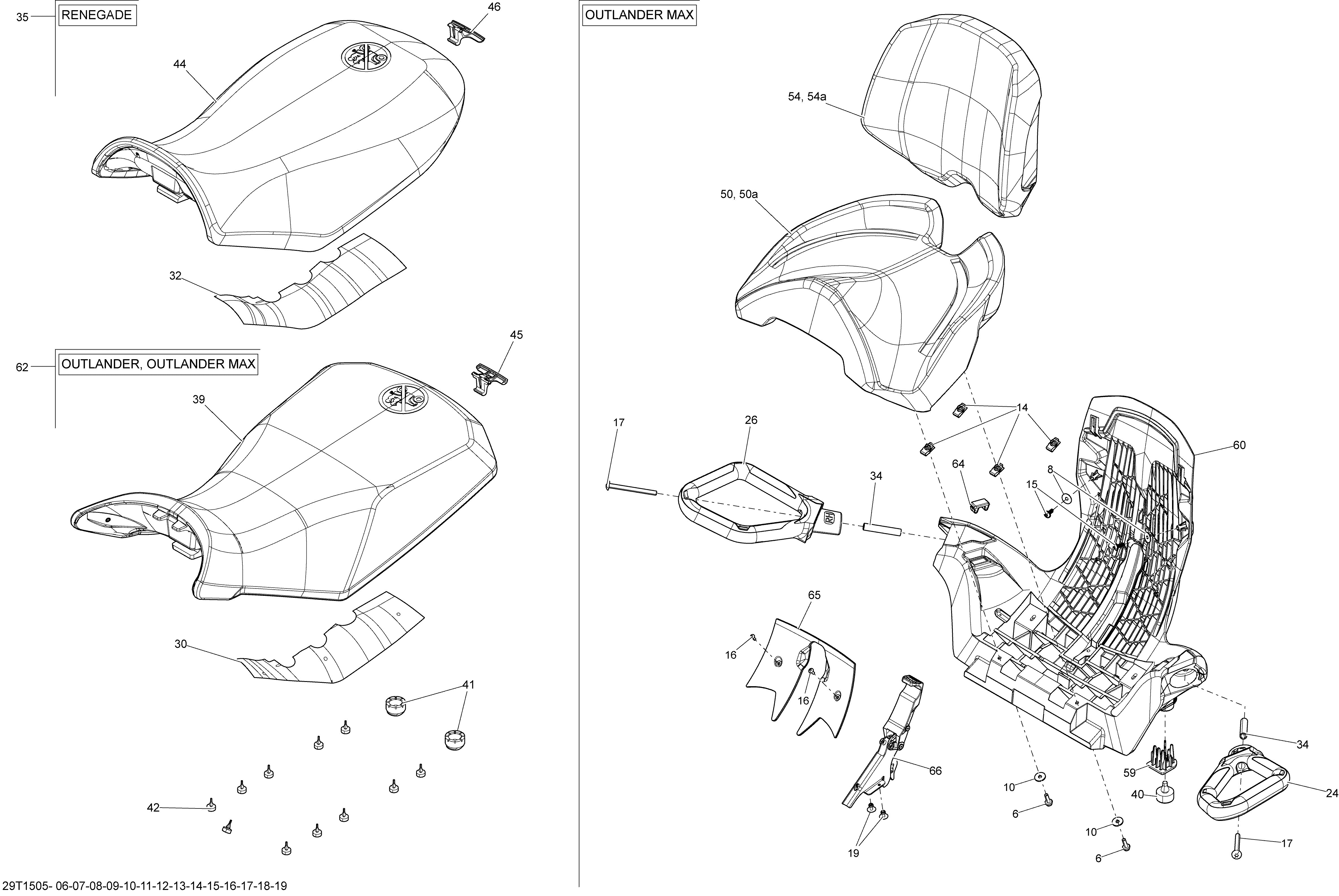

09- Seat _29T1512 для BRP Renegade 800R EFI - 2015
-
№АртикулНазвание
-
32705005762 Heat ShieldHeat Shield
-
35708001504 Seat Ass'y. Package-STDSeat Ass'y. Package-STD
-
35708001505 Seat Ass'y. Package-XXC BlackSeat Ass'y. Package-XXC Black
-
35708001579 Seat Ass'y. Package-XXC Digital CamoSeat Ass'y. Package-XXC Digital Camo
-
41708000760 Bumper RubberBumper Rubber
-
42708000759 Rubber StopperRubber Stopper
-
44708000887 Seat Cover. Package-STDSeat Cover. Package-STD
-
44708000886 Seat Cover. Package-XXC BlackSeat Cover. Package-XXC Black
-
44708001580 Seat Cover. Package-XXC Digital CamoSeat Cover. Package-XXC Digital Camo
-
46708000914 LatchLatch
