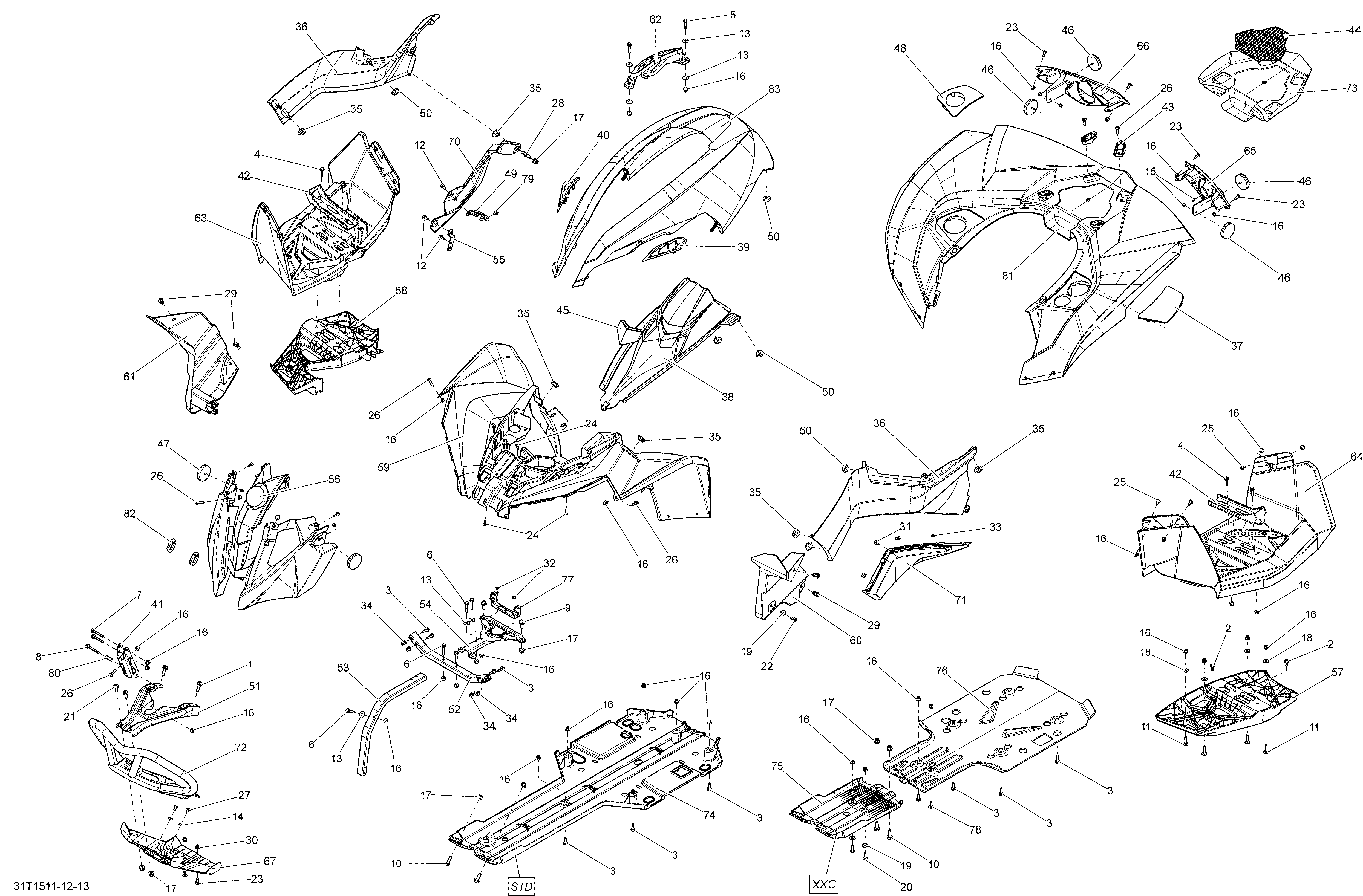

09- Body And Accessories _31T1512 для BRP Renegade 800R EFI - 2015
-
№АртикулНазвание
-
1207582544 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
2207661684 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
3207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4207662584 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
5207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
6207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
7207664544 Flanged Hex. Screw M6 X 45Flanged Hex. Screw M6 X 45
-
8207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
9207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
10207682534 Hex. Flanged ScrewHex. Flanged Screw
-
11207763044 Carriage Bolt M6 X 30Carriage Bolt M6 X 30
-
12210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
13224061201 Flat WasherFlat Washer
-
14232862412 Square Nut M6Square Nut M6
-
15233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
16233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
17233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
18234062410 Flat Washer 6 mmFlat Washer 6 mm
-
19234062670 Flat WasherFlat Washer
-
20250000712 Torx ScrewTorx Screw
-
21250000117 Torx Screw M8 X 20, Scotch GripTorx Screw M8 X 20, Scotch Grip
-
22250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
23250000721 Torx ScrewTorx Screw
-
24250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
25250000261 Torx Screw M6 X 16Torx Screw M6 X 16
-
26250000284 Torx Screw M6 x 25Torx Screw M6 x 25
-
27250000454 Torx Screw M6 X 12Torx Screw M6 X 12
-
28250300039 Ball Head StudBall Head Stud
-
29293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
30293450232 InsertInsert
-
31293830005 Rubber BumperRubber Bumper
-
32390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
33414479100 ClipClip
-
34293450275 InsertInsert
-
35705000321 Oval WasherOval Washer
-
36705002958 Black LH Lateral Panel. Model-YellowBlack LH Lateral Panel. Model-Yellow
-
36705002959 Black RH Lateral Panel. Model-YellowBlack RH Lateral Panel. Model-Yellow
-
36705002946 Yellow LH Lateral Panel. Model-BlackYellow LH Lateral Panel. Model-Black
-
36705002949 Yellow RH Lateral Panel. Model-BlackYellow RH Lateral Panel. Model-Black
-
37705001910 Black LH CapBlack LH Cap
-
38705003556 DashboardDashboard
-
39705002276 LH GrillLH Grill
-
40705002277 RH GrillRH Grill
-
41705002282 SupportSupport
-
42705002326 FootrestFootrest
-
43705002342 HookHook
-
44705002343 Rear CapetRear Capet
-
45705002353 CapCap
-
46705002408 Red ReflectorRed Reflector
-
47705002409 Amber ReflectorAmber Reflector
-
48705002420 Neck CapNeck Cap
-
49705002667 Engine Cover SupportEngine Cover Support
-
50705003264 GrommetGrommet
-
51705003505 Bumper SupportBumper Support
-
52705003510 Body TubeBody Tube
-
53705003511 Front TubeFront Tube
-
54705003599 Painted BracketPainted Bracket
-
55705003646 Engine Cover SupportEngine Cover Support
-
56705003948 Front FaciaFront Facia
-
57705004176 LH FootboardLH Footboard
-
58705004177 RH FootboardRH Footboard
-
59715002157 Yellow Front Fender Kit. Model-Yellow North AmericaYellow Front Fender Kit. Model-Yellow North America
-
59715002158 Yellow Front Fender Kit. Model-Yellow Except North AmericaYellow Front Fender Kit. Model-Yellow Except North America
-
59715002154 Black Front Fender Kit. Model-Black North AmericaBlack Front Fender Kit. Model-Black North America
-
59715002155 Black Front Fender Kit. Model-Black Except North AmericaBlack Front Fender Kit. Model-Black Except North America
-
60705004307 LH Inner FenderLH Inner Fender
-
61705004308 RH Inner FenderRH Inner Fender
-
62705003838 Lever IndicatorLever Indicator
-
63705004729 RH Footboard/FenderRH Footboard/Fender
-
64705004730 LH Footboard/FenderLH Footboard/Fender
-
65705004731 LH Rear FaciaLH Rear Facia
-
65705004927 LH Rear Facia. Model-EuropeLH Rear Facia. Model-Europe
-
66705004732 RH Rear FaciaRH Rear Facia
-
66705004926 RH Rear Facia. Model-EuropeRH Rear Facia. Model-Europe
-
67705004850 Front Bumper PlateFront Bumper Plate
-
70705004966 Engine CoverEngine Cover
-
71705004988 Panel ExtensionPanel Extension
-
72705004993 Welded Front BumperWelded Front Bumper
-
73705005840 Reflective SheetReflective Sheet
-
74715002374 Protective Plate Kit. Model-STDProtective Plate Kit. Model-STD
-
75705007820 Skid Plate. Package-XXcSkid Plate. Package-XXc
-
76705204031 Central Skid Plate. Package-XXcCentral Skid Plate. Package-XXc
-
78207762044 Carriage Bolt M6 X 20. Package-XXcCarriage Bolt M6 X 20. Package-XXc
-
80705005809 SpacerSpacer
-
81715001881 Rear Fender, Yellow. Model-Yellow North AmericaRear Fender, Yellow. Model-Yellow North America
-
81715002161 Rear Fender, Yellow. Model-Yellow EuropeRear Fender, Yellow. Model-Yellow Europe
-
81715002163 Rear Fender, Yellow. Model-Yellow InternationalRear Fender, Yellow. Model-Yellow International
-
81715001887 Rear Fender, Black. Model-Black North AmericaRear Fender, Black. Model-Black North America
-
81715002164 Rear Fender, Black. Model-Black InternationalRear Fender, Black. Model-Black International
-
81715002165 Rear Fender, Black. Model-Black EuropeRear Fender, Black. Model-Black Europe
-
82705003668 Oblong GrommetOblong Grommet
-
83705003106 Yellow Central Panel. Model-YellowYellow Central Panel. Model-Yellow
-
83705003106 Yellow Central Panel. Model-BlackYellow Central Panel. Model-Black
