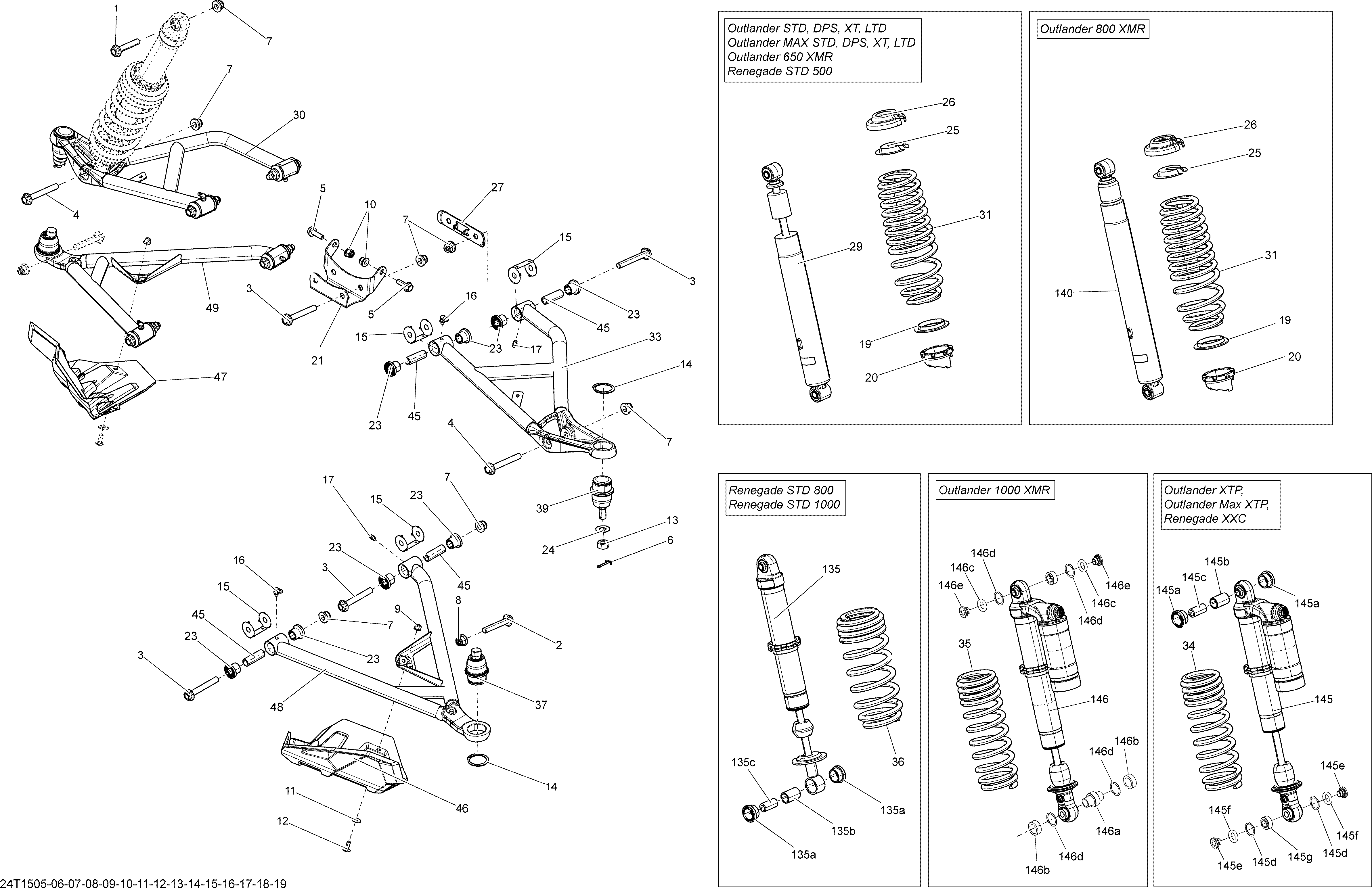

07- Front Suspension _24T1518 для BRP Outlander MAX 1000 EFI LTD - 2015
-
№АртикулНазвание
-
1207605546 Flanged Hex. Screw M10 X 55Flanged Hex. Screw M10 X 55
-
2207606044 Hex. Flange Screw M10 X 60Hex. Flange Screw M10 X 60
-
3207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
4207607587 Flanged Hex. Screw M10 X 75Flanged Hex. Screw M10 X 75
-
5207682534 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
6211400017 Cotter PinCotter Pin
-
7233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
8233201434 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
9233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
10233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
11234062670 Flat WasherFlat Washer
-
12250000261 Torx Screw M6 X 16Torx Screw M6 X 16
-
13250100099 Nut M12Nut M12
-
14293370035 CirclipCirclip
-
15703500875 Bushing Kit. Includes 23,45Bushing Kit. Includes 23,45
-
16293550056 Grease Fitting 90°Grease Fitting 90°
-
17408200700 Grease FittingGrease Fitting
-
19503187500 Spring GuideSpring Guide
-
20505070150 Adjustment CamAdjustment Cam
-
21705203247 Upper Front HolderUpper Front Holder
-
23703500875 Bushing Kit. Includes 15,45Bushing Kit. Includes 15,45
-
24250200086 Flat WasherFlat Washer
-
25706200785 CapCap
-
26706200881 Spring StopperSpring Stopper
-
27706200998 Front Suspension Cross PlateFront Suspension Cross Plate
-
29706201243 Shock AbsorberShock Absorber
-
30706201797 Black RH Upper ArmBlack RH Upper Arm
-
31706201251 Black SpringBlack Spring
-
33706201796 Black LH Upper ArmBlack LH Upper Arm
-
37706202045 Ball JointBall Joint
-
39706202044 Ball JointBall Joint
-
45703500875 Bushing Kit. Includes 15,23Bushing Kit. Includes 15,23
-
46706201829 LH Joint ProtectorLH Joint Protector
-
47706201830 RH Joint ProtectorRH Joint Protector
-
48706201874 Black LH Lower ArmBlack LH Lower Arm
-
49706201875 Black RH Lower ArmBlack RH Lower Arm
