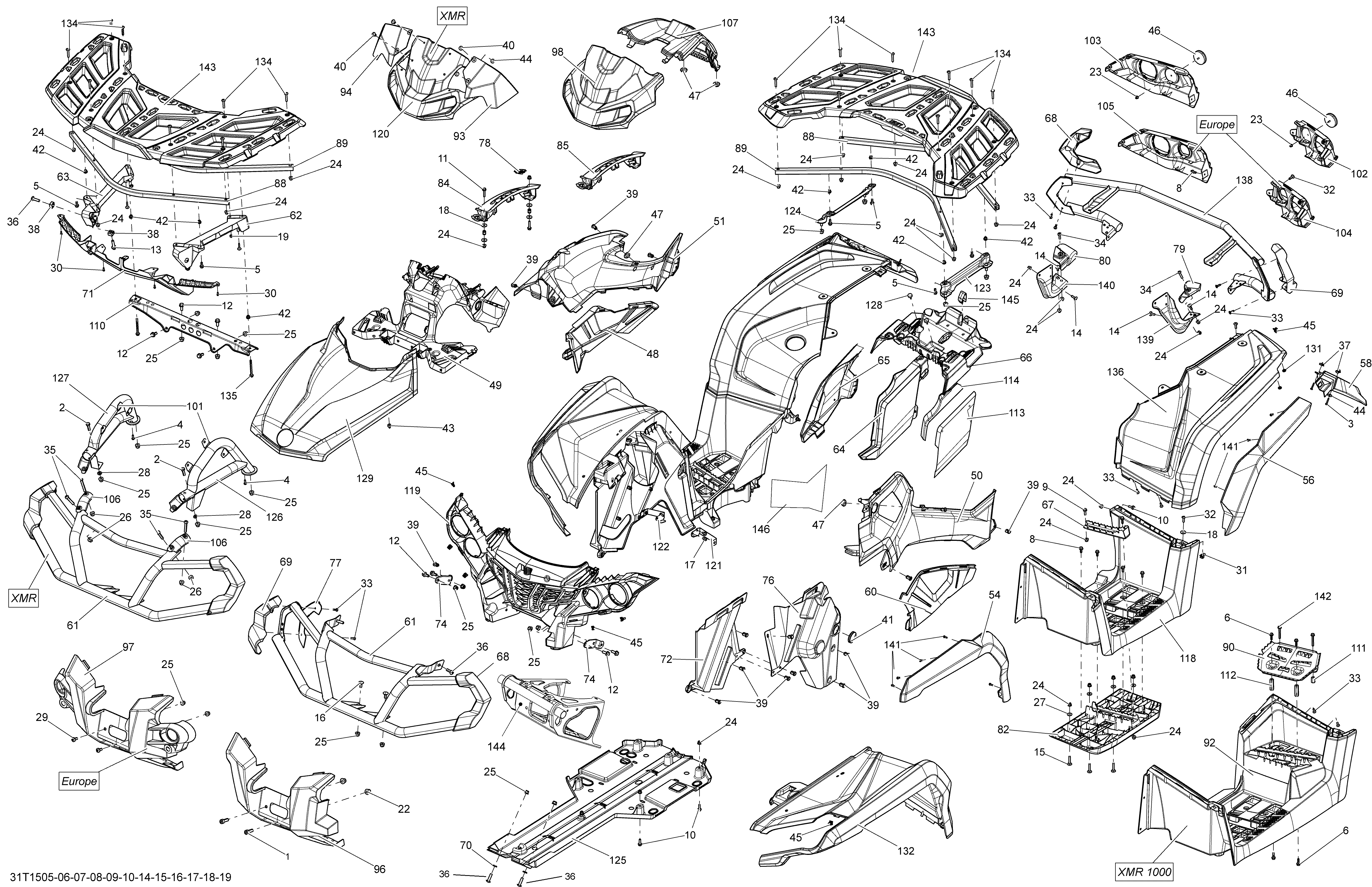

09- Body And Accessories _31T1518 для BRP Outlander MAX 1000 EFI LTD - 2015
-
№АртикулНазвание
-
1205003044 Socket Screw M10 x 30Socket Screw M10 x 30
-
3207342544 Hex. Cap Screw M4 X 25Hex. Cap Screw M4 X 25
-
4250000101 Plastite Screw Type K-40, M4 X 25Plastite Screw Type K-40, M4 X 25
-
5207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
8207661684 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
10207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
11207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
12207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
13207683534 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
14207762044 Carriage Bolt M6 X 20Carriage Bolt M6 X 20
-
15207763584 Carriage Bolt M6 X 35Carriage Bolt M6 X 35
-
16207782044 Carriage Bolt, M8 X 20Carriage Bolt, M8 X 20
-
18224061201 Flat WasherFlat Washer
-
19232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
22233201434 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
23233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
24233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
25233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
27234062410 Flat Washer 6 mmFlat Washer 6 mm
-
29205003044 Socket Screw M10 x 30Socket Screw M10 x 30
-
30241140060 Screw K40 X 10Screw K40 X 10
-
31250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
32250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
33250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
34250000371 Torx Screw M6 X 30 StainlessTorx Screw M6 X 30 Stainless
-
36250000544 Torx Screw M8 X 30Torx Screw M8 X 30
-
37250100143 Extruded Panel Nut M4 X 0.7Extruded Panel Nut M4 X 0.7
-
38269501943 Elastic Nut Housing M8Elastic Nut Housing M8
-
39293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
41293250242 Rubber CoverRubber Cover
-
42293450274 InsertInsert
-
43293830005 Rubber BumperRubber Bumper
-
45517302785 ClipClip
-
46705002408 Red ReflectorRed Reflector
-
47705003264 GrommetGrommet
-
48705003444 Engine CoverEngine Cover
-
49715001552 Dash Support KitDash Support Kit
-
50705006045 White LH Lateral PanelWhite LH Lateral Panel
-
50705008590 Deep Pewter Satin LH Lateral Panel. Model-Deep Pewter SatinDeep Pewter Satin LH Lateral Panel. Model-Deep Pewter Satin
-
51705008591 Deep Pewter Satin RH Lateral Panel. Model-Deep Pewter SatinDeep Pewter Satin RH Lateral Panel. Model-Deep Pewter Satin
-
51705009119 White RH Lateral PanelWhite RH Lateral Panel
-
54705003914 LH Front MudguardLH Front Mudguard
-
54705003915 RH Front MudguardRH Front Mudguard
-
56705003918 LH Rear MudguardLH Rear Mudguard
-
56705003920 RH Rear MudguardRH Rear Mudguard
-
58705003921 LH Rear Mudguard, Part 2LH Rear Mudguard, Part 2
-
58705003922 RH Rear Mudguard, Part 2RH Rear Mudguard, Part 2
-
60705004147 LH Extension PannelLH Extension Pannel
-
61705005018 Front BumperFront Bumper
-
62705006700 LH Support Ass'yLH Support Ass'y
-
63705006701 RH Support Ass'yRH Support Ass'y
-
64715001897 LH Extension PanelLH Extension Panel
-
65705004348 RH Extension PanelRH Extension Panel
-
66705007948 Seat HolderSeat Holder
-
68705004409 Cap (Front LH) (Rear RH)Cap (Front LH) (Rear RH)
-
69705004410 Cap (Front RH) (Rear LH)Cap (Front RH) (Rear LH)
-
70705004497 RingRing
-
71705004523 Lugage Rack MouldingLugage Rack Moulding
-
72705004558 RH Inner FenderRH Inner Fender
-
72705004557 LH Inner FenderLH Inner Fender
-
74705004565 Lower Fender SupportLower Fender Support
-
76705004587 RH Inner FenderRH Inner Fender
-
76705004588 LH Inner FenderLH Inner Fender
-
77705004987 Bracket CoverBracket Cover
-
79705005094 LH BracketLH Bracket
-
80705005095 RH BracketRH Bracket
-
82705005254 LH. FootboardLH. Footboard
-
82705005253 RH. FootboardRH. Footboard
-
84705005258 IndicatorIndicator
-
88705005469 TubeTube
-
89705005470 TubeTube
-
96705006299 Front Guard Plate. Except EuropeFront Guard Plate. Except Europe
-
97705006300 Front Guard Plate. EuropeFront Guard Plate. Europe
-
98705006322 Gage SupportGage Support
-
102705006643 LH Rear FaciaLH Rear Facia
-
103705006650 RH Rear FaciaRH Rear Facia
-
107715001765 Dash KitDash Kit
-
110705006812 Cargo Rack Center SupportCargo Rack Center Support
-
113705006870 Heat ShieldHeat Shield
-
114705006871 Heat ShieldHeat Shield
-
118705003525 LH Footboard, MaxLH Footboard, Max
-
118705003521 RH Footboard, MaxRH Footboard, Max
-
119705007041 Front FaciaFront Facia
-
120705006322 Gage SupportGage Support
-
123705007277 LH SupportLH Support
-
124705007278 RH SupportRH Support
-
125705007553 Central Skid PlateCentral Skid Plate
-
128708000759 Rubber StopperRubber Stopper
-
129715001845 White Hood KitWhite Hood Kit
-
129715002631 Deep Pewter Hood Kit. Model-Deep Pewter Satin North AmericaDeep Pewter Hood Kit. Model-Deep Pewter Satin North America
-
129715002612 Deep Pewter Hood Kit. Model-Deep Pewter Satin InternationalDeep Pewter Hood Kit. Model-Deep Pewter Satin International
-
129715002612 Deep Pewter Hood Kit. Model-Deep Pewter Satin EuropeDeep Pewter Hood Kit. Model-Deep Pewter Satin Europe
-
131732610072 Push NutPush Nut
-
132715002257 White LH Front Fender KitWhite LH Front Fender Kit
-
132715001761 White RH Front Fender KitWhite RH Front Fender Kit
-
132715002614 Deep Pewter LH Front Fender Kit. Model-Deep Pewter Satin North AmericaDeep Pewter LH Front Fender Kit. Model-Deep Pewter Satin North America
-
132715002853 Deep Pewter RH Front Fender Kit. Model-Deep Pewter Satin North AmericaDeep Pewter RH Front Fender Kit. Model-Deep Pewter Satin North America
-
132715002616 Deep Pewter LH Front Fender Kit. Model-Deep Pewter Satin InternationalDeep Pewter LH Front Fender Kit. Model-Deep Pewter Satin International
-
132715002855 Deep Pewter RH Front Fender Kit. Model-Deep Pewter Satin InternationalDeep Pewter RH Front Fender Kit. Model-Deep Pewter Satin International
-
132715002616 Deep Pewter LH Front Fender Kit. Model-Deep Pewter Satin EuropeDeep Pewter LH Front Fender Kit. Model-Deep Pewter Satin Europe
-
132715002855 Deep Pewter RH Front Fender Kit. Model-Deep Pewter Satin EuropeDeep Pewter RH Front Fender Kit. Model-Deep Pewter Satin Europe
-
134250000646 Torx Screw M6 X 35Torx Screw M6 X 35
-
135207567044 Hex. Flanged Screw M6x70, Scotch GripHex. Flanged Screw M6x70, Scotch Grip
-
136715001808 White LH Rear Fender KitWhite LH Rear Fender Kit
-
136715001839 White RH Rear Fender KitWhite RH Rear Fender Kit
-
136715002626 Deep Pewter LH Rear Fender Kit. Model-Deep Pewter Satin North AmericaDeep Pewter LH Rear Fender Kit. Model-Deep Pewter Satin North America
-
136705008570 Deep Pewter RH Rear Fender Kit. Model-Deep Pewter Satin North AmericaDeep Pewter RH Rear Fender Kit. Model-Deep Pewter Satin North America
-
136715002628 Deep Pewter LH Rear Fender Kit. Model-Deep Pewter Satin InternationalDeep Pewter LH Rear Fender Kit. Model-Deep Pewter Satin International
-
136715002634 Deep Pewter RH Rear Fender Kit. Model-Deep Pewter Satin EuropeDeep Pewter RH Rear Fender Kit. Model-Deep Pewter Satin Europe
-
136715002629 Deep Pewter LH Rear Fender Kit. Model-Deep Pewter Satin EuropeDeep Pewter LH Rear Fender Kit. Model-Deep Pewter Satin Europe
-
136715002634 Deep Pewter RH Rear Fender Kit. Model-Deep Pewter Satin InternationalDeep Pewter RH Rear Fender Kit. Model-Deep Pewter Satin International
-
138705005019 Black BumperBlack Bumper
-
139705008164 LH Rear BracketLH Rear Bracket
-
140705008165 RH Rear BracketRH Rear Bracket
-
141241141340 Hex. Screw K40 X 13Hex. Screw K40 X 13
-
143715001852 Rack Kit. North AmericaRack Kit. North America
-
143715002784 Rack Kit. Europe, Int'lRack Kit. Europe, Int'l
-
144705009253 Black Front Bumper SupportBlack Front Bumper Support
-
145708200462 Rod CapRod Cap
