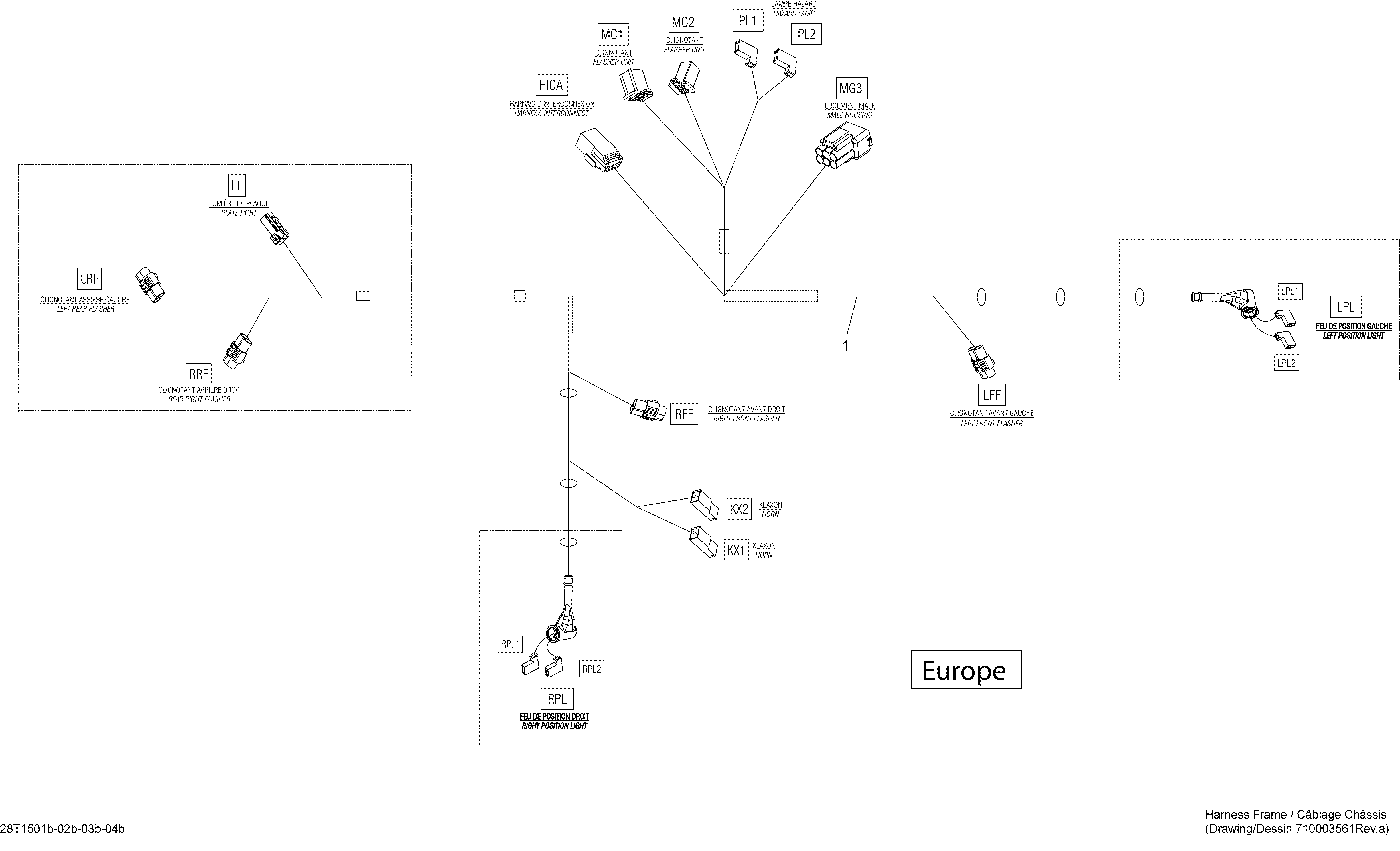

10- Electrical Harness, Frame Europe_28T1503b для BRP Outlander L 500 EFI - 2015
-
№АртикулНазвание
-
1710003561 Wiring Harness Assembly. Includes 1 To RRFWiring Harness Assembly. Includes 1 To RRF
-
HICA710001155 HousingHousing
-
HICA710001156 LockLock
-
HICA710001420 Male TerminalMale Terminal
-
KX1409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
KX1409010100 Female TerminalFemale Terminal
-
KX2409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
KX2409010100 Female TerminalFemale Terminal
-
LFF409012300 SealSeal
-
LFF409012100 Female TerminalFemale Terminal
-
LL515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
LL515175231 Female TerminalFemale Terminal
-
LPL710003269 Cap ProtectorCap Protector
-
LPL1409010300 Female TerminalFemale Terminal
-
LPL2409010300 Female TerminalFemale Terminal
-
LRF409012300 SealSeal
-
LRF409012100 Female TerminalFemale Terminal
-
MC1710004047 Female HousingFemale Housing
-
MC1710002315 TerminalTerminal
-
MC2710004048 Female HousingFemale Housing
-
MC2710002315 TerminalTerminal
-
MG3710001446 Male Housing Terminal, 6 CircuitsMale Housing Terminal, 6 Circuits
-
MG3710000080 CapCap
-
MG3409012300 SealSeal
-
MG3409011300 Male TerminalMale Terminal
-
PL1409010300 Female TerminalFemale Terminal
-
PL2409010300 Female TerminalFemale Terminal
-
RFF409012300 SealSeal
-
RFF409012100 Female TerminalFemale Terminal
-
RPL710003269 Cap ProtectorCap Protector
-
RPL1409010300 Female TerminalFemale Terminal
-
RPL2409010300 Female TerminalFemale Terminal
-
RRF409012300 SealSeal
-
RRF409012100 Female TerminalFemale Terminal
