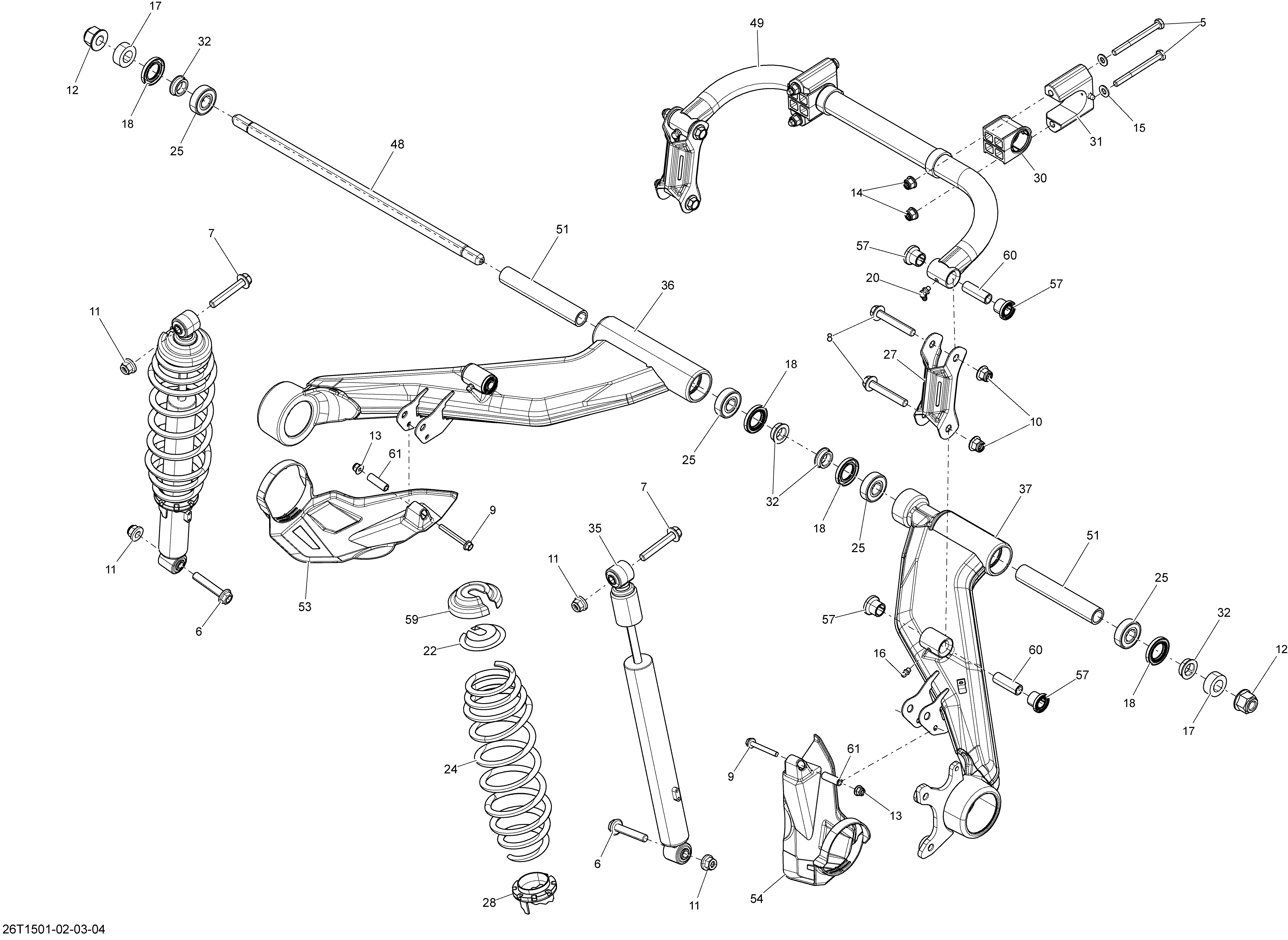

08- Rear Suspension _26T1503 для BRP Outlander L 500 EFI - 2015
-
№АртикулНазвание
-
5207088587 Hex,. Screw M8 X 85Hex,. Screw M8 X 85
-
6207605546 Flanged Hex. Screw M10 X 55Flanged Hex. Screw M10 X 55
-
7207606046 Flanged Hex. Screw M10 X 60Flanged Hex. Screw M10 X 60
-
8207606536 Hex Flange Screw M10 X 65Hex Flange Screw M10 X 65
-
9207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
10233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
11233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
12233211466 Hex. Flanged Elastic Nut M16Hex. Flanged Elastic Nut M16
-
13233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
14233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
15234081430 Flat Washer M8Flat Washer M8
-
16250000315 Grease FittingGrease Fitting
-
17250200112 Flat Washer M17Flat Washer M17
-
18293200144 SealSeal
-
20293550056 Grease Fitting 90°Grease Fitting 90°
-
22706200785 CapCap
-
24706000763 Black SpringBlack Spring
-
25706000826 Ball BearingBall Bearing
-
27706001020 Swaybar LinkageSwaybar Linkage
-
28706001033 Adjuster RingAdjuster Ring
-
30706001098 CushionCushion
-
31706001099 Bushing HolderBushing Holder
-
32706001282 SpacerSpacer
-
35706001524 Rear ShockRear Shock
-
36706001646 Black LH Swing ArmBlack LH Swing Arm
-
37706001647 Black RH Swing ArmBlack RH Swing Arm
-
48706001664 Axial Pivot M16Axial Pivot M16
-
49706001678 Sway BarSway Bar
-
51706001679 SpacerSpacer
-
53706001736 LH ProtectorLH Protector
-
54706001737 RH ProtectorRH Protector
-
57706200181 CushionCushion
-
59706200881 Spring StopperSpring Stopper
-
60706201587 Inner BushingInner Bushing
-
61707001376 BushingBushing
