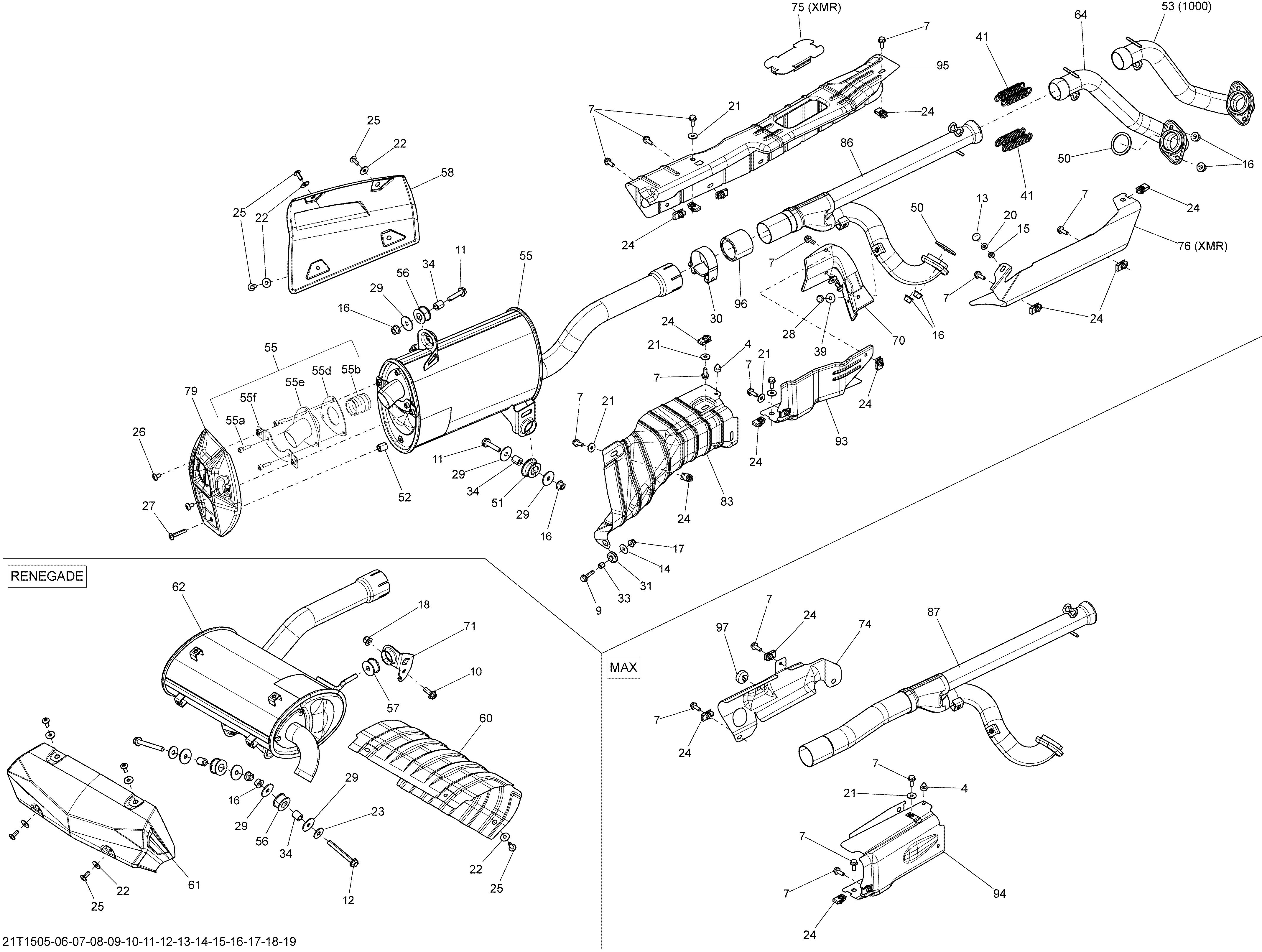

01- Exhaust System _21T1508 для BRP Outlander 800R EFI - 2015

  • №
    Артикул
    Название
  • 4
    293830005 Rubber Bumper
    Rubber Bumper
  • 7
    207661644 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 9
    207662534 Hex. Flanged Screw M6 X 25
    Hex. Flanged Screw M6 X 25
  • 11
    207683544 Hex. Flanged Screw M8 X 35
    Hex. Flanged Screw M8 X 35
  • 14
    224060201 Flat Washer
    Flat Washer
  • 16
    233081416 Hex. Flanged Nut M8
    Hex. Flanged Nut M8
  • 17
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 21
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 24
    250000048 Panel Nut M6 X 1.0
    Panel Nut M6 X 1.0
  • 28
    250000574 Hex. Flanged Screw M6 X 12
    Hex. Flanged Screw M6 X 12
  • 29
    250200158 Flat Washer M8
    Flat Washer M8
  • 30
    293650177 Norma Gear Clamp
    Norma Gear Clamp
  • 31
    293720053 Grommet
    Grommet
  • 33
    293900105 Bushing
    Bushing
  • 34
    293900116 Spacer Bushing
    Spacer Bushing
  • 39
    250200082 Flat Washer
    Flat Washer
  • 41
    415107100 Spring
    Spring
  • 50
    707600317 Gasket
    Gasket
  • 51
    707600448 Rubber
    Rubber
  • 55
    707600629 Muffler. Model-North America, International. Modele Amerique du Nord, International
    Muffler. Model-North America, International. Modele Amerique du Nord, International
  • 55
    707600799 Muffler. Model-Europe. Modele Europe
    Muffler. Model-Europe. Modele Europe
  • 55a
    205062060 Socket Head Screw M6 X 20. Model-Europe. Modele Europe
    Socket Head Screw M6 X 20. Model-Europe. Modele Europe
  • 55b
    715900089 Spark Arrestor. Modele Europe
    Spark Arrestor. Modele Europe
  • 55d
    715900149 Gasket. Model-Europe. Modele Europe
    Gasket. Model-Europe. Modele Europe
  • 55e
    715900143 Muffler End Piece. Model-Europe. Modele Europe
    Muffler End Piece. Model-Europe. Modele Europe
  • 55f
    715900147 Support. Model-Europe. Modele Europe
    Support. Model-Europe. Modele Europe
  • 56
    707600701 Anti-Vibration Rubber
    Anti-Vibration Rubber
  • 64
    707600764 Front Head Pipe
    Front Head Pipe
  • 70
    707600932 Pipe Protector
    Pipe Protector
  • 83
    707601425 Protector
    Protector
  • 86
    707601446 Rear Head Pipe
    Rear Head Pipe
  • 93
    707601484 Protector
    Protector
  • 95
    707601486 Protector
    Protector
  • 96
    707601544 Pipe Gasket
    Pipe Gasket
