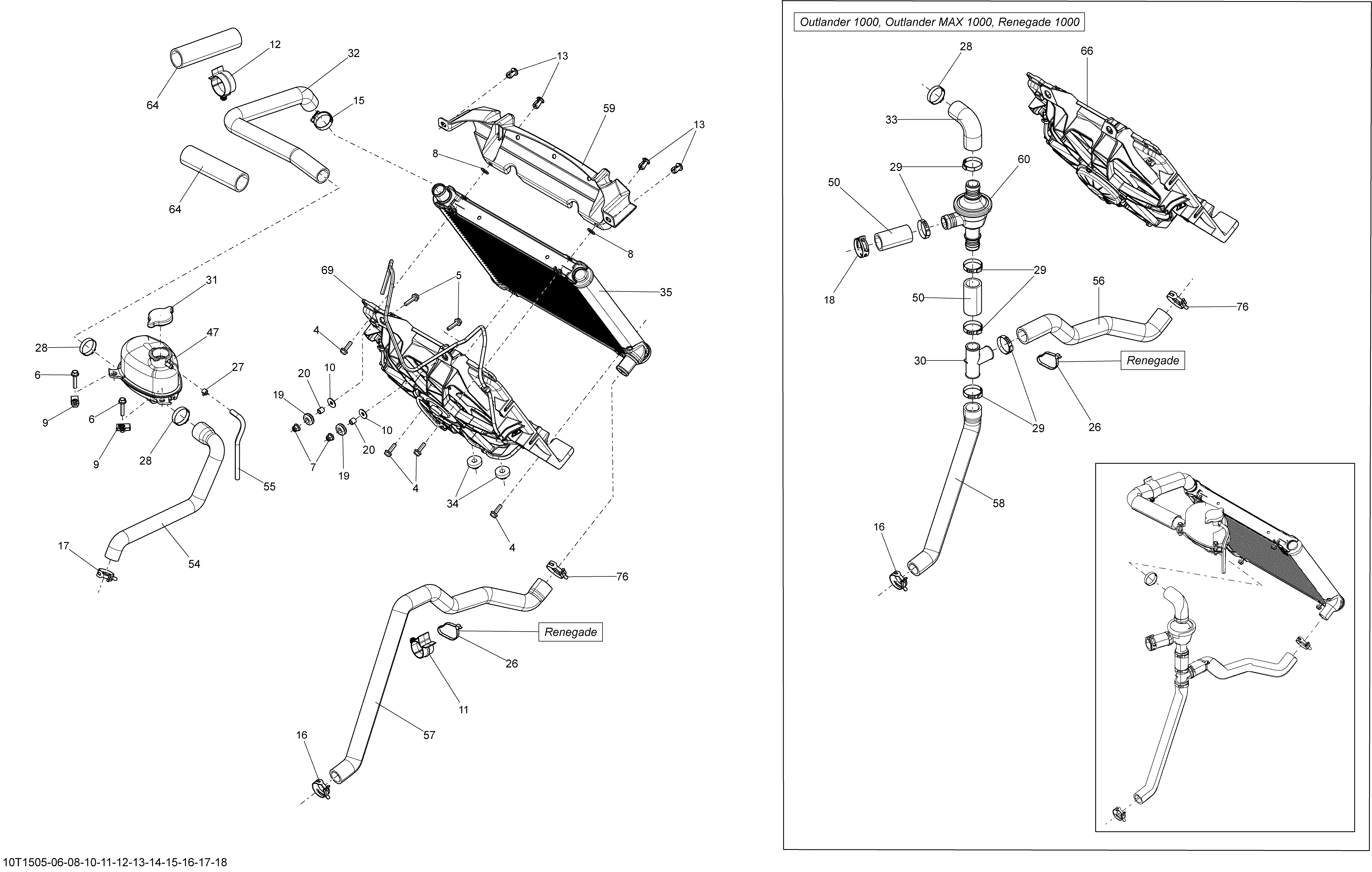

01- Cooling System _10T1508 для BRP Outlander 800R EFI - 2015
-
№АртикулНазвание
-
4207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
5207662534 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
6207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
7233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
8234081410 Flat Washer 8 mmFlat Washer 8 mm
-
9250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
10250200082 Flat WasherFlat Washer
-
11275500590 RetainerRetainer
-
12275500590 RetainerRetainer
-
13293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
15293650098 Norma Gear ClampNorma Gear Clamp
-
16293650108 Norma Spring ClampNorma Spring Clamp
-
17293650109 Norma Spring ClampNorma Spring Clamp
-
19293720053 GrommetGrommet
-
20293900105 BushingBushing
-
27414554800 Spring ClampSpring Clamp
-
28509000162 Gear ClampGear Clamp
-
31709200207 Pressure CapPressure Cap
-
32709200278 Radiator Inlet HoseRadiator Inlet Hose
-
34709200285 GrommetGrommet
-
35709200286 RadiatorRadiator
-
47709200297 Coolant TankCoolant Tank
-
54709200310 Engine Outlet HoseEngine Outlet Hose
-
55415080200 Hose, PolyurethaneHose, Polyurethane
-
57709200391 Radiator Outlet HoseRadiator Outlet Hose
-
59709200393 Air DeflectorAir Deflector
-
64515176260 Tubing 35mmTubing 35mm
-
69709200488 Fan Ass'yFan Ass'y
-
76293650166 Norma Spring ClampNorma Spring Clamp
