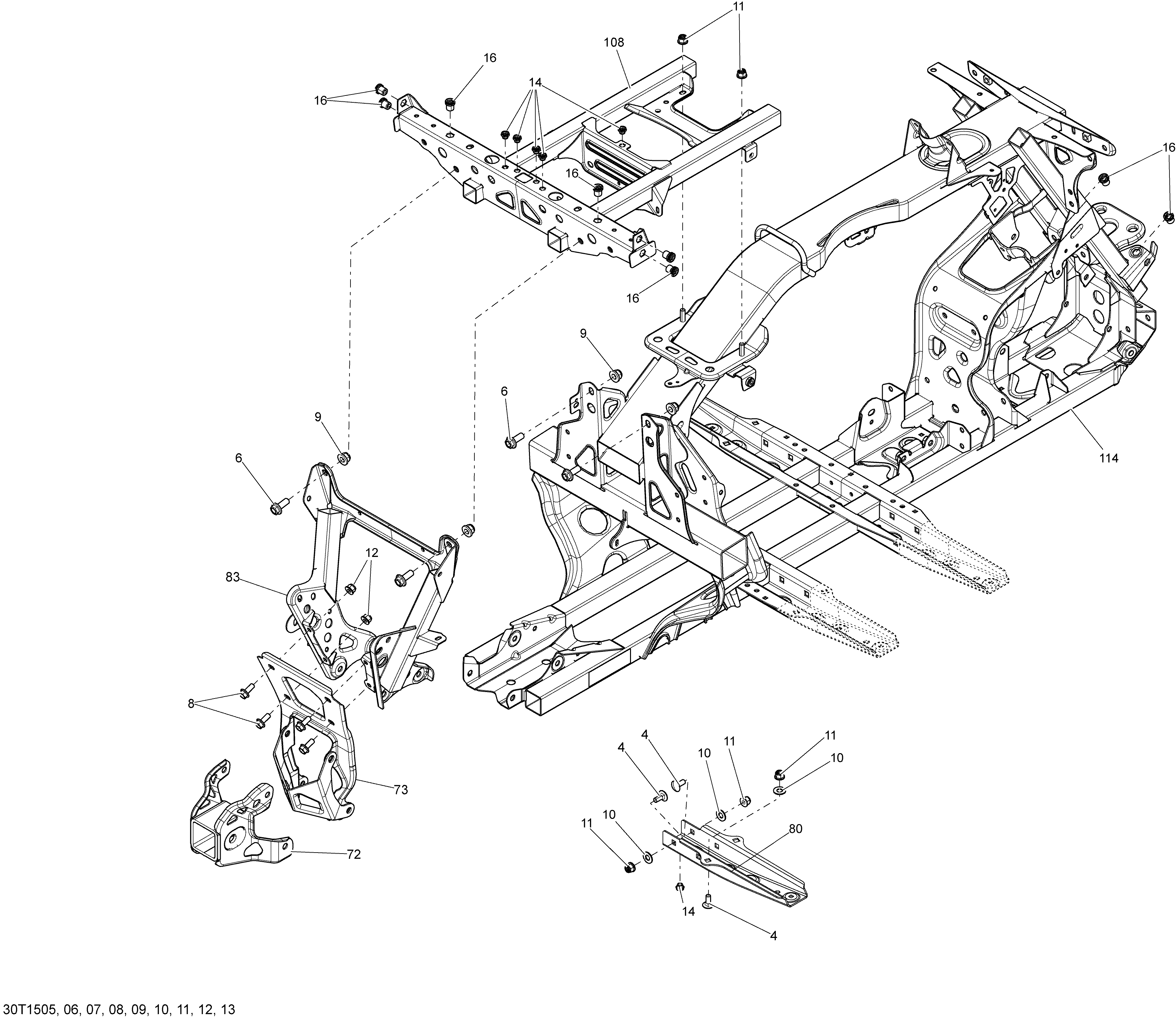

09- Frame _30T1509 для BRP Outlander 800R EFI Xmr - 2015
-
№АртикулНазвание
-
4207782044 Carriage Bolt, M8 X 20Carriage Bolt, M8 X 20
-
6207602546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
8207682046 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
9233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
10234001410 Flat Washer 10 mmFlat Washer 10 mm
-
11233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
12233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
14293450232 InsertInsert
-
16293450307 InsertInsert
-
72715002243 Black Trailer Hitch KitBlack Trailer Hitch Kit
-
73705203301 Rear SupportRear Support
-
80705203816 Foot Rest SupportFoot Rest Support
-
83705203387 Black Rear SupportBlack Rear Support
-
108705204075 Black Frame ExtensionBlack Frame Extension
-
114705204116 Black FrameBlack Frame
