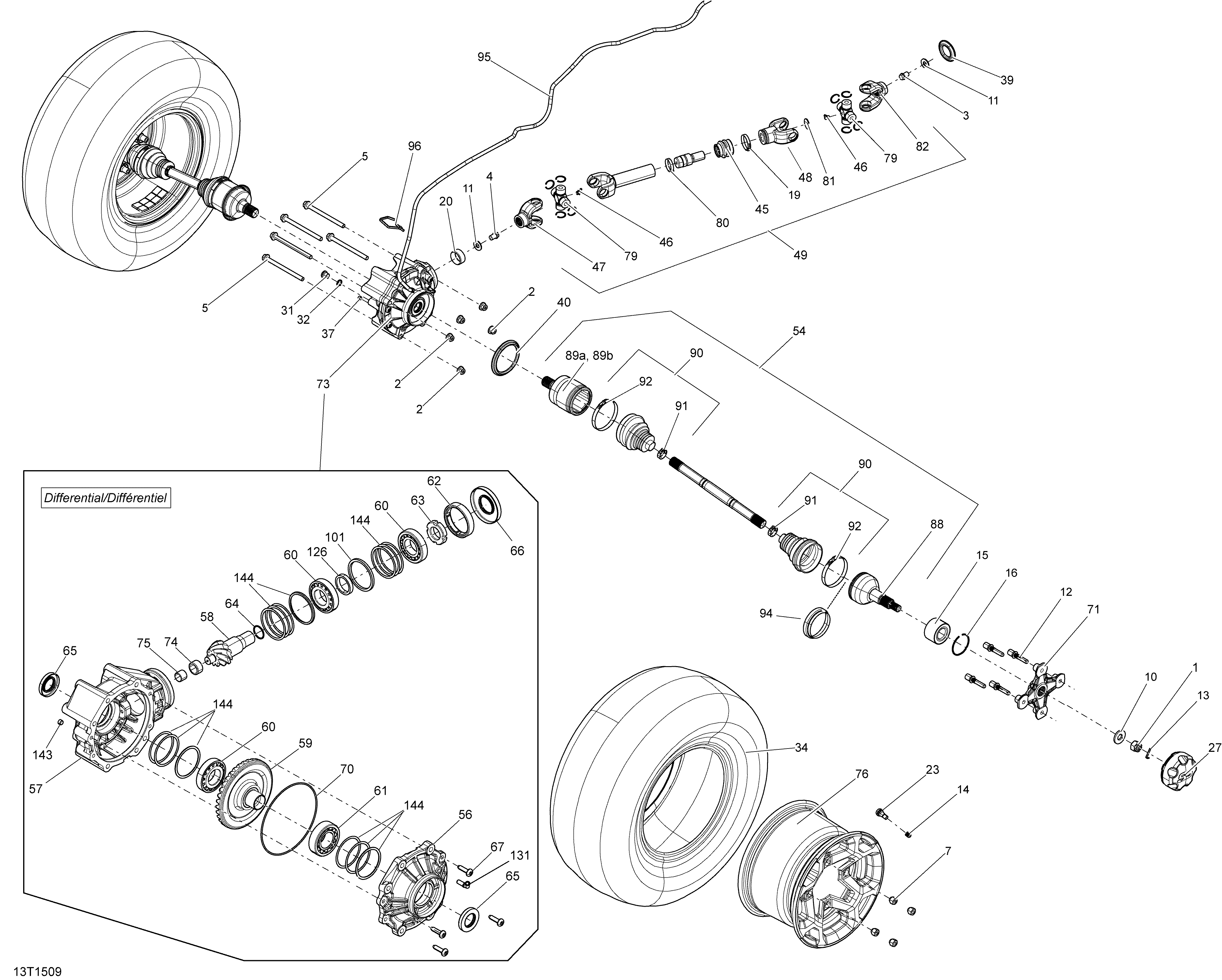

08- Drive System, Rear _13T1509 для BRP Outlander 800R EFI Xmr - 2015
-
№АртикулНазвание
-
1250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
2233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
3250000359 Hex Flanged Screw M12 x 16Hex Flanged Screw M12 x 16
-
4250000615 Hex Flanged Screwv M10 X 16Hex Flanged Screwv M10 X 16
-
5250000508 Hex. Flanged Screw M10 x 135Hex. Flanged Screw M10 x 135
-
7250100100 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
-
10250200049 Spring WasherSpring Washer
-
11250200014 Flat Washer M10Flat Washer M10
-
12250300048 Wheel StudWheel Stud
-
13250400036 Cotter PinCotter Pin
-
14293000110 Valve CapValve Cap
-
15293350040 Cone BearingCone Bearing
-
16293370019 CirclipCirclip
-
19293650138 Oetiker Gear ClampOetiker Gear Clamp
-
20705400036 Wear RingWear Ring
-
23705400193 Rim Valve With CapRim Valve With Cap
-
27705401318 Wheel CapWheel Cap
-
31705500504 Fill Level PlugFill Level Plug
-
32705500506 Copper WasherCopper Washer
-
34705400962 TireTire
-
37705500894 Drain PlugDrain Plug
-
39705501123 ProtectorProtector
-
40705501124 Wear RingWear Ring
-
45715900118 Rubber BootRubber Boot
-
46715900184 Grease FittingGrease Fitting
-
47715900271 JointJoint
-
48715900106 Spline YokeSpline Yoke
-
49703500858 Rear Propeller Shaft Ass'yRear Propeller Shaft Ass'y
-
54705501847 LH CV Joint Ass'yLH CV Joint Ass'y
-
54705501848 RH CV Joint Ass'yRH CV Joint Ass'y
-
56705502179 Rear CoverRear Cover
-
57705502180 Rear Pinion CoverRear Pinion Cover
-
58703500848 Kit Gear 10/36 TeethKit Gear 10/36 Teeth
-
59703500848 Kit Gear 10/36 TeethKit Gear 10/36 Teeth
-
62705501549 NutNut
-
63705501550 NutNut
-
64705501554 O-RingO-Ring
-
65705501556 Oil SealOil Seal
-
66705501557 Oil SealOil Seal
-
67705502063 ScrewScrew
-
70705501711 O-RingO-Ring
-
71705501716 Wheel Hub Ass'yWheel Hub Ass'y
-
73705502178 Rear Differential Ass'yRear Differential Ass'y
-
74705501761 Inner RingInner Ring
-
75703500836 Needle Bearing Ass'yNeedle Bearing Ass'y
-
76705401552 Matte Black RimMatte Black Rim
-
79715900270 Universal JointUniversal Joint
-
80509000045 Oetiker Gear ClampOetiker Gear Clamp
-
81715900187 CoverCover
-
82715900296 Fixe YokeFixe Yoke
-
88705501776 CV JointCV Joint
-
90705501864 Boot KitBoot Kit
-
91715900242 Oetiker Clamp, 27.3 mmOetiker Clamp, 27.3 mm
-
92715900241 Oetiker Clamp, 82.1 mmOetiker Clamp, 82.1 mm
-
94705501842 Joint ProtectorJoint Protector
-
95415080200 Hose, PolyurethaneHose, Polyurethane
-
96293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
131705501584 Breather TubeBreather Tube
-
143705501724 Plug DrainPlug Drain
-
144703500835 Differential Shim KitDifferential Shim Kit
-
89a705501780 Plunging JointPlunging Joint
-
89b705501781 CirclipCirclip
