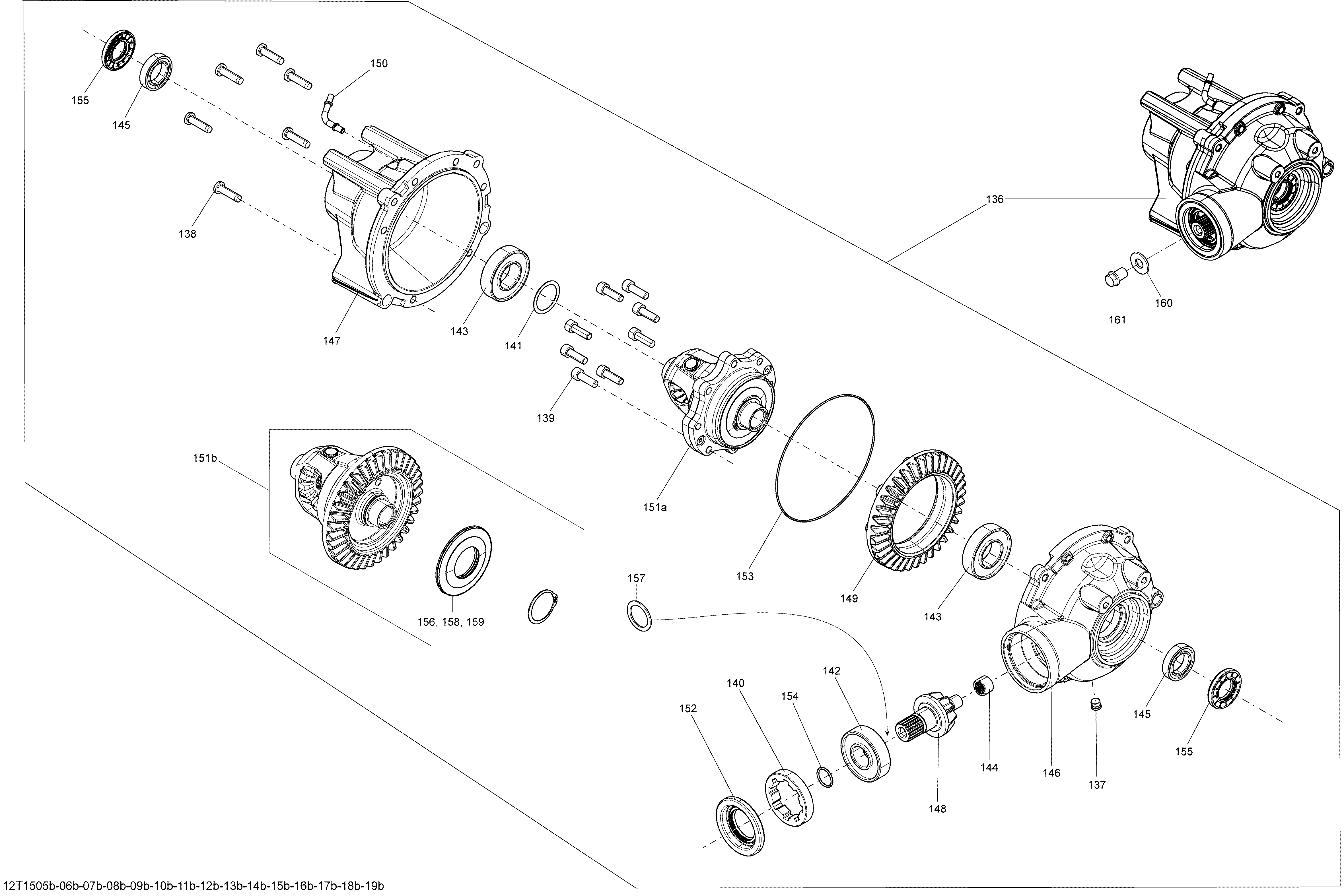

07- Drive System, Front _Differential_12T1506b для BRP Outlander 650 EFI - 2015
-
№АртикулНазвание
-
136705401510 Front Differential Ass'y. Package-STD. After May 30, 2014Front Differential Ass'y. Package-STD. After May 30, 2014
-
136705401511 Front Differential Ass'y. Package-DPS, XT, XTP. After May 30, 2014Front Differential Ass'y. Package-DPS, XT, XTP. After May 30, 2014
-
136705401484 Front Differential Ass'y. Package-STD. Before May 29, 2014Front Differential Ass'y. Package-STD. Before May 29, 2014
-
136705401485 Front Differential Ass'y. Package-DPS, XT, XTP. Before May 29, 2014Front Differential Ass'y. Package-DPS, XT, XTP. Before May 29, 2014
-
137705501885 Drain Plug. After May 30, 2014Drain Plug. After May 30, 2014
-
137705500894 Drain Plug. Before May 29, 2014Drain Plug. Before May 29, 2014
-
138705401601 Screw. After May 30, 2014Screw. After May 30, 2014
-
138705500892 Screw. Before May 29, 2014Screw. Before May 29, 2014
-
139705401602 Screw. After May 30, 2014Screw. After May 30, 2014
-
140705401603 Nut. After May 30, 2014Nut. After May 30, 2014
-
140705400661 Nut. Before May 29, 2014Nut. Before May 29, 2014
-
141705401604 Shim. After May 30, 2014Shim. After May 30, 2014
-
142705401605 Ball Bearing. After May 30, 2014Ball Bearing. After May 30, 2014
-
142705500260 Ball Bearing. Before May 29, 2014Ball Bearing. Before May 29, 2014
-
143705401606 Ball Bearing. After May 30, 2014Ball Bearing. After May 30, 2014
-
143705500259 Ball Bearing. Before May 29, 2014Ball Bearing. Before May 29, 2014
-
144705401607 Needle Bearing. After May 30, 2014Needle Bearing. After May 30, 2014
-
144705500261 Needle Bearing. Before May 29, 2014Needle Bearing. Before May 29, 2014
-
145705401608 Ball Bearing. After May 30, 2014Ball Bearing. After May 30, 2014
-
145293350044 Ball Bearing. Before May 29, 2014Ball Bearing. Before May 29, 2014
-
146705401609 Front Cover. After May 30, 2014Front Cover. After May 30, 2014
-
146705400761 Front Cover. Before May 29, 2014Front Cover. Before May 29, 2014
-
147705401610 Machined Front Cover. After May 30, 2014Machined Front Cover. After May 30, 2014
-
147705400762 Front Cover. Before May 29, 2014Front Cover. Before May 29, 2014
-
148705401611 Pinion 10 Teeth. After May 30, 2014Pinion 10 Teeth. After May 30, 2014
-
148705501588 10 Teeth Pinion. Before May 29, 201410 Teeth Pinion. Before May 29, 2014
-
149705401612 Gear 36 Teeth. After May 30, 2014Gear 36 Teeth. After May 30, 2014
-
150705401613 Vent Valve. After May 30, 2014Vent Valve. After May 30, 2014
-
150705500893 Vent Valve. Before May 29, 2014Vent Valve. Before May 29, 2014
-
151a705401614 Differential. Package-STD. After May 30, 2014Differential. Package-STD. After May 30, 2014
-
151a705401506 Differential. Package-DPS, XT, XTP. After May 30, 2014Differential. Package-DPS, XT, XTP. After May 30, 2014
-
151b705400645 Differential. Package-STD. Before May 29, 2014Differential. Package-STD. Before May 29, 2014
-
151b705400822 Differential. Package-DPS, XT, XTP. Before May 29, 2014Differential. Package-DPS, XT, XTP. Before May 29, 2014
-
152705401615 Oil Seal. After May 30, 2014Oil Seal. After May 30, 2014
-
152705401481 Oil Seal. Before May 29, 2014Oil Seal. Before May 29, 2014
-
153705401616 Seal. After May 30, 2014Seal. After May 30, 2014
-
153705500265 Seal. Before May 29, 2014Seal. Before May 29, 2014
-
154705401617 O'Ring. After May 30, 2014O'Ring. After May 30, 2014
-
154705500267 O-Ring. Before May 29, 2014O-Ring. Before May 29, 2014
-
155705401618 Gasket. After May 30, 2014Gasket. After May 30, 2014
-
155705401486 Oil Seal. Before May 29, 2014Oil Seal. Before May 29, 2014
-
156703500049 Pinion Shim Kit. Before May 29, 2014Pinion Shim Kit. Before May 29, 2014
-
157705501162 Pinion Gear Shim. Before May 29, 2014Pinion Gear Shim. Before May 29, 2014
-
158703500288 Differential Shim Spool Kit. Before May 29, 2014Differential Shim Spool Kit. Before May 29, 2014
-
159703500050 Differential Shim Spool Kit. Before May 29, 2014Differential Shim Spool Kit. Before May 29, 2014
-
160250200014 Flat Washer M10. After May 30, 2014Flat Washer M10. After May 30, 2014
-
160250200102 Flat Washer M12. Before May 29, 2014Flat Washer M12. Before May 29, 2014
-
161250000615 Hex Flanged Screwv M10 X 16. After May 30, 2014Hex Flanged Screwv M10 X 16. After May 30, 2014
-
161250000378 Hex Flanged Screw M12 X 16, Scotch Grip. Before May 29, 2014Hex Flanged Screw M12 X 16, Scotch Grip. Before May 29, 2014
