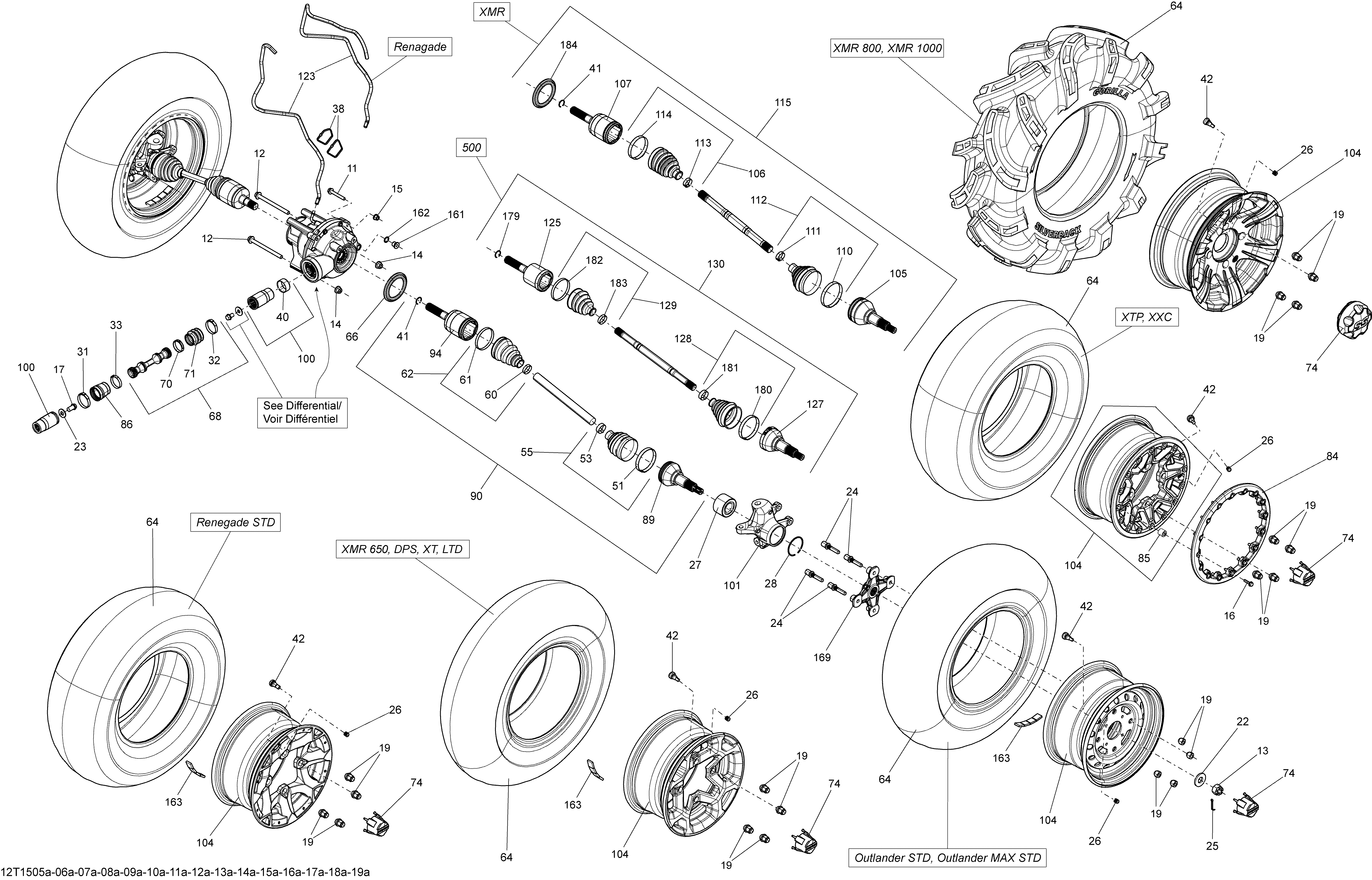

07- Drive System, Front _12T1506a для BRP Outlander 650 EFI - 2015
-
№АртикулНазвание
-
11207685544 Hex. Flanged Screw M8 X 55Hex. Flanged Screw M8 X 55
-
12230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
13250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
14233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
15233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
16250000435 Hex. Flanged Screw M6 X 25. Package-XTP EuropeHex. Flanged Screw M6 X 25. Package-XTP Europe
-
17250000540 Hex Flanged Screw M12 X 20Hex Flanged Screw M12 X 20
-
19250100042 Steel Wheel Nut. Package-STDSteel Wheel Nut. Package-STD
-
19250100082 Chrome Wheel Nut M10 X 1.25. Package-DPSChrome Wheel Nut M10 X 1.25. Package-DPS
-
19250100100 Black Wheel Nut M10 X 1.25. Package-XTBlack Wheel Nut M10 X 1.25. Package-XT
-
19250100100 Black Wheel Nut M10 X 1.25. Package-XTPBlack Wheel Nut M10 X 1.25. Package-XTP
-
22250200049 Spring WasherSpring Washer
-
23250200102 Flat Washer M12Flat Washer M12
-
24250300048 Wheel StudWheel Stud
-
25250400036 Cotter PinCotter Pin
-
26293000110 Valve CapValve Cap
-
27293350040 Cone BearingCone Bearing
-
28293370019 CirclipCirclip
-
31293650138 Oetiker Gear ClampOetiker Gear Clamp
-
32293650138 Oetiker Gear ClampOetiker Gear Clamp
-
33293650199 Oetiker ClampOetiker Clamp
-
38414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
40705400036 Wear RingWear Ring
-
41705401349 Circlip JointCirclip Joint
-
42705400193 Rim Valve With CapRim Valve With Cap
-
51715900282 Oetiker Clamp, LargeOetiker Clamp, Large
-
53715900283 Oetiker Clamp, SmallOetiker Clamp, Small
-
55705401345 Boot Kit, Wheel SideBoot Kit, Wheel Side
-
60715900261 Oetiker Clamp, SmallOetiker Clamp, Small
-
61715900284 Oetiker Clamp, LargeOetiker Clamp, Large
-
62705401346 Boot Kit, Differential SideBoot Kit, Differential Side
-
64705401331 Front Tire. Package-STDFront Tire. Package-STD
-
64705401331 Front Tire. Package-DPS North AmericaFront Tire. Package-DPS North America
-
64705401331 Front Tire. Package-DPS InternationalFront Tire. Package-DPS International
-
64705401332 Front Tire. Package-DPS EuropeFront Tire. Package-DPS Europe
-
64705401333 Front Tire. Package-XT CamoFront Tire. Package-XT Camo
-
64705401333 Front Tire. Package-XT Yellow North AmericaFront Tire. Package-XT Yellow North America
-
64705401333 Front Tire. Package-XT White North AmericaFront Tire. Package-XT White North America
-
64705401333 Front Tire. Package-XT Yellow InternationalFront Tire. Package-XT Yellow International
-
64705401334 Front Tire. Package-XTP EuropeFront Tire. Package-XTP Europe
-
66705400780 Wear SleeveWear Sleeve
-
68705400913 Front Drive Axle Ass'yFront Drive Axle Ass'y
-
70509000045 Oetiker Gear ClampOetiker Gear Clamp
-
71715900118 Rubber BootRubber Boot
-
74705400928 Wheel CapWheel Cap
-
84705401533 Plate Reinforcement Disc. Package-XTP EuropePlate Reinforcement Disc. Package-XTP Europe
-
85293450317 Insert. Package-XTP EuropeInsert. Package-XTP Europe
-
86705401093 Rubber BootRubber Boot
-
89705401344 CV JointCV Joint
-
90705401116 RH Homocinetic JointRH Homocinetic Joint
-
90705401115 LH Homocinetic JointLH Homocinetic Joint
-
94705401348 RH Plunging JointRH Plunging Joint
-
100703500678 Front Bushing Shaft KitFront Bushing Shaft Kit
-
101705401290 LH KnuckleLH Knuckle
-
101705401291 RH KnuckleRH Knuckle
-
104705401371 Black Front Rim. Package-STDBlack Front Rim. Package-STD
-
104705401268 Silver Front Rim. Package-DPS North AmericaSilver Front Rim. Package-DPS North America
-
104705401268 Silver Front Rim. Package-DPS InternationalSilver Front Rim. Package-DPS International
-
104705401268 Silver Front Rim. Package-DPS EuropeSilver Front Rim. Package-DPS Europe
-
104705401275 Black Front Rim. Package-XT CamoBlack Front Rim. Package-XT Camo
-
104705401420 Black Front Rim. Package-XT Yellow North AmericaBlack Front Rim. Package-XT Yellow North America
-
104705401420 Black Front Rim. Package-XT White North AmericaBlack Front Rim. Package-XT White North America
-
104705401420 Black Front Rim. Package-XT Yellow InternationalBlack Front Rim. Package-XT Yellow International
-
104705401640 Front Rim. Package-XTP EuropeFront Rim. Package-XTP Europe
-
123415080200 Hose, PolyurethaneHose, Polyurethane
-
161705500504 Fill Level PlugFill Level Plug
-
162705500506 Copper WasherCopper Washer
-
163705501385 1/2 OZ Weight. Package-STD1/2 OZ Weight. Package-STD
-
163705501385 1/2 OZ Weight. Package-DPS North America1/2 OZ Weight. Package-DPS North America
-
163705501385 1/2 OZ Weight. Package-DPS International1/2 OZ Weight. Package-DPS International
-
163705501385 1/2 OZ Weight. Package-DPS Europe1/2 OZ Weight. Package-DPS Europe
-
163705501385 1/2 OZ Weight. Package-XT Camo1/2 OZ Weight. Package-XT Camo
-
163705501385 1/2 OZ Weight. Package-XT Yellow North America1/2 OZ Weight. Package-XT Yellow North America
-
163705501385 1/2 OZ Weight. Package-XT White North America1/2 OZ Weight. Package-XT White North America
-
163705501385 1/2 OZ Weight. Package-XT Yellow International1/2 OZ Weight. Package-XT Yellow International
-
169705501716 Wheel Hub Ass'yWheel Hub Ass'y
