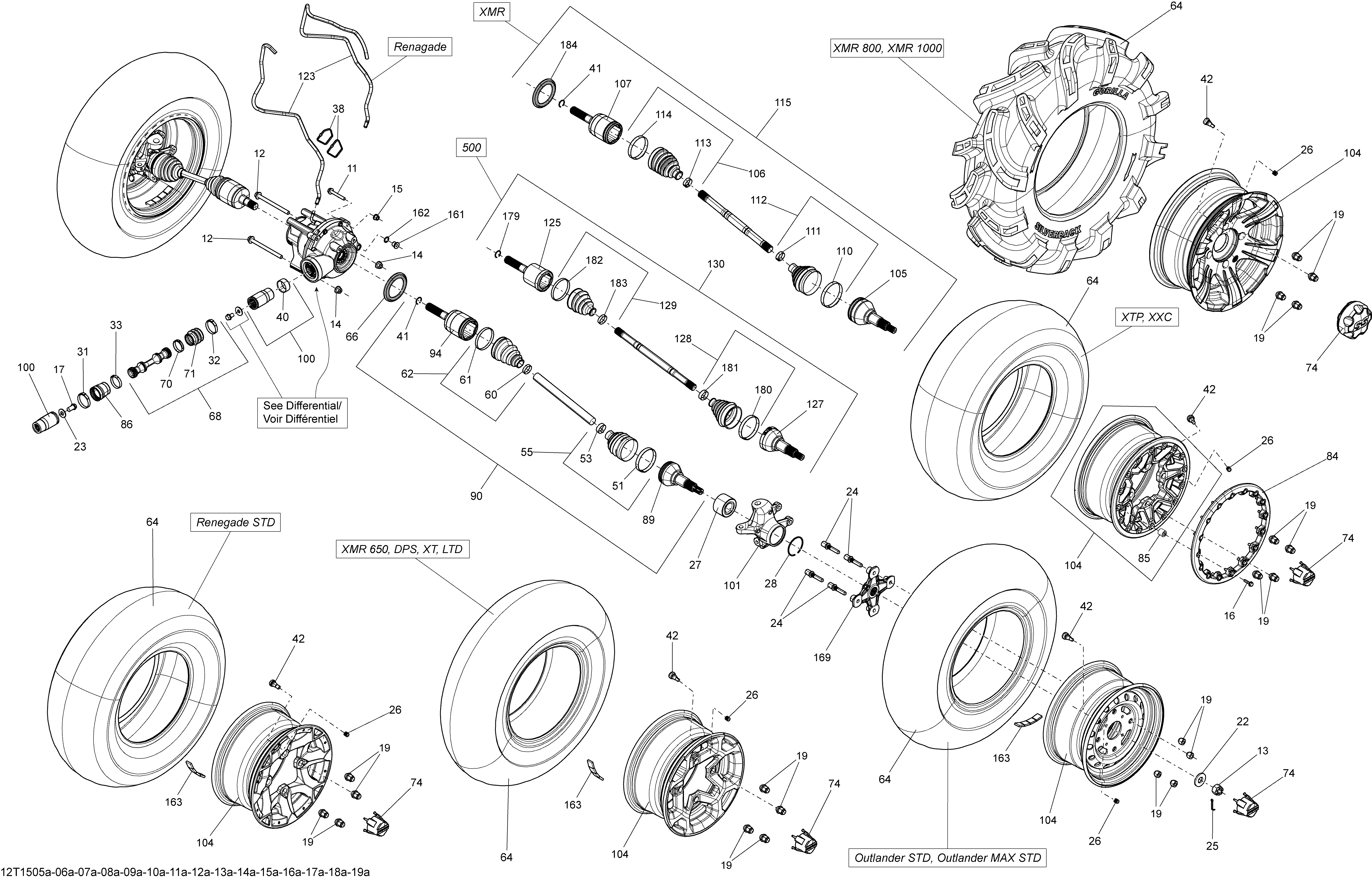

07- Drive System, Front _12T1519a для BRP Outlander 1000 EFI Xmr - 2015
-
№АртикулНазвание
-
11207685544 Hex. Flanged Screw M8 X 55Hex. Flanged Screw M8 X 55
-
12230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
13250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
14233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
15233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
17250000540 Hex Flanged Screw M12 X 20Hex Flanged Screw M12 X 20
-
19250100100 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
-
22250200049 Spring WasherSpring Washer
-
23250200102 Flat Washer M12Flat Washer M12
-
24250300048 Wheel StudWheel Stud
-
25250400036 Cotter PinCotter Pin
-
26293000110 Valve CapValve Cap
-
27293350040 Cone BearingCone Bearing
-
28293370019 CirclipCirclip
-
31293650138 Oetiker Gear ClampOetiker Gear Clamp
-
32293650138 Oetiker Gear ClampOetiker Gear Clamp
-
33293650199 Oetiker ClampOetiker Clamp
-
38414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
40705400036 Wear RingWear Ring
-
41705401349 Circlip JointCirclip Joint
-
42705400193 Rim Valve With CapRim Valve With Cap
-
64705400962 TireTire
-
68705400913 Front Drive Axle Ass'yFront Drive Axle Ass'y
-
70509000045 Oetiker Gear ClampOetiker Gear Clamp
-
71715900118 Rubber BootRubber Boot
-
74705401318 Wheel CapWheel Cap
-
86705401093 Rubber BootRubber Boot
-
100703500678 Front Bushing Shaft KitFront Bushing Shaft Kit
-
101705401290 LH KnuckleLH Knuckle
-
101705401291 RH KnuckleRH Knuckle
-
104705401552 Matte Black RimMatte Black Rim
-
105705401407 CV JointCV Joint
-
106705401355 Boot Kit, Differential SideBoot Kit, Differential Side
-
107705401357 RH Plunging JointRH Plunging Joint
-
110715900260 Oetiker Clamp, LargeOetiker Clamp, Large
-
111715900261 Oetiker Clamp, SmallOetiker Clamp, Small
-
112705401354 Boot Kit, Wheel SideBoot Kit, Wheel Side
-
113715900261 Oetiker Clamp, SmallOetiker Clamp, Small
-
114715900262 Oetiker Clamp, LargeOetiker Clamp, Large
-
115705401383 RH Homocinetic JointRH Homocinetic Joint
-
115705401384 LH Homocinetic JointLH Homocinetic Joint
-
123415080200 Hose, PolyurethaneHose, Polyurethane
-
161705500504 Fill Level PlugFill Level Plug
-
162705500506 Copper WasherCopper Washer
-
169705501716 Wheel Hub Ass'yWheel Hub Ass'y
