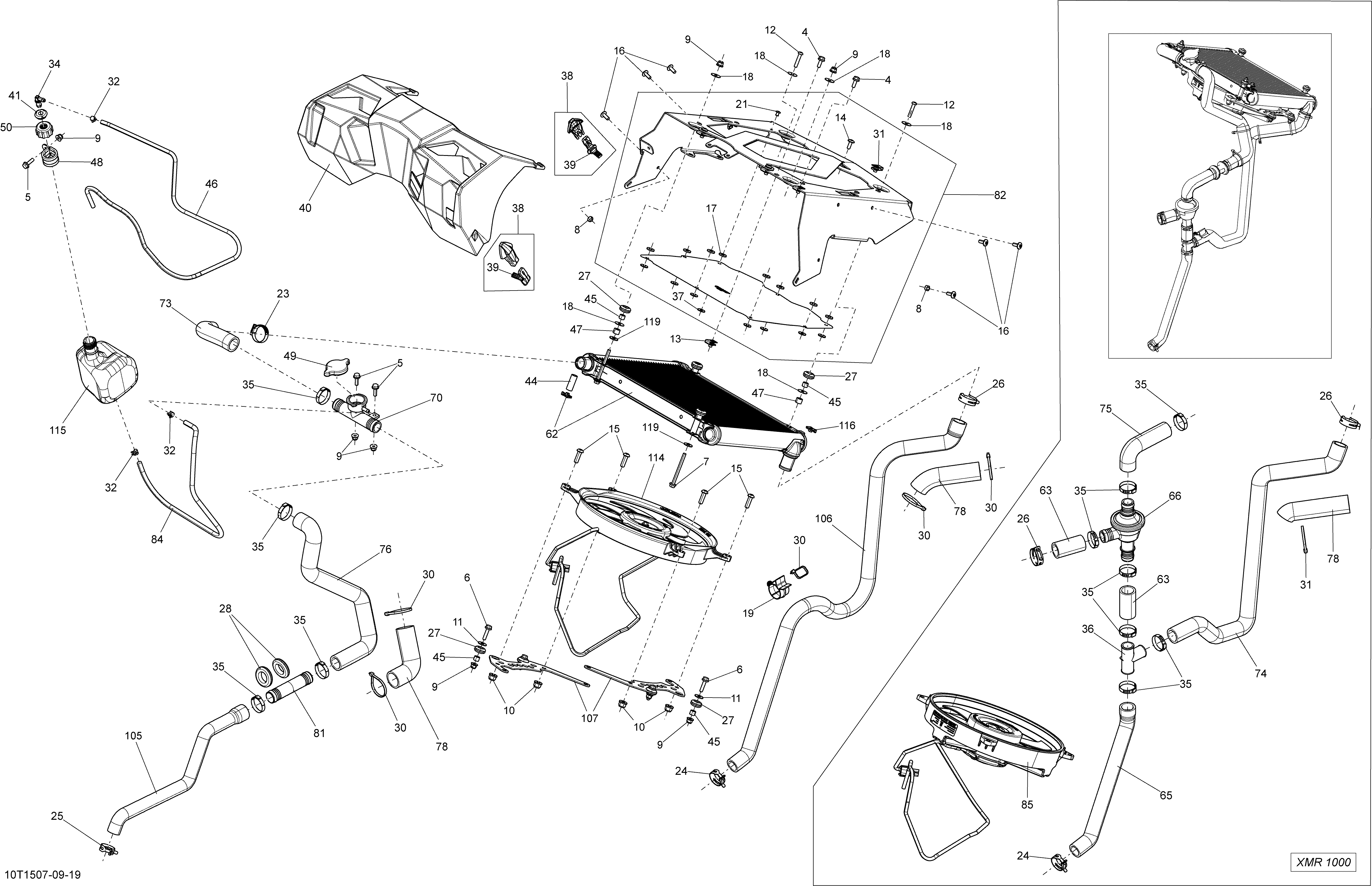

01- Cooling System _10T1519 для BRP Outlander 1000 EFI Xmr - 2015
-
№АртикулНазвание
-
4207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
5207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
6207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
7207667044 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
8232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
9233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
10233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
11234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
12235563054 Torx Screw M6 X 30Torx Screw M6 X 30
-
13250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
14250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
15250000283 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
16250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
17250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
18250200040 Flat WasherFlat Washer
-
19275500590 RetainerRetainer
-
21293150102 Rivet 3/16''Rivet 3/16''
-
23293650098 Norma Gear ClampNorma Gear Clamp
-
24293650108 Norma Spring ClampNorma Spring Clamp
-
26293650166 Norma Spring ClampNorma Spring Clamp
-
27293720062 GrommetGrommet
-
28293720096 GrommetGrommet
-
30414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
31250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
32414554800 Spring ClampSpring Clamp
-
34414580700 Male ConnectorMale Connector
-
35509000162 Gear ClampGear Clamp
-
36509000219 T-FittingT-Fitting
-
37517124300 WasherWasher
-
38860200239 Black Latch KitBlack Latch Kit
-
39517303981 Panel LatchPanel Latch
-
40703100399 Protection Cover KitProtection Cover Kit
-
41705003264 GrommetGrommet
-
44705202499 BushingBushing
-
45707000058 SpacerSpacer
-
46415080200 Hose, PolyurethaneHose, Polyurethane
-
47708001129 BushingBushing
-
48709200036 Hose AnchorHose Anchor
-
49709200207 Pressure CapPressure Cap
-
50548872589 Coolant Reserve Tank CapCoolant Reserve Tank Cap
-
62709200286 RadiatorRadiator
-
63709200299 HoseHose
-
65709200392 HoseHose
-
66709200406 ThermostatThermostat
-
70709200422 Filler NeckFiller Neck
-
73709200426 HoseHose
-
74709200427 Outlet HoseOutlet Hose
-
75709200428 Outlet HoseOutlet Hose
-
76709200429 Outlet HoseOutlet Hose
-
78515176260 Tubing 35 mmTubing 35 mm
-
81709200448 Nipple Tube 1''Nipple Tube 1''
-
82709200451 Radiator Support Ass'yRadiator Support Ass'y
-
84415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
85709200458 Fan Ass'yFan Ass'y
-
107709200495 SupportSupport
-
115709200504 Coolant TankCoolant Tank
-
116715900148 Clip Nut M6 X 1Clip Nut M6 X 1
-
119234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
