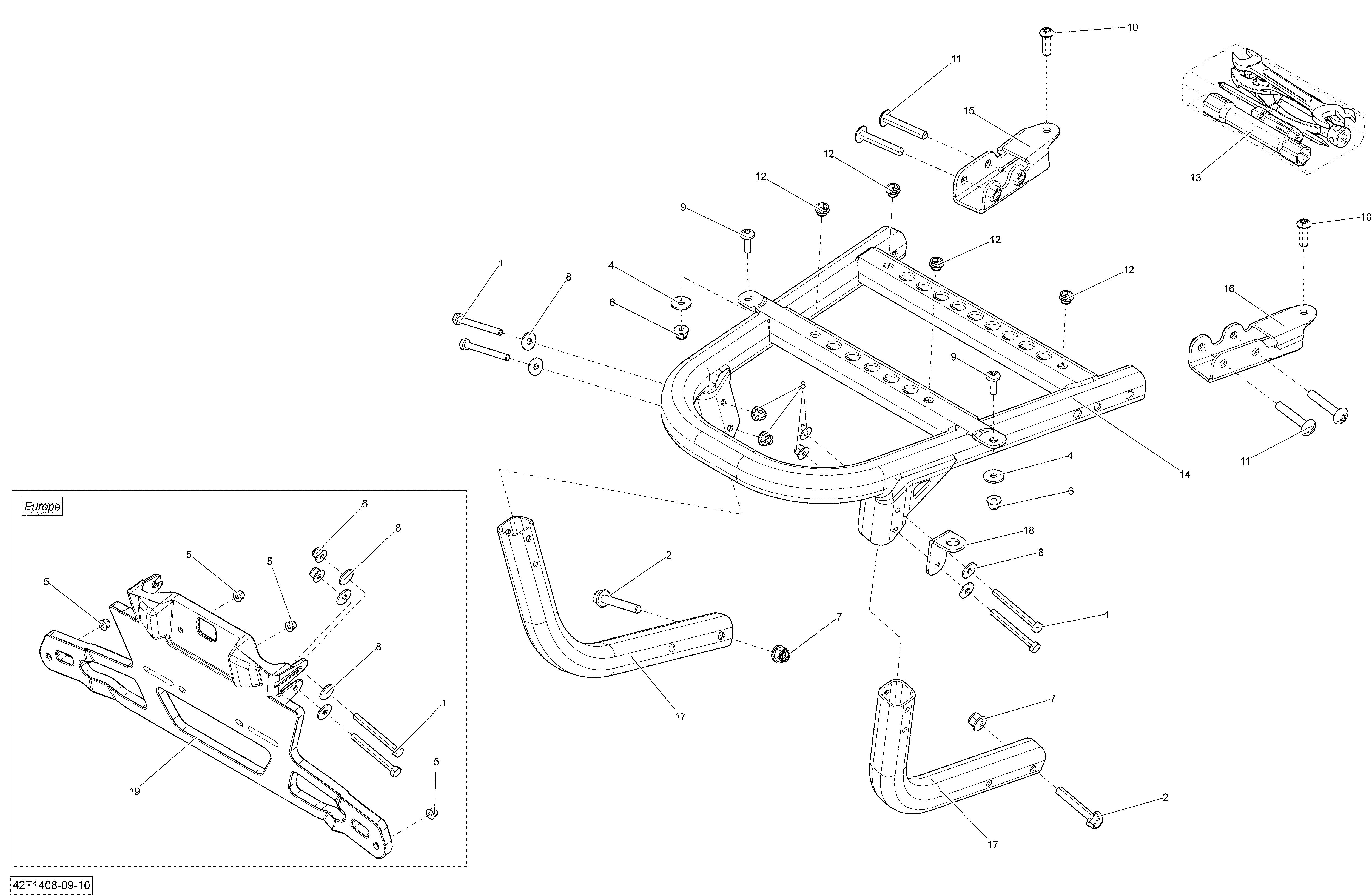

09- Rear Cargo Box для BRP Renegade 800R EFI STD & XXC - 2014

  • №
    Артикул
    Название
  • 1
    207066044 Hex. Screw M6 X 60
    Hex. Screw M6 X 60
  • 2
    207685044 Hex. Flanged Screw M8 X 50
    Hex. Flanged Screw M8 X 50
  • 4
    224061201 Flat Washer
    Flat Washer
  • 5
    233251414 Hex. Flanged Elastic Nut M5. Europe
    Hex. Flanged Elastic Nut M5. Europe
  • 6
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 7
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 8
    234062410 Flat Washer 6 mm. Except Europe
    Flat Washer 6 mm. Except Europe
  • 8
    234062410 Flat Washer 6 mm. Europe
    Flat Washer 6 mm. Europe
  • 9
    250000075 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 10
    250000283 Torx Screw M8 X 25, Scotch Grip
    Torx Screw M8 X 25, Scotch Grip
  • 11
    250000298 Torx Truss Screw M8 X 50
    Torx Truss Screw M8 X 50
  • 12
    293450274 Insert
    Insert
  • 13
    704700148 Tool Kit
    Tool Kit
  • 14
    705004318 Rear Support
    Rear Support
  • 15
    705004977 LH Front Bracket
    LH Front Bracket
  • 16
    705004978 RH Front Bracket
    RH Front Bracket
  • 17
    705004981 Rear Tube
    Rear Tube
  • 18
    705005837 Flag Support. Except Europe
    Flag Support. Except Europe
  • 19
    708300553 Plate Support. Europe
    Plate Support. Europe
