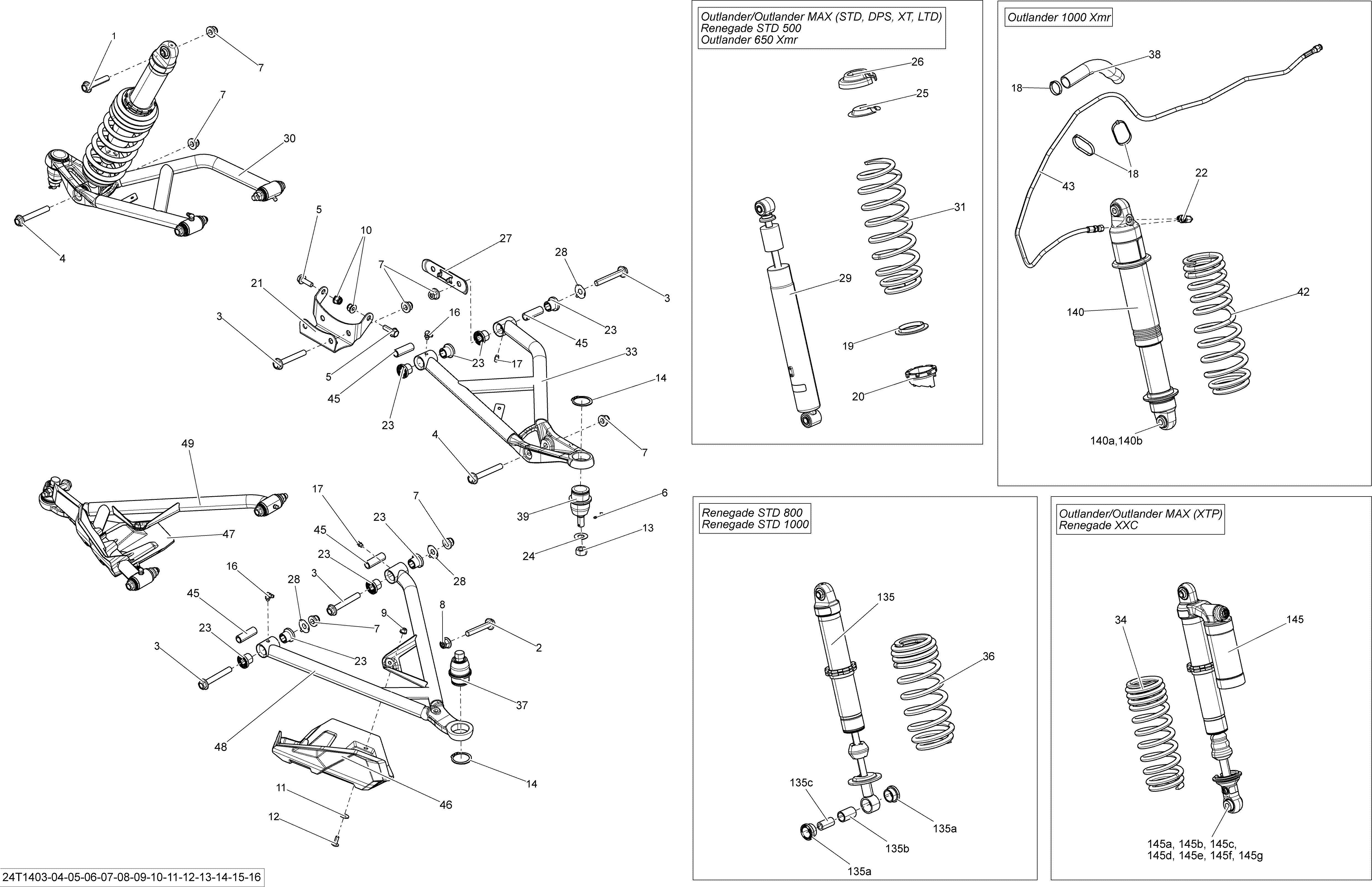

07- Front Suspension для BRP Renegade 800R EFI STD & XXC - 2014

  • №
    Артикул
    Название
  • 1
    207605546 Flanged Hex. Screw M10 X 55
    Flanged Hex. Screw M10 X 55
  • 2
    207606044 Hex. Flange Screw M10 X 60
    Hex. Flange Screw M10 X 60
  • 3
    207607046 Hex. Flanged Screw M10 X 70
    Hex. Flanged Screw M10 X 70
  • 4
    207607587 Flanged Hex. Screw M10 X 75
    Flanged Hex. Screw M10 X 75
  • 5
    207682544 Hex. Flanged Screw M8 X 25
    Hex. Flanged Screw M8 X 25
  • 6
    211400017 Cotter Pin
    Cotter Pin
  • 7
    233201436 Flanged Elastic Nut M10
    Flanged Elastic Nut M10
  • 8
    233201434 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 9
    233261494 Hex. Elastic Flanged Nut M6
    Hex. Elastic Flanged Nut M6
  • 10
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 11
    234062670 Flat Washer
    Flat Washer
  • 12
    250000129 Torx Screw M6 X 16
    Torx Screw M6 X 16
  • 13
    250100099 Nut M12
    Nut M12
  • 14
    293370035 Circlip
    Circlip
  • 16
    293550056 Grease Fitting 90°
    Grease Fitting 90°
  • 17
    408200700 Grease Fitting
    Grease Fitting
  • 21
    705203247 Upper Front Holder
    Upper Front Holder
  • 23
    703500875 Bushing Kit. Includes 45
    Bushing Kit. Includes 45
  • 24
    250200086 Flat Washer
    Flat Washer
  • 27
    706200998 Front Suspension Cross Plate
    Front Suspension Cross Plate
  • 30
    706201797 Black RH Upper Arm
    Black RH Upper Arm
  • 33
    706201796 Black LH Upper Arm
    Black LH Upper Arm
  • 34
    706201258 Yellow Spring. Model-XXC
    Yellow Spring. Model-XXC
  • 36
    706201268 Yellow Spring. Model-STD
    Yellow Spring. Model-STD
  • 37
    706201393 Ball Joint
    Ball Joint
  • 39
    706201394 Ball Joint
    Ball Joint
  • 45
    703500875 Bushing Kit. Includes 23
    Bushing Kit. Includes 23
  • 46
    706201829 LH Joint Protector
    LH Joint Protector
  • 47
    706201830 RH Joint Protector
    RH Joint Protector
  • 48
    706201874 Black LH Lower Arm
    Black LH Lower Arm
  • 49
    706201875 Black RH Lower Arm
    Black RH Lower Arm
  • 135
    706201267 Shock Absorber. Model-STD, Includes 135a to 135c
    Shock Absorber. Model-STD, Includes 135a to 135c
  • 135a
    706201584 Bushing. Model-STD
    Bushing. Model-STD
  • 135b
    706201585 Bushing Sleeve. Model-STD
    Bushing Sleeve. Model-STD
  • 135c
    706201586 Bushing Sleeve. Model-STD
    Bushing Sleeve. Model-STD
  • 145
    706201812 Shock Absorber. Model-XXC, Includes 145a to 145g
    Shock Absorber. Model-XXC, Includes 145a to 145g
  • 145a
    706201648 Bushing. Model-XXC
    Bushing. Model-XXC
  • 145b
    706201585 Bushing Sleeve. Model-XXC
    Bushing Sleeve. Model-XXC
  • 145c
    706201586 Bushing Sleeve. Model-XXC
    Bushing Sleeve. Model-XXC
  • 145d
    715900209 O-Ring Bushing. Model-XXC
    O-Ring Bushing. Model-XXC
  • 145e
    715900210 Interior Bushing. Model-XXC
    Interior Bushing. Model-XXC
  • 145f
    715900251 Spherical Bearing. Model-XXC
    Spherical Bearing. Model-XXC
  • 145g
    715900252 Retaining Ring. Model-XXC
    Retaining Ring. Model-XXC
