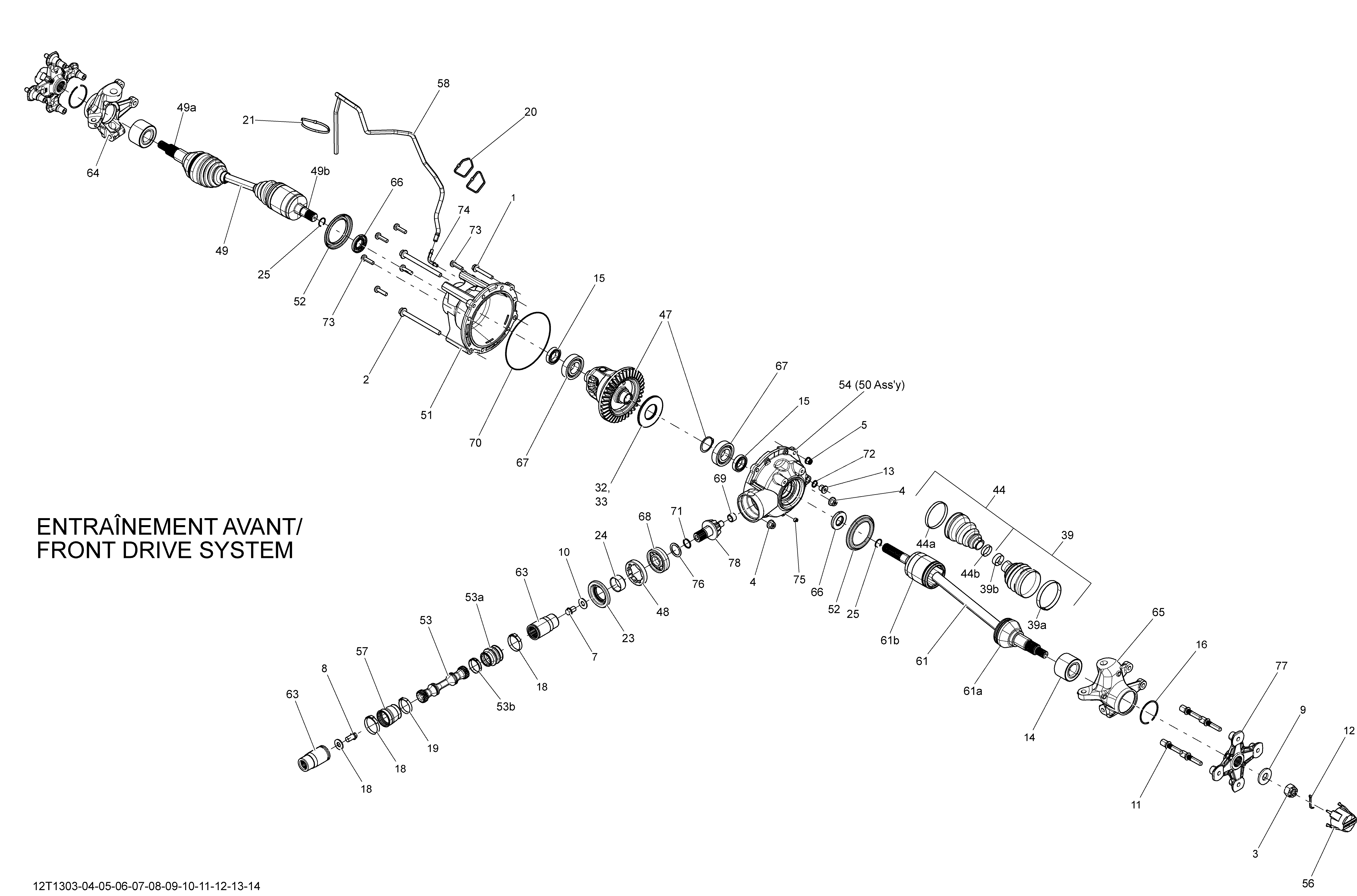

07- Drive System, Front для BRP Outlander MAX 650EFI STD, DPS & XT - 2013
-
№АртикулНазвание
-
1207685544 Hex. Flanged Screw M8 X 55Hex. Flanged Screw M8 X 55
-
2230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
3250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
4233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
5233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
7250000378 Hex Flanged Screw M12 X 16, Scotch GripHex Flanged Screw M12 X 16, Scotch Grip
-
8250000540 Hex Flanged Screw M12 X 20Hex Flanged Screw M12 X 20
-
9250200049 Spring WasherSpring Washer
-
10250200102 Flat Washer M12Flat Washer M12
-
10250200102 Flat Washer M12Flat Washer M12
-
11250300048 Wheel StudWheel Stud
-
12250400036 Cotter PinCotter Pin
-
13705500504 Fill Level PlugFill Level Plug
-
14293350040 Cone BearingCone Bearing
-
15293350044 Ball BearingBall Bearing
-
16293370019 CirclipCirclip
-
18293650138 Oetiker Gear ClampOetiker Gear Clamp
-
19293650199 Oetiker ClampOetiker Clamp
-
20414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
21293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
23705401481 Oil SealOil Seal
-
24705400036 Wear RingWear Ring
-
32703500050 Differential Shim Spool KitDifferential Shim Spool Kit
-
33703500288 Differential Shim Spool KitDifferential Shim Spool Kit
-
39705401345 Boot Kit, Wheel SideBoot Kit, Wheel Side
-
39a715900282 Oetiker Clamp, LargeOetiker Clamp, Large
-
39b715900283 Oetiker Clamp, SmallOetiker Clamp, Small
-
44705401346 Boot Kit, Differential SideBoot Kit, Differential Side
-
44a715900284 Oetiker Clamp, LargeOetiker Clamp, Large
-
44b715900261 Oetiker Clamp, SmallOetiker Clamp, Small
-
47705400645 Differential. STDDifferential. STD
-
47705400822 Differential. Except STDDifferential. Except STD
-
48705400661 NutNut
-
49705401115 LH Homocinetic JointLH Homocinetic Joint
-
49a705401344 CV JointCV Joint
-
49b705401350 LH Plunging JointLH Plunging Joint
-
50705401479 Front Differential Ass'y. STDFront Differential Ass'y. STD
-
50705401480 Front Differential Ass'y. Except STDFront Differential Ass'y. Except STD
-
51705400762 Front CoverFront Cover
-
52705400780 Wear SleeveWear Sleeve
-
53705401032 Front Drive Axle Ass'yFront Drive Axle Ass'y
-
53a703500255 Rubber Boot KitRubber Boot Kit
-
53b509000529 Oetiker Gear ClampOetiker Gear Clamp
-
54705400761 Front CoverFront Cover
-
56705400928 Wheel CapWheel Cap
-
57705401093 Rubber BootRubber Boot
-
58415080200 Hose, PolyurethaneHose, Polyurethane
-
61705401116 RH Homocinetic JointRH Homocinetic Joint
-
61a705401344 CV JointCV Joint
-
61b705401348 RH Plunging JointRH Plunging Joint
-
63703500678 Front Bushing Shaft kitFront Bushing Shaft kit
-
64705401290 LH KnuckleLH Knuckle
-
65705401291 RH KnuckleRH Knuckle
-
66705500255 Oil SealOil Seal
-
67705500259 Ball BearingBall Bearing
-
68705500260 Ball BearingBall Bearing
-
69705500261 Needle BearingNeedle Bearing
-
70705500265 SealSeal
-
71705500267 O-RingO-Ring
-
72705500506 Copper WasherCopper Washer
-
73705500892 ScrewScrew
-
74705500893 Vent ValveVent Valve
-
75705500894 Drain PlugDrain Plug
-
76703500049 Pinion Shim KitPinion Shim Kit
-
76705501162 Pinion Gear ShimPinion Gear Shim
-
77705501716 Wheel Hub Ass'yWheel Hub Ass'y
-
78705501588 10 Teeth Pinion10 Teeth Pinion
