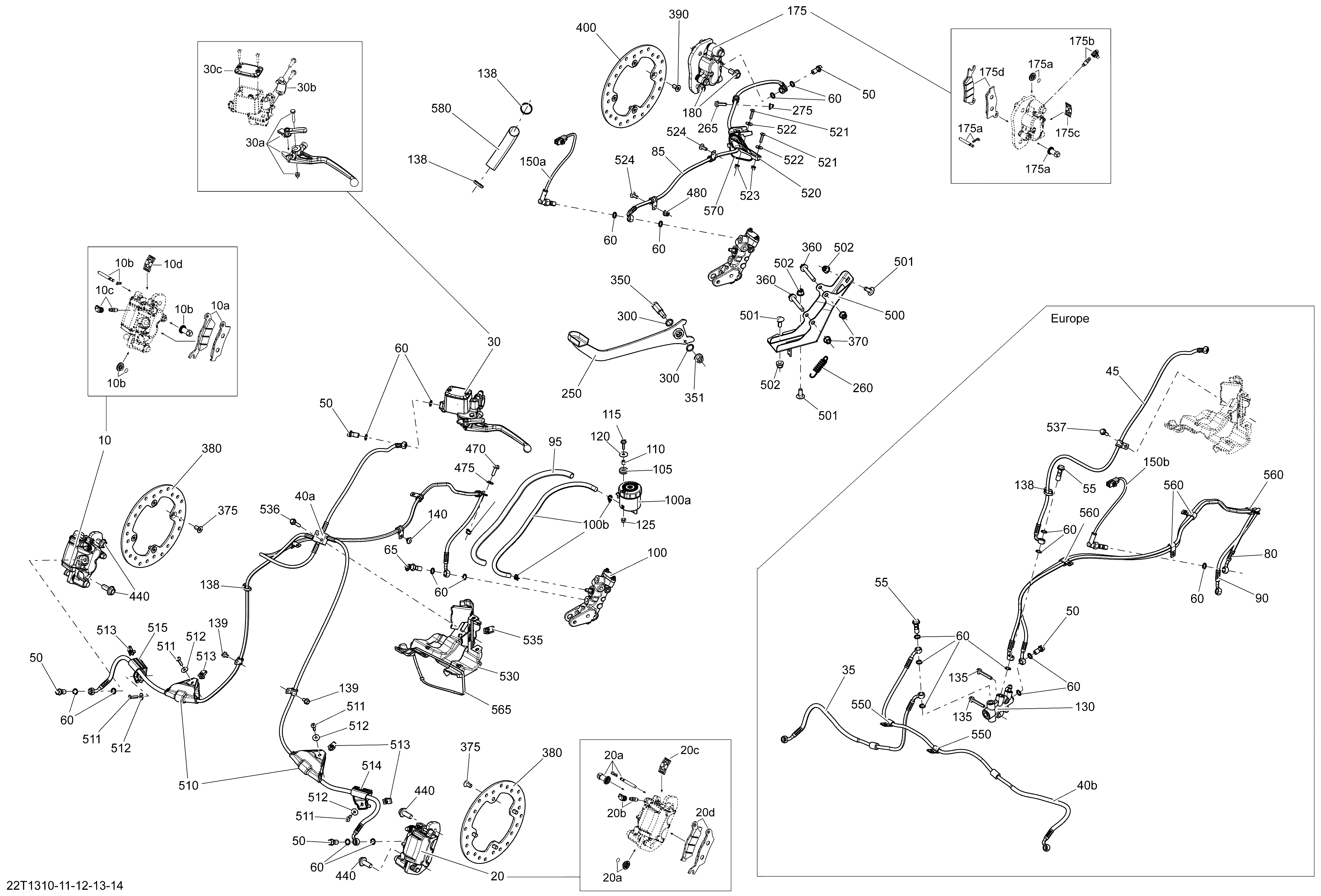

06- Brakes для BRP Outlander MAX 650EFI STD, DPS & XT - 2013

  • №
    Артикул
    Название
  • 10
    705600861 RH Front Caliper Ass'y. Includes 10 to 10d
    RH Front Caliper Ass'y. Includes 10 to 10d
  • 10a
    705601014 Brake Pad Kit
    Brake Pad Kit
  • 10b
    705601016 Pin Set
    Pin Set
  • 10c
    705601017 Bleeding Screw
    Bleeding Screw
  • 10d
    705601018 Spring
    Spring
  • 20
    705600862 LH Front Caliper Ass'y. Includes 20 to 20d
    LH Front Caliper Ass'y. Includes 20 to 20d
  • 20a
    705601016 Pin Set
    Pin Set
  • 20b
    705601017 Bleeding Screw
    Bleeding Screw
  • 20c
    705601018 Spring
    Spring
  • 20d
    705601015 Brake Pad Kit
    Brake Pad Kit
  • 30
    705600865 Front Master Cylinder. Includes 30 to 30c
    Front Master Cylinder. Includes 30 to 30c
  • 30a
    705601013 Lever Set
    Lever Set
  • 30b
    507032477 Clamp And Screw Kit
    Clamp And Screw Kit
  • 30c
    219800096 Cap Set
    Cap Set
  • 35
    705601125 RH Brake Line. Europe
    RH Brake Line. Europe
  • 40a
    705601122 Brake Line. Except Europe
    Brake Line. Except Europe
  • 40b
    705601124 LH Brake Line. Europe
    LH Brake Line. Europe
  • 45
    705600967 Brake Handle Line. Europe
    Brake Handle Line. Europe
  • 50
    705600609 Banjo Bolt. Except Europe
    Banjo Bolt. Except Europe
  • 50
    705600609 Banjo Bolt. Europe
    Banjo Bolt. Europe
  • 55
    705600958 Banjo Bolt. Europe
    Banjo Bolt. Europe
  • 60
    705600310 Copper Washer. Except Europe
    Copper Washer. Except Europe
  • 60
    705600310 Copper Washer. Europe
    Copper Washer. Europe
  • 65
    705601051 Bleeding Screw
    Bleeding Screw
  • 80
    705600964 Outlet Hose, Master Cylinder. Europe
    Outlet Hose, Master Cylinder. Europe
  • 85
    705601077 RH Brake Line. Except Europe
    RH Brake Line. Except Europe
  • 85
    705601078 RH Brake Line. Europe
    RH Brake Line. Europe
  • 90
    705600973 Inlet Hose, Master Cylinder. Europe
    Inlet Hose, Master Cylinder. Europe
  • 95
    415079900 Tubing 10 mm
    Tubing 10 mm
  • 100
    705600847 Rear Master Cylinder. Except Europe, Includes 100 to 100b
    Rear Master Cylinder. Except Europe, Includes 100 to 100b
  • 100
    705600982 Rear Cylinder Master Ass'y. Europe, Includes 100 to 100b
    Rear Cylinder Master Ass'y. Europe, Includes 100 to 100b
  • 100a
    705601020 Oil Tank
    Oil Tank
  • 100b
    705601019 Housing Oil Hose
    Housing Oil Hose
  • 105
    414036300 Grommet
    Grommet
  • 110
    293900112 Bushing
    Bushing
  • 115
    207652044 Flanged Hex. Screw M5 X 20
    Flanged Hex. Screw M5 X 20
  • 120
    224060201 Flat Washer
    Flat Washer
  • 125
    233251414 Hex. Flanged Elastic Nut M5
    Hex. Flanged Elastic Nut M5
  • 130
    705600994 Splitter. Europe
    Splitter. Europe
  • 135
    210264080 Hex. Screw M6 X 40. Europe
    Hex. Screw M6 X 40. Europe
  • 138
    414115200 Tie-Rap 180 mm. Except Europe
    Tie-Rap 180 mm. Except Europe
  • 138
    414115200 Tie-Rap 180 mm. Europe
    Tie-Rap 180 mm. Europe
  • 139
    210261040 Hex. Flanged Screw M6 X 10. Except Europe
    Hex. Flanged Screw M6 X 10. Except Europe
  • 140
    390406500 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 150a
    705600946 Brake Switch. Except Europe
    Brake Switch. Except Europe
  • 150b
    705600997 Brake Switch. Europe
    Brake Switch. Europe
  • 175
    705600859 RH Rear Caliper Ass'y. Includes 175 to 175d
    RH Rear Caliper Ass'y. Includes 175 to 175d
  • 175a
    705601016 Pin Set
    Pin Set
  • 175b
    705601017 Bleeding Screw
    Bleeding Screw
  • 175c
    705601018 Spring
    Spring
  • 175d
    705601014 Brake Pad Kit
    Brake Pad Kit
  • 180
    207502046 Hex. Flanged Screw M10 X 20
    Hex. Flanged Screw M10 X 20
  • 250
    705601155 Brake Pedal
    Brake Pedal
  • 260
    705600792 Brake Pedal Spring
    Brake Pedal Spring
  • 265
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 275
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 300
    293300144 O-Ring
    O-Ring
  • 350
    250000513 Shoulder Screw M10
    Shoulder Screw M10
  • 351
    233201416 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 360
    207685544 Hex. Flanged Screw M8 X 55
    Hex. Flanged Screw M8 X 55
  • 370
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 375
    235381646 Torx Screw M8 X 16, Scotch Grip
    Torx Screw M8 X 16, Scotch Grip
  • 380
    705600999 Disc Brake
    Disc Brake
  • 390
    235381646 Torx Screw M8 X 16, Scotch Grip
    Torx Screw M8 X 16, Scotch Grip
  • 400
    705600999 Disc Brake
    Disc Brake
  • 440
    207502546 Hex. Flanged Screw M10 X 25
    Hex. Flanged Screw M10 X 25
  • 470
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 475
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 480
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 500
    705202000 Bracket Brake Pedal
    Bracket Brake Pedal
  • 501
    207782044 Carriage Bolt, M8 X 20
    Carriage Bolt, M8 X 20
  • 502
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 510
    705600962 Front Hose Protector
    Front Hose Protector
  • 511
    250000130 Torx Screw M5 X 20
    Torx Screw M5 X 20
  • 512
    250200025 Washer M5
    Washer M5
  • 513
    250000079 Panel Nut M5 X 0.8
    Panel Nut M5 X 0.8
  • 514
    705601048 LH Hose Bracket
    LH Hose Bracket
  • 515
    705601049 RH Hose Bracket
    RH Hose Bracket
  • 520
    705600963 Rear Hose Protector
    Rear Hose Protector
  • 521
    250000465 Torx Screw M5 X 20
    Torx Screw M5 X 20
  • 522
    250200025 Washer M5
    Washer M5
  • 523
    233251494 Elastic Flanged Nut M5
    Elastic Flanged Nut M5
  • 524
    250000261 Torx Screw M6 X 16
    Torx Screw M6 X 16
  • 530
    705600983 Front Hose Bracket
    Front Hose Bracket
  • 535
    250000048 Panel Nut M6 X 1.0
    Panel Nut M6 X 1.0
  • 536
    207563044 Hex. Flanged Screw M6 X 30, Scotch Grip. Except Europe
    Hex. Flanged Screw M6 X 30, Scotch Grip. Except Europe
  • 537
    207562044 Flanged Screw M6 X 20, Scotch Grip. Europe
    Flanged Screw M6 X 20, Scotch Grip. Europe
  • 550
    293650219 Clamp. Europe
    Clamp. Europe
  • 560
    293650220 Clamp. Europe
    Clamp. Europe
  • 565
    293750047 Tie Rap, 533 mm
    Tie Rap, 533 mm
  • 570
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 580
    409902200 Tubing 25 mm
    Tubing 25 mm
