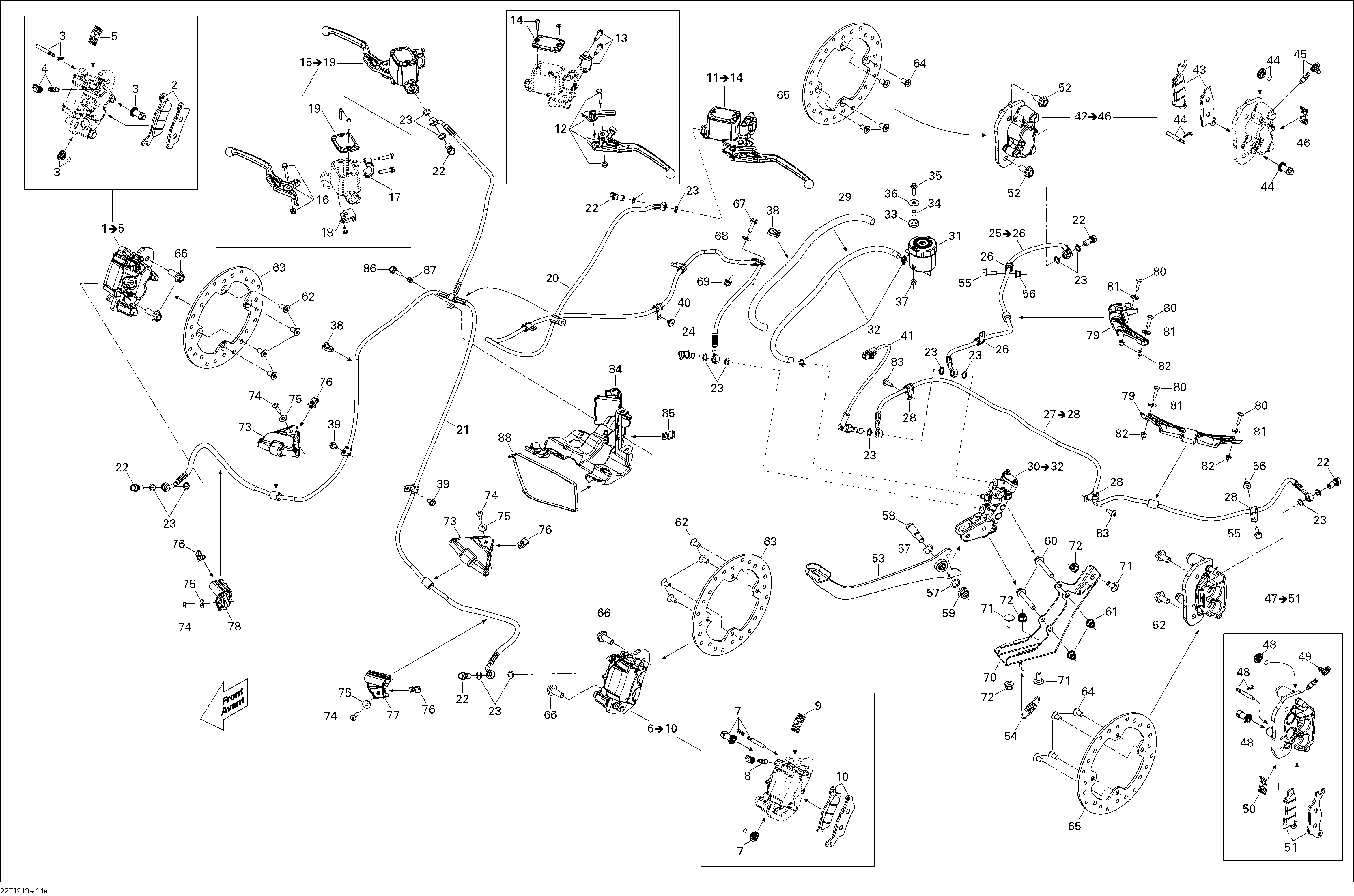

06- Hydraulic Brakes Except Europe для BRP Renegade STD, XXC, 800R EFI - 2012
-
№АртикулНазвание
-
1705600861 RH Front Caliper Ass'y. Includes 1 to 5RH Front Caliper Ass'y. Includes 1 to 5
-
2705601014 Brake Pad KitBrake Pad Kit
-
3705601016 Pin SetPin Set
-
4705601017 Bleeding ScrewBleeding Screw
-
5705601018 SpringSpring
-
6705600862 LH Front Caliper Ass'y. Includes 6 to 10LH Front Caliper Ass'y. Includes 6 to 10
-
7705601016 Pin SetPin Set
-
8705601017 Bleeding ScrewBleeding Screw
-
9705601018 SpringSpring
-
10705601015 Brake Pad KitBrake Pad Kit
-
11705600912 LH Front Master Cylinder Ass'y. Includes 11 to 14LH Front Master Cylinder Ass'y. Includes 11 to 14
-
12705601013 Lever SetLever Set
-
13705601022 Bracket KitBracket Kit
-
14705601021 Cap SetCap Set
-
15705600913 RH Front Master Cylinder Ass'y. Includes 15 to 19RH Front Master Cylinder Ass'y. Includes 15 to 19
-
16705601011 Lever SetLever Set
-
17705601022 Bracket KitBracket Kit
-
18705601012 Kit SwitchKit Switch
-
19705601021 Cap SetCap Set
-
20705601059 Brake LineBrake Line
-
21705601060 Brake LineBrake Line
-
22705600609 Banjo BoltBanjo Bolt
-
23705600310 Copper WasherCopper Washer
-
24705601051 Bleeding ScrewBleeding Screw
-
25705601002 Brake Line Ass'y. Includes 25 to 26Brake Line Ass'y. Includes 25 to 26
-
26705600459 ClampClamp
-
27705600911 Brake Line Ass'y. Includes 27 to 28Brake Line Ass'y. Includes 27 to 28
-
28705600459 ClampClamp
-
29415079900 Tubing 10 mmTubing 10 mm
-
30705600982 Rear Cylinder Master Ass'y. Includes 30 to 32Rear Cylinder Master Ass'y. Includes 30 to 32
-
31705601020 Oil TankOil Tank
-
32705601019 Housing Oil HoseHousing Oil Hose
-
33414036300 GrommetGrommet
-
34293900112 BushingBushing
-
35207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
36224060201 Flat WasherFlat Washer
-
37233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
38414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
39210261040 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
40390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
41705600997 Brake SwitchBrake Switch
-
42705600859 RH Rear Caliper Ass'y. Includes 42 to 46RH Rear Caliper Ass'y. Includes 42 to 46
-
43705601014 Brake Pad KitBrake Pad Kit
-
44705601016 Pin SetPin Set
-
45705601017 Bleeding ScrewBleeding Screw
-
46705601018 SpringSpring
-
47705600860 LH Rear Caliper Ass'y. Includes 47 to 51LH Rear Caliper Ass'y. Includes 47 to 51
-
48705601016 Pin SetPin Set
-
49705601017 Bleeding ScrewBleeding Screw
-
50705601018 SpringSpring
-
51705601015 Brake Pad KitBrake Pad Kit
-
52207502046 Hex. Flanged Screw M10 X 20Hex. Flanged Screw M10 X 20
-
53705600819 Brake PedalBrake Pedal
-
54705600792 Brake Pedal SpringBrake Pedal Spring
-
55207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
56233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
57293300144 O-RingO-Ring
-
58250000513 Shoulder Screw M10Shoulder Screw M10
-
59233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
60207685544 Hex. Flanged Screw M8 X 55Hex. Flanged Screw M8 X 55
-
61233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
62235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
63705600999 Disc BrakeDisc Brake
-
64235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
65705600999 Disc BrakeDisc Brake
-
66207502546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
67207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
68234062410 Flat Washer 6 mmFlat Washer 6 mm
-
69233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
70705202000 Bracket Brake PedalBracket Brake Pedal
-
71207782044 Carriage Bolt, M8 X 20Carriage Bolt, M8 X 20
-
72233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
73705600962 Front Hose ProtectorFront Hose Protector
-
74250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
75250200025 Washer M5Washer M5
-
76250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
77705601048 LH Hose BracketLH Hose Bracket
-
78705601049 RH Hose BracketRH Hose Bracket
-
79705600963 Rear Hose ProtectorRear Hose Protector
-
80250000465 Torx Screw M5 X 20Torx Screw M5 X 20
-
81250200025 Washer M5Washer M5
-
82233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
83250000261 Torx Screw M6 X 16Torx Screw M6 X 16
-
84705600983 Front Hose BracketFront Hose Bracket
-
85250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
86207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
87293900104 BushingBushing
-
88293750047 Tie Rap, 533 mmTie Rap, 533 mm
