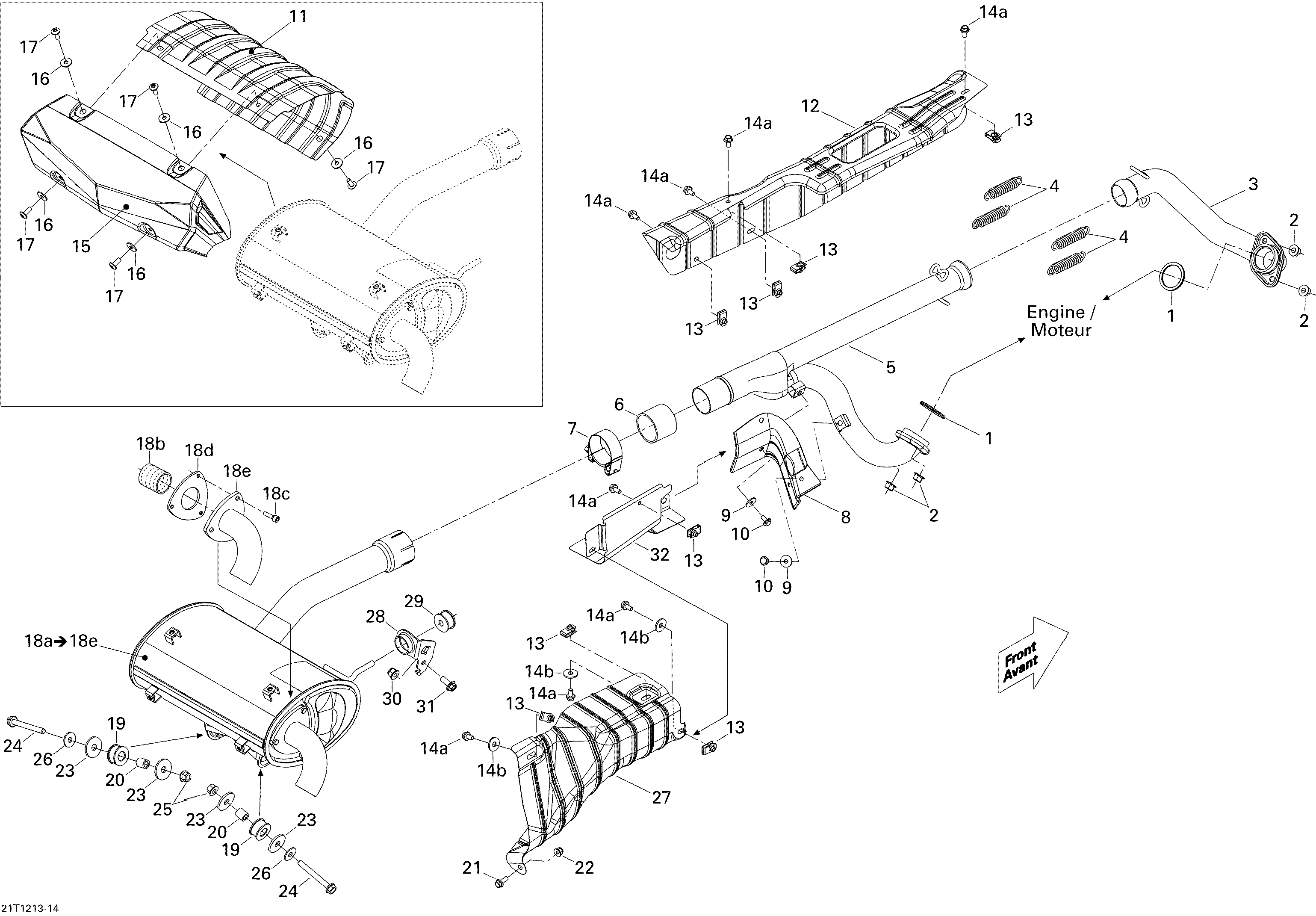

01- Exhaust System для BRP Renegade STD, XXC, 800R EFI - 2012
-
№АртикулНазвание
-
1707600317 GasketGasket
-
2233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
3707600764 Front Head PipeFront Head Pipe
-
4415107100 SpringSpring
-
5707600766 Rear Head PipeRear Head Pipe
-
6707600955 Pipe GasketPipe Gasket
-
7293650177 Norma Gear ClampNorma Gear Clamp
-
8707600932 Pipe ProtectorPipe Protector
-
9391302000 Flat WasherFlat Washer
-
10250000574 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
11707600737 Heat DeflectorHeat Deflector
-
12707600712 Heat DeflectorHeat Deflector
-
13250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
14a207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
14b234062410 Flat Washer 6 mmFlat Washer 6 mm
-
15707600738 Heat DeflectorHeat Deflector
-
16234062670 Flat WasherFlat Washer
-
17250000223 Torx Screw M6 X 16Torx Screw M6 X 16
-
18a707600748 Muffler. Includes 18a to 18eMuffler. Includes 18a to 18e
-
18a707600749 Muffler. Europe, Includes 18a to 18eMuffler. Europe, Includes 18a to 18e
-
18b715900089 Spark ArrestorSpark Arrestor
-
18c205062060 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
18d715900149 GasketGasket
-
18e715900144 Muffler End PieceMuffler End Piece
-
19707600701 Anti-Vibration RubberAnti-Vibration Rubber
-
20293900106 BushingBushing
-
21207661684 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
22233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
23503032900 WasherWasher
-
24207687044 Hex. Flanged Screw M8 X 70Hex. Flanged Screw M8 X 70
-
25233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
26234082410 Flat Washer 8 mmFlat Washer 8 mm
-
27707600869 Heat DeflectorHeat Deflector
-
28707600933 SupportSupport
-
29707600702 Anti-Vibration RubberAnti-Vibration Rubber
-
30233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
31207682034 Hex. Flanged ScrewHex. Flanged Screw
-
32707600983 Heat DeflectorHeat Deflector
