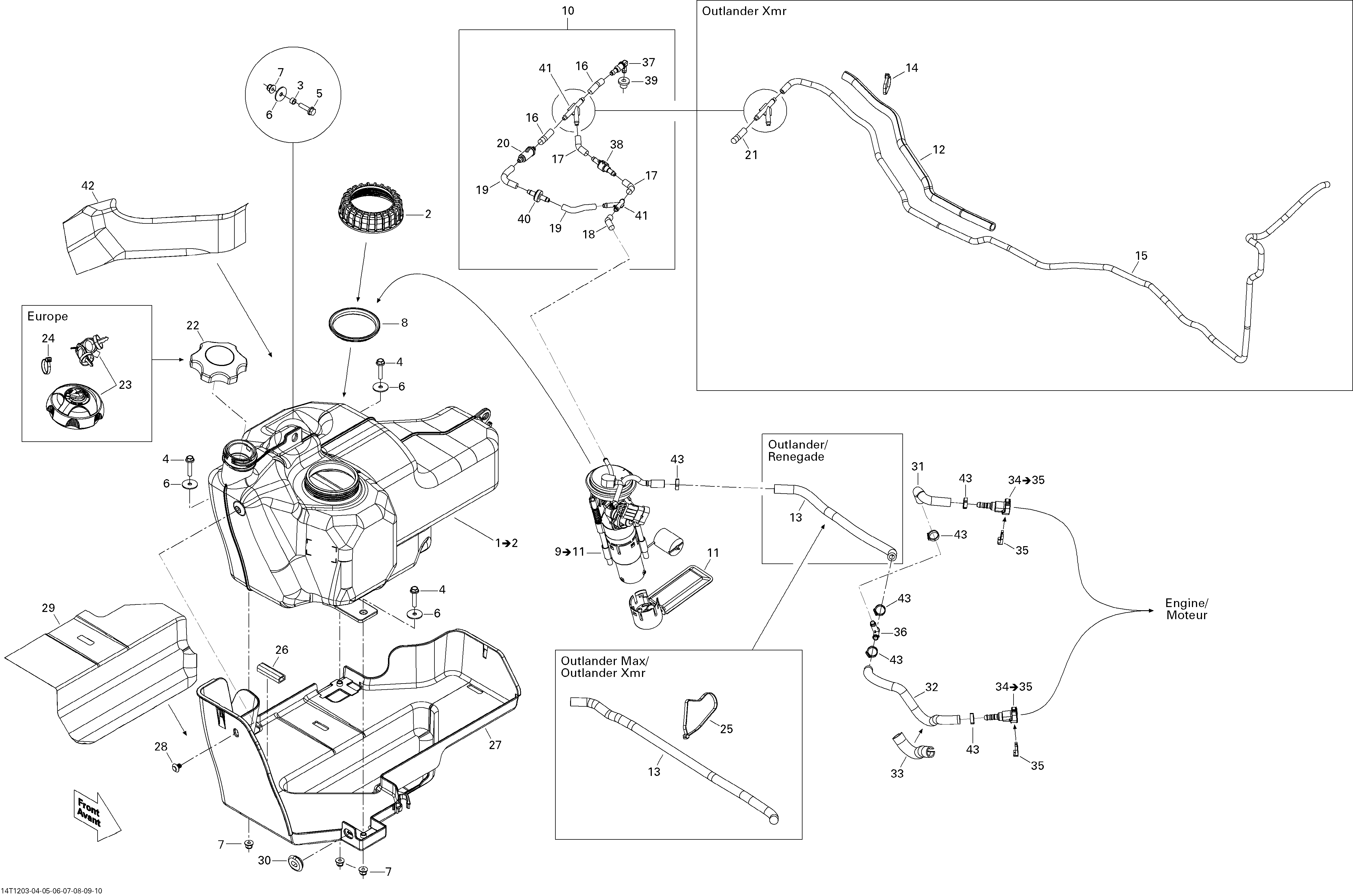

02- Fuel System для BRP Outlander MAX 800REFI STD, XT & XT-P - 2012
-
№АртикулНазвание
-
1709000220 Fuel Tank Ass'y. Includes 1 to 2Fuel Tank Ass'y. Includes 1 to 2
-
2513033040 Nut, Fuel Pump ModuleNut, Fuel Pump Module
-
3293900104 BushingBushing
-
4207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
5207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
6224060251 WasherWasher
-
7233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
8709000208 SealSeal
-
9703500781 Fuel Pump Kit. Includes 9 to 11Fuel Pump Kit. Includes 9 to 11
-
10715001288 Fuel Vent KitFuel Vent Kit
-
11709000389 Fuel Pre-FilterFuel Pre-Filter
-
13709000163 Fuel LineFuel Line
-
16415080200 Hose, PolyurethaneHose, Polyurethane
-
17415080200 Hose, PolyurethaneHose, Polyurethane
-
18415080200 Hose, PolyurethaneHose, Polyurethane
-
19415080200 Hose, PolyurethaneHose, Polyurethane
-
20709000330 FilterFilter
-
22513033025 Fuel Tank Cap. Except EuropeFuel Tank Cap. Except Europe
-
23709000267 Fuel Tank Cap. EuropeFuel Tank Cap. Europe
-
24293750001 Tie-Rap 94 mm. EuropeTie-Rap 94 mm. Europe
-
25293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
26293200093 Neoprene SealNeoprene Seal
-
27709000207 Tank ProtectorTank Protector
-
28293150168 Plastic Tuklock RivetPlastic Tuklock Rivet
-
29709000360 Reflecting SheetReflecting Sheet
-
31709000163 Fuel LineFuel Line
-
32709000163 Fuel LineFuel Line
-
33409901800 Tubing 13 mmTubing 13 mm
-
34709000125 Female Quick Fitting Ass'y. Includes 35 to 36Female Quick Fitting Ass'y. Includes 35 to 36
-
35513033135 Locking ClipLocking Clip
-
36293710136 Y-Fitting, 5/16''Y-Fitting, 5/16''
-
37414580600 Elbow Male ConnectorElbow Male Connector
-
38513033469 Check ValveCheck Valve
-
39293720029 GrommetGrommet
-
40275500398 Check ValveCheck Valve
-
41293710059 Y-FittingY-Fitting
-
42709000204 Reflecting SheetReflecting Sheet
-
43293650046 Oetiker ClampOetiker Clamp
