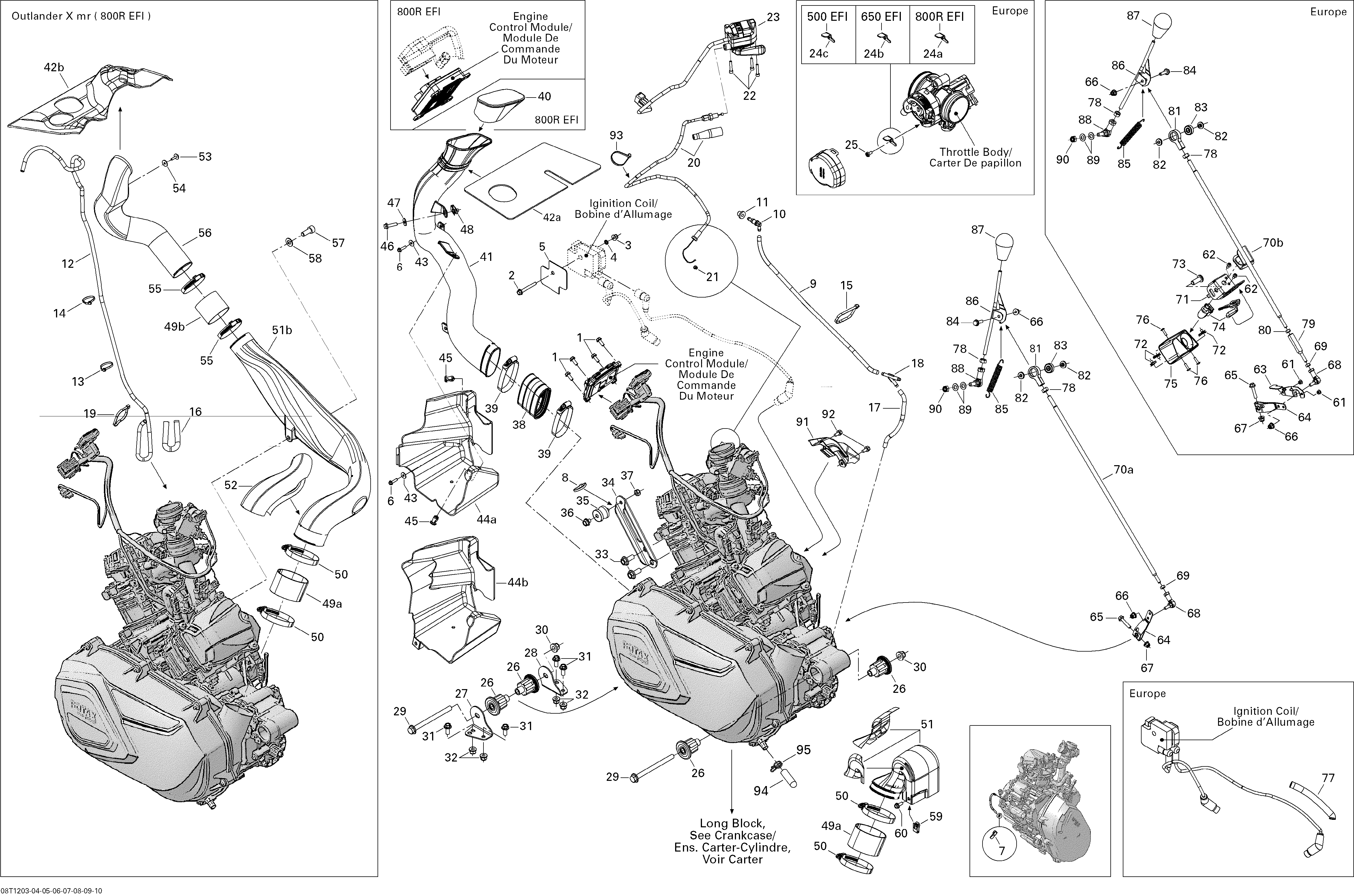

01- Engine для BRP Outlander MAX 800REFI STD, XT & XT-P - 2012

  • №
    Артикул
    Название
  • 1
    210261680 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 2
    207665044 Hex. Flanged Screw M6 X 50
    Hex. Flanged Screw M6 X 50
  • 3
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 4
    234461608 External Serrated Lock Washer 6 mm
    External Serrated Lock Washer 6 mm
  • 5
    710000073 Insulator Pad
    Insulator Pad
  • 6
    210252040 Hex. Forming Screw
    Hex. Forming Screw
  • 7
    293750002 Tie-Rap 142 mm
    Tie-Rap 142 mm
  • 8
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 9
    415080200 Hose, Polyurethane
    Hose, Polyurethane
  • 10
    414580600 Elbow Male Connector
    Elbow Male Connector
  • 11
    293720029 Grommet
    Grommet
  • 15
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 17
    415080200 Hose, Polyurethane
    Hose, Polyurethane
  • 18
    293710059 Y-Fitting
    Y-Fitting
  • 20
    707001018 Throttle Cable
    Throttle Cable
  • 21
    707000434 Cable Guide
    Cable Guide
  • 23
    707000595 Throttle Handle
    Throttle Handle
  • 22
    205052588 Socket Head Screw M5 X 25
    Socket Head Screw M5 X 25
  • 24a
    707000572 Speed Limiter. Europe
    Speed Limiter. Europe
  • 25
    250000332 Torx Screw M4 X 8. Europe
    Torx Screw M4 X 8. Europe
  • 26
    707000426 Anti-Vibration Mount
    Anti-Vibration Mount
  • 27
    707000802 Engine Bracket
    Engine Bracket
  • 28
    707000803 Engine Bracket
    Engine Bracket
  • 29
    230602546 Hex. Flanged Screw M10 X 125
    Hex. Flanged Screw M10 X 125
  • 30
    233201416 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 31
    207682044 Hex. Flanged Screw M8 X 20
    Hex. Flanged Screw M8 X 20
  • 32
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 33
    207602544 Hex. Flanged Screw M10 X 25
    Hex. Flanged Screw M10 X 25
  • 34
    707000883 Upper Engine Bracket, Black
    Upper Engine Bracket, Black
  • 35
    707000949 Rubber Isolator
    Rubber Isolator
  • 36
    207581046 Flanged Screw M8 x 10, Scotch Grip
    Flanged Screw M8 x 10, Scotch Grip
  • 37
    232581414 Hex. Elastic Stop Nut M8
    Hex. Elastic Stop Nut M8
  • 38
    707001043 Flexible Adaptor
    Flexible Adaptor
  • 39
    293650091 Norma Clamp
    Norma Clamp
  • 40
    707000776 Filter, CVT
    Filter, CVT
  • 41
    707000777 Air Inlet
    Air Inlet
  • 42a
    707000778 Water Deflector
    Water Deflector
  • 43
    234052600 Flat Washer 5 mm, Stainless
    Flat Washer 5 mm, Stainless
  • 44a
    707000779 Water Deflector
    Water Deflector
  • 45
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 46
    207662544 Hex. Flanged Screw M6 X 25
    Hex. Flanged Screw M6 X 25
  • 47
    234062600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 48
    250000048 Panel Nut M6 X 1.0
    Panel Nut M6 X 1.0
  • 49a
    707000789 Adaptor
    Adaptor
  • 50
    514052859 Norma Gear Clamp
    Norma Gear Clamp
  • 51a
    707000459 Air Outlet Ass'y
    Air Outlet Ass'y
  • 59
    250000048 Panel Nut M6 X 1.0
    Panel Nut M6 X 1.0
  • 60
    210261680 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 61
    390402200 Pop Rivet 3/16''. Europe
    Pop Rivet 3/16''. Europe
  • 62
    205951046 Socket Head Screw M5 X 10. Europe
    Socket Head Screw M5 X 10. Europe
  • 63
    707000692 Antitheft Plate. Europe
    Antitheft Plate. Europe
  • 64
    707000691 Lever
    Lever
  • 65
    207663044 Hex. Flanged Screw M6 X 30
    Hex. Flanged Screw M6 X 30
  • 66
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 67
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 68
    707000545 LH Ball Joint
    LH Ball Joint
  • 69
    232066414 LH Hex. Nut M6
    LH Hex. Nut M6
  • 70a
    707000579 Threaded Rod
    Threaded Rod
  • 70b
    707000661 Threaded Rod. Europe
    Threaded Rod. Europe
  • 71
    707000664 Fixing Plate. Europe
    Fixing Plate. Europe
  • 72
    250100143 Extruded Panel Nut M4 X 0.7. Europe
    Extruded Panel Nut M4 X 0.7. Europe
  • 73
    205402596 Socket Head Screw M10 X 25. Europe
    Socket Head Screw M10 X 25. Europe
  • 74
    707000666 Lock. Europe
    Lock. Europe
  • 75
    707000667 Cover Lock. Europe
    Cover Lock. Europe
  • 76
    250000242 Truss Torx Screw M4 X 16. Europe
    Truss Torx Screw M4 X 16. Europe
  • 77
    409901800 Tubing 13 mm. Europe
    Tubing 13 mm. Europe
  • 78
    232081414 Hex. Nut M8
    Hex. Nut M8
  • 79
    707000668 Adjustment Block. Europe
    Adjustment Block. Europe
  • 80
    232061600 Hex. Nut M6. Europe
    Hex. Nut M6. Europe
  • 81
    707000575 Pivot
    Pivot
  • 82
    707000576 Bushing
    Bushing
  • 83
    293350039 Ball Bearing
    Ball Bearing
  • 84
    207662544 Hex. Flanged Screw M6 X 25
    Hex. Flanged Screw M6 X 25
  • 85
    707000577 Spring
    Spring
  • 86
    707000783 Lever Arm
    Lever Arm
  • 87
    705500022 Lever Button
    Lever Button
  • 88
    707000546 RH Ball Joint
    RH Ball Joint
  • 89
    506151252 Washer
    Washer
  • 90
    232581414 Hex. Elastic Stop Nut M8
    Hex. Elastic Stop Nut M8
  • 91
    707000410 Cover OPS
    Cover OPS
  • 92
    210261280 Hex. Flanged Screw M6 X 12
    Hex. Flanged Screw M6 X 12
  • 93
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 94
    707001173 Drain Pluig
    Drain Pluig
  • 95
    707001175 Clamp
    Clamp
