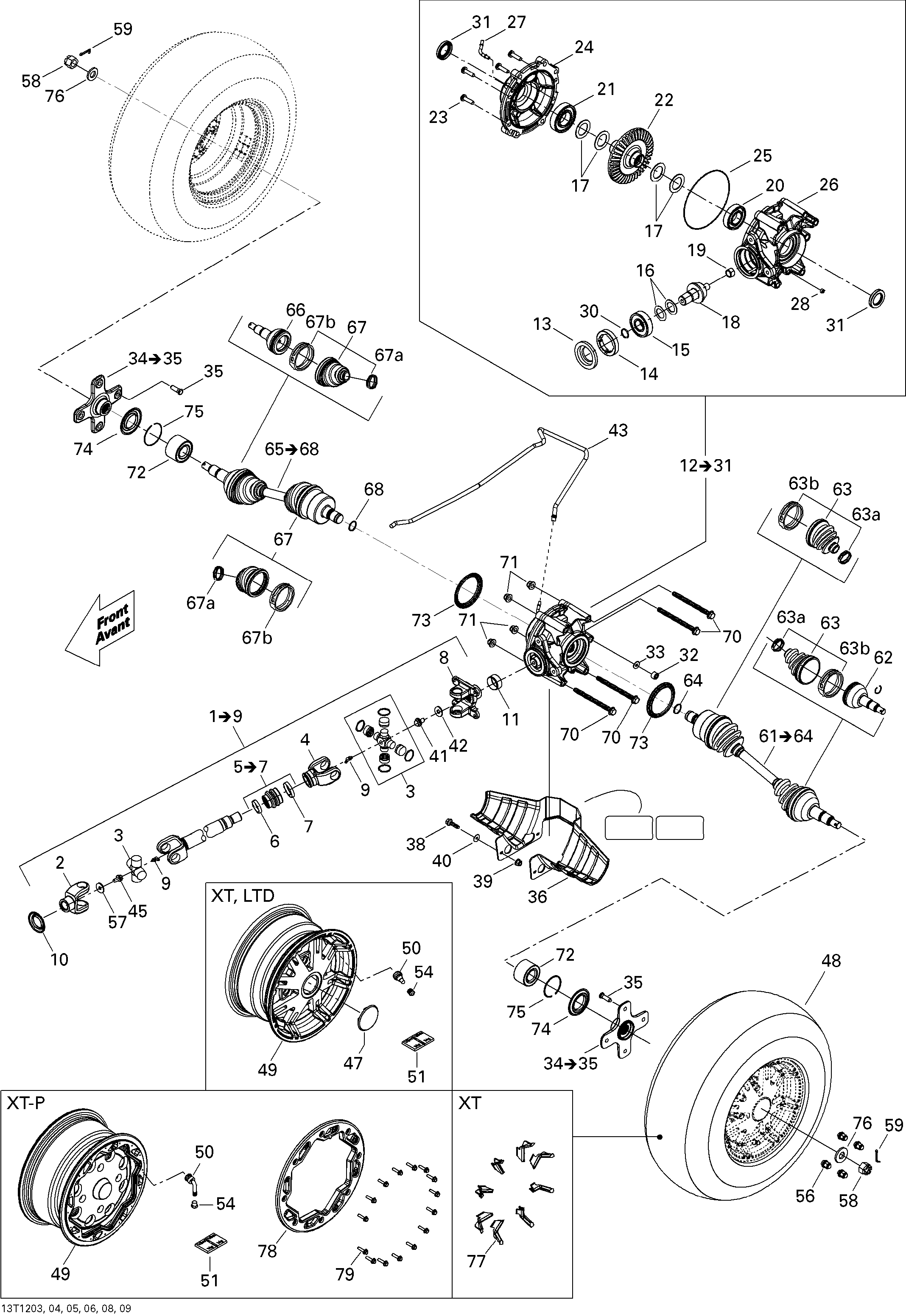

08- Drive System, Rear для BRP Outlander MAX 800REFI LTD - 2012

№

Артикул

Название
1

703500770 Rear Propeller Shaft Kit

Rear Propeller Shaft Kit
2

705501372 Differential Fixed Joint

Differential Fixed Joint
3

703000022 Unit Pack Kit

Unit Pack Kit
4

705501072 Sliding Joint

Sliding Joint
5

703500255 Rubber Boot Kit

Rubber Boot Kit
6

293650138 Oetiker Clamp

Oetiker Clamp
8

705500526 Disc Joint

Disc Joint
9

705500841 Grease Fitting

Grease Fitting
10

705501123 Protector

Protector
11

705400036 Wear Ring

Wear Ring
12

705501569 Rear Differential Ass'y

Rear Differential Ass'y
13

705400027 Oil Seal

Oil Seal
14

705500987 Nut

Nut
15

705500260 Ball Bearing

Ball Bearing
16

705500075 Pinion Gear Shim .022''

Pinion Gear Shim .022''
16

703500049 Pinion Shim Kit

Pinion Shim Kit
16

705501163 Pinion Gear Shim 2.12mm

Pinion Gear Shim 2.12mm
17

703500548 Differential Shim Kit

Differential Shim Kit
18

705501570 10Teeth Pinion

10Teeth Pinion
19

705501408 Needle Bearing

Needle Bearing
20

705500749 Ball Bearing

Ball Bearing
21

705501389 Ball Bearing

Ball Bearing
22

705501403 36Teeth Pinion

36Teeth Pinion
23

705500892 Screw

Screw
24

705501507 Rear Differential Cover

Rear Differential Cover
25

705500265 Seal

Seal
26

705501395 Pinion Rear Cover

Pinion Rear Cover
27

705500893 Vent Valve

Vent Valve
28

705500894 Drain Plug

Drain Plug
30

705500267 O-Ring

O-Ring
31

705501196 Oil Seal

Oil Seal
32

250400041 Screw Plug

Screw Plug
33

705500506 Copper Washer

Copper Washer
34

705501131 Wheel Hub Ass'y

Wheel Hub Ass'y
35

250300034 Wheel Stud

Wheel Stud
36

703500722 Protector Kit

Protector Kit
38

207662544 Hex. Flanged Screw M6 X 25

Hex. Flanged Screw M6 X 25
39

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6
40

250200082 Flat Washer

Flat Washer
41

250000359 Hex Flanged Screw M12 x 16

Hex Flanged Screw M12 x 16
42

250200102 Flat Washer M12

Flat Washer M12
43

415080200 Hose, Polyurethane

Hose, Polyurethane
45

250000359 Hex Flanged Screw M12 x 16

Hex Flanged Screw M12 x 16
47

705400680 Wheel Cap

Wheel Cap
48

705500940 Rear Tire

Rear Tire
48

705500606 Rear Tire. Europe

Rear Tire. Europe
49

705501015 Rear Wheel

Rear Wheel
50

705400193 Rim Valve with Cap

Rim Valve with Cap
51

705501385 1/2 OZ Weight

1/2 OZ Weight
54

293000110 Valve Cap

Valve Cap
56

250100082 Chrome Wheel Nut M10 X 1.25

Chrome Wheel Nut M10 X 1.25
57

250200102 Flat Washer M12

Flat Washer M12
58

250100047 Hex. Castellated Nut M18

Hex. Castellated Nut M18
59

250400036 Cotter Pin

Cotter Pin
61

705500979 LH CV Joint Ass'y

LH CV Joint Ass'y
62

705500980 CV Joint

CV Joint
63

705500870 Boot Kit

Boot Kit
63a

293650203 Oetiker Clamp

Oetiker Clamp
63b

293650204 Oetiker Clamp

Oetiker Clamp
64

705500845 Circlip

Circlip
65

705500983 RH CV Joint Ass'y

RH CV Joint Ass'y
66

705500980 CV Joint

CV Joint
67

705500870 Boot Kit

Boot Kit
67a

293650203 Oetiker Clamp

Oetiker Clamp
67b

293650204 Oetiker Clamp

Oetiker Clamp
68

705500845 Circlip

Circlip
70

250000508 Hex. Flanged Screw M10 x 135

Hex. Flanged Screw M10 x 135
71

233201434 Hex. Flanged Elastic Nut M10

Hex. Flanged Elastic Nut M10
72

293350040 Cone Bearing

Cone Bearing
73

705501124 Wear Ring

Wear Ring
74

705501121 Wear Sleeve

Wear Sleeve
75

293370019 Circlip

Circlip
76

250200049 Spring Washer

Spring Washer
