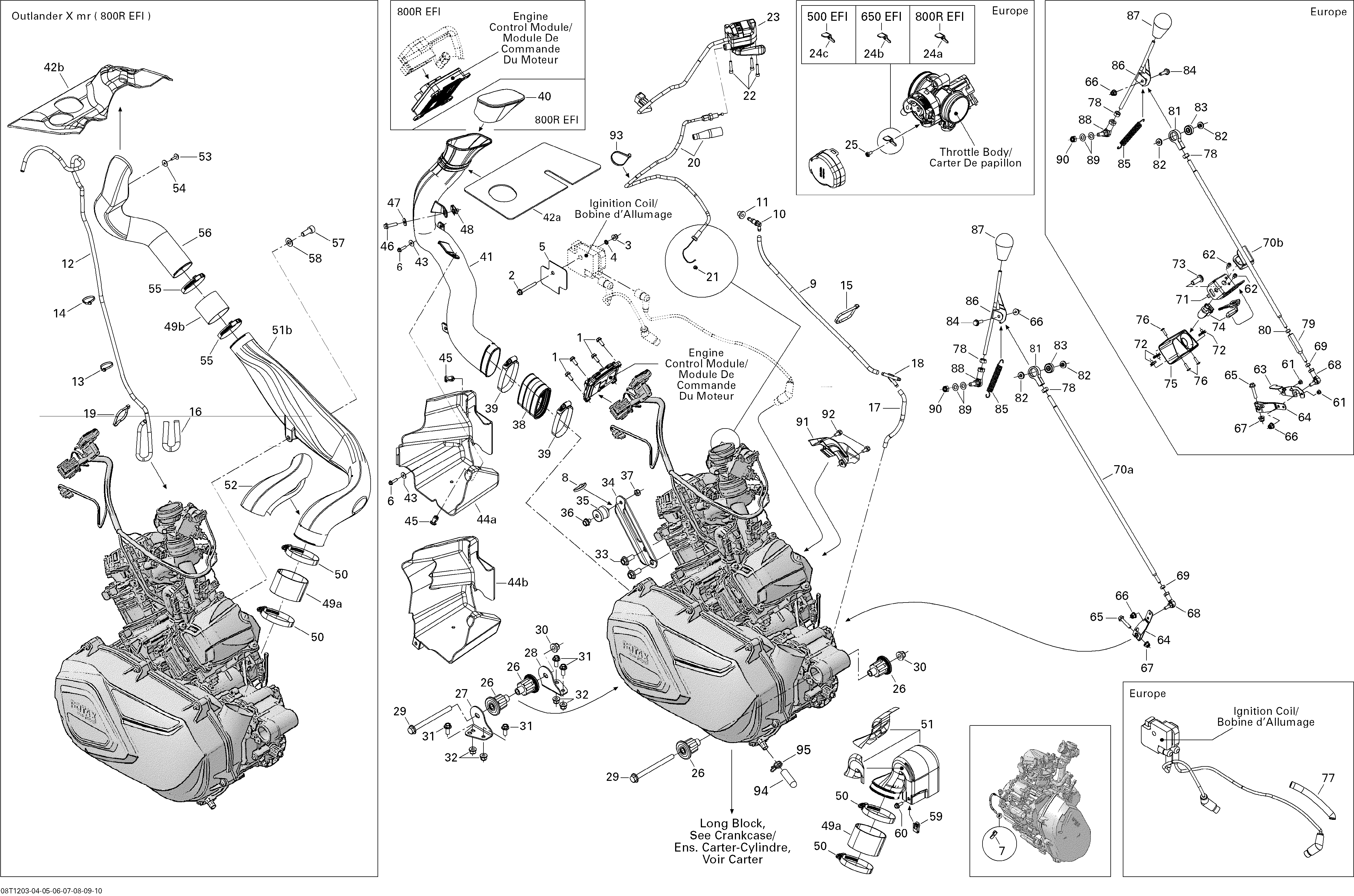

01- Engine для BRP Outlander MAX 800REFI LTD - 2012
-
№АртикулНазвание
-
1210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
2207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
3233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
4234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
5710000073 Insulator PadInsulator Pad
-
6210252040 Hex. Forming ScrewHex. Forming Screw
-
7293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
8414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
9415080200 Hose, PolyurethaneHose, Polyurethane
-
10414580600 Elbow Male ConnectorElbow Male Connector
-
11293720029 GrommetGrommet
-
15414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
17415080200 Hose, PolyurethaneHose, Polyurethane
-
18293710059 Y-FittingY-Fitting
-
20707001018 Throttle CableThrottle Cable
-
21707000434 Cable GuideCable Guide
-
23707000595 Throttle HandleThrottle Handle
-
22205052588 Socket Head Screw M5 X 25Socket Head Screw M5 X 25
-
24a707000572 Speed Limiter. EuropeSpeed Limiter. Europe
-
25250000332 Torx Screw M4 X 8. EuropeTorx Screw M4 X 8. Europe
-
26707000426 Anti-Vibration MountAnti-Vibration Mount
-
27707000802 Engine BracketEngine Bracket
-
28707000803 Engine BracketEngine Bracket
-
29230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
30233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
31207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
32233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
33207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
34707000883 Upper Engine Bracket, BlackUpper Engine Bracket, Black
-
35707000949 Rubber IsolatorRubber Isolator
-
36207581046 Flanged Screw M8 x 10, Scotch GripFlanged Screw M8 x 10, Scotch Grip
-
37232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
38707001043 Flexible AdaptorFlexible Adaptor
-
39293650091 Norma ClampNorma Clamp
-
40707000776 Filter, CVTFilter, CVT
-
41707000777 Air InletAir Inlet
-
42a707000778 Water DeflectorWater Deflector
-
43234052600 Flat Washer 5 mm, StainlessFlat Washer 5 mm, Stainless
-
44a707000779 Water DeflectorWater Deflector
-
45293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
46207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
47234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
48250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
49a707000789 AdaptorAdaptor
-
50514052859 Norma Gear ClampNorma Gear Clamp
-
51a707000459 Air Outlet Ass'yAir Outlet Ass'y
-
59250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
60210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
61390402200 Pop Rivet 3/16''. EuropePop Rivet 3/16''. Europe
-
62205951046 Socket Head Screw M5 X 10. EuropeSocket Head Screw M5 X 10. Europe
-
63707000692 Antitheft Plate. EuropeAntitheft Plate. Europe
-
64707000691 LeverLever
-
65207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
66233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
67233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
68707000545 LH Ball JointLH Ball Joint
-
69232066414 LH Hex. Nut M6LH Hex. Nut M6
-
70a707000579 Threaded RodThreaded Rod
-
70b707000661 Threaded Rod. EuropeThreaded Rod. Europe
-
71707000664 Fixing Plate. EuropeFixing Plate. Europe
-
72250100143 Extruded Panel Nut M4 X 0.7. EuropeExtruded Panel Nut M4 X 0.7. Europe
-
73205402596 Socket Head Screw M10 X 25. EuropeSocket Head Screw M10 X 25. Europe
-
74707000666 Lock. EuropeLock. Europe
-
75707000667 Cover Lock. EuropeCover Lock. Europe
-
76250000242 Truss Torx Screw M4 X 16. EuropeTruss Torx Screw M4 X 16. Europe
-
77409901800 Tubing 13 mm. EuropeTubing 13 mm. Europe
-
78232081414 Hex. Nut M8Hex. Nut M8
-
79707000668 Adjustment Block. EuropeAdjustment Block. Europe
-
80232061600 Hex. Nut M6. EuropeHex. Nut M6. Europe
-
81707000575 PivotPivot
-
82707000576 BushingBushing
-
83293350039 Ball BearingBall Bearing
-
84207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
85707000577 SpringSpring
-
86707000783 Lever ArmLever Arm
-
87705500022 Lever ButtonLever Button
-
88707000546 RH Ball JointRH Ball Joint
-
89506151252 WasherWasher
-
90232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
91707000410 Cover OPSCover OPS
-
92210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
93293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
94707001173 Drain PluigDrain Pluig
-
95707001175 ClampClamp
