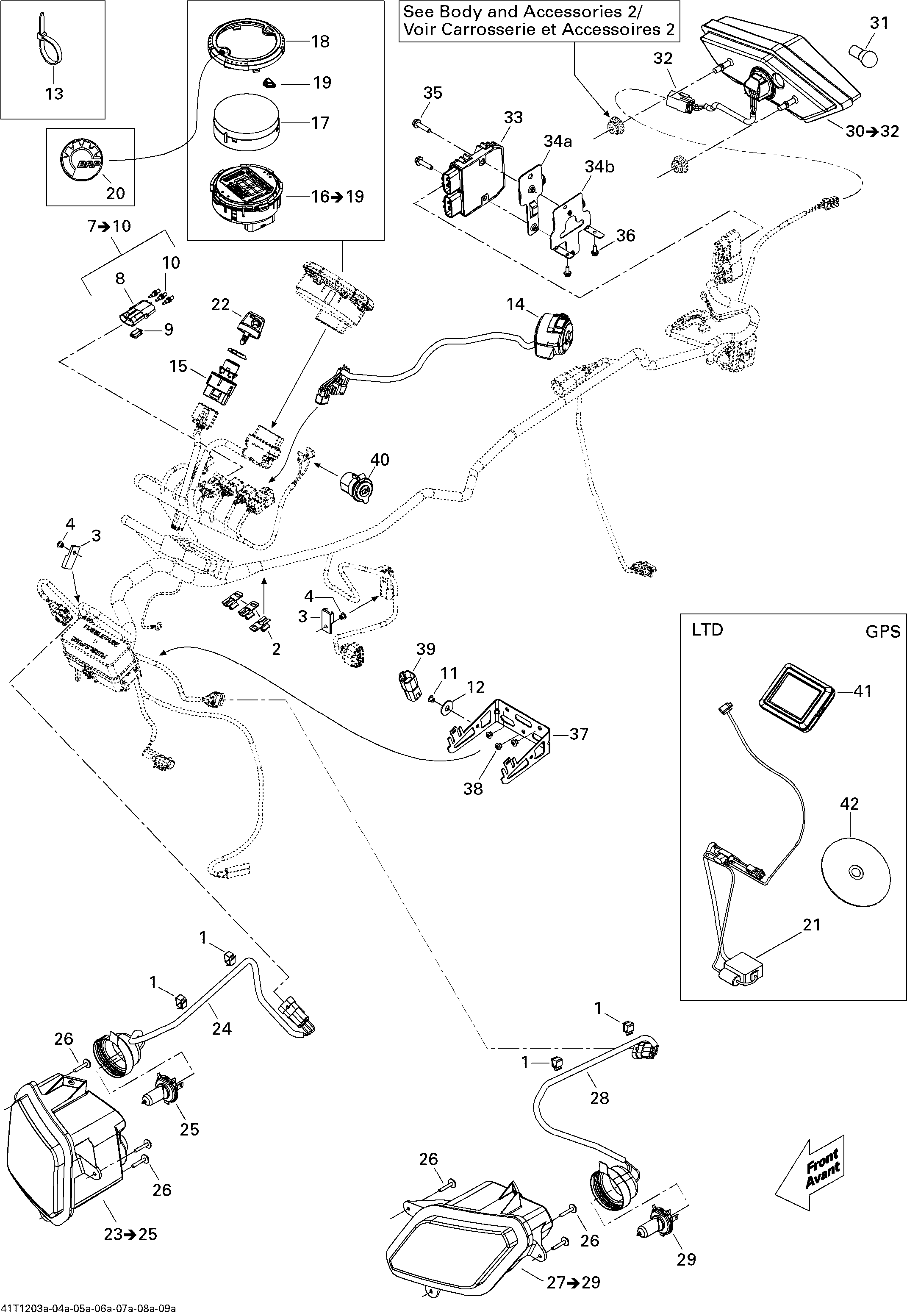

10- Electrical Accessories 1 для BRP Outlander 650EFI STD & XT - 2012

  • №
    Артикул
    Название
  • 1
    414227300 Clip
    Clip
  • 2
    515175283 Housing Support. Europe
    Housing Support. Europe
  • 2
    515175283 Housing Support
    Housing Support
  • 3
    270000141 Clip
    Clip
  • 4
    390402400 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 7
    710000917 Connector Ass'y. Includes 7 to 10
    Connector Ass'y. Includes 7 to 10
  • 8
    278000281 Female Terminal Housing, 3 Circuits
    Female Terminal Housing, 3 Circuits
  • 9
    710000992 Clip
    Clip
  • 10
    278000216 Wire Seal
    Wire Seal
  • 11
    390402300 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 12
    517124300 Washer
    Washer
  • 13
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 13
    293750001 Tie-Rap 94 mm
    Tie-Rap 94 mm
  • 13
    293750009 Tie-Rap 173 mm
    Tie-Rap 173 mm
  • 13
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 13
    293750041 Tie-rap 627 mm
    Tie-rap 627 mm
  • 14
    710002884 Multi-Fonction Handle. STD
    Multi-Fonction Handle. STD
  • 14
    710002883 Multi-fonction Handle. XT, XTP, XMR, LTD
    Multi-fonction Handle. XT, XTP, XMR, LTD
  • 14
    710002749 Multi-Function Handle. Europe
    Multi-Function Handle. Europe
  • 15
    710002324 Ignition Switch
    Ignition Switch
  • 16
    710001978 Speedometer Ass'y. Includes 16 to 19
    Speedometer Ass'y. Includes 16 to 19
  • 17
    415129320 Lens
    Lens
  • 18
    710001416 Trim Ring
    Trim Ring
  • 19
    710001473 Button
    Button
  • 20
    704901270 BRP Logo, 13 mm
    BRP Logo, 13 mm
  • 22
    710000817 Black-Electronic Key
    Black-Electronic Key
  • 22
    710000817 Black-Electronic Key. Europe
    Black-Electronic Key. Europe
  • 23
    710001496 RH Headlamp Ass'y. Includes 23 to 25
    RH Headlamp Ass'y. Includes 23 to 25
  • 23
    710000861 RH Headlamp Ass'y. Europe, Includes 23 to 25
    RH Headlamp Ass'y. Europe, Includes 23 to 25
  • 24
    710000923 Headlamp Harness
    Headlamp Harness
  • 25
    710000871 Bulb, 12V 35/35W
    Bulb, 12V 35/35W
  • 26
    250000101 Plastite Screw Type K-40, M4 X 25
    Plastite Screw Type K-40, M4 X 25
  • 27
    710001497 LH Headlamp Ass'y. Includes 27 to 29
    LH Headlamp Ass'y. Includes 27 to 29
  • 27
    710000862 LH Headlamp Ass'y. Europe, Includes 27 to 29
    LH Headlamp Ass'y. Europe, Includes 27 to 29
  • 28
    710000923 Headlamp Harness
    Headlamp Harness
  • 29
    710000871 Bulb, 12V 35/35W
    Bulb, 12V 35/35W
  • 30
    710001203 Tail Light Housing Ass'y. Includes 30 to 32
    Tail Light Housing Ass'y. Includes 30 to 32
  • 30
    710001204 Tail Light Housing Ass'y. Europe, Includes 30 to 32
    Tail Light Housing Ass'y. Europe, Includes 30 to 32
  • 31
    410504100 Tail Light Bulb
    Tail Light Bulb
  • 32
    515175494 Male Housing, 3 Circuits
    Male Housing, 3 Circuits
  • 33
    710001103 Voltage Regulator. STD
    Voltage Regulator. STD
  • 33
    710001191 Voltage Regulator. XT, XTP, XMR, LTD
    Voltage Regulator. XT, XTP, XMR, LTD
  • 34a
    710001262 Rectifier Support. STD
    Rectifier Support. STD
  • 34b
    710001572 Rectifier Support. XT, XTP, XMR, LTD
    Rectifier Support. XT, XTP, XMR, LTD
  • 35
    210262580 Hex. Flanged Forming Screw M6 X 25
    Hex. Flanged Forming Screw M6 X 25
  • 36
    207661644 Hex. Flanged Screw M6 X 16. XT, XTP, XMR, LTD
    Hex. Flanged Screw M6 X 16. XT, XTP, XMR, LTD
  • 37
    710002176 Fuse Support
    Fuse Support
  • 38
    390402400 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 39
    278002148 Diagnostic Connector Cap
    Diagnostic Connector Cap
  • 40
    710001248 Outlet DC
    Outlet DC
