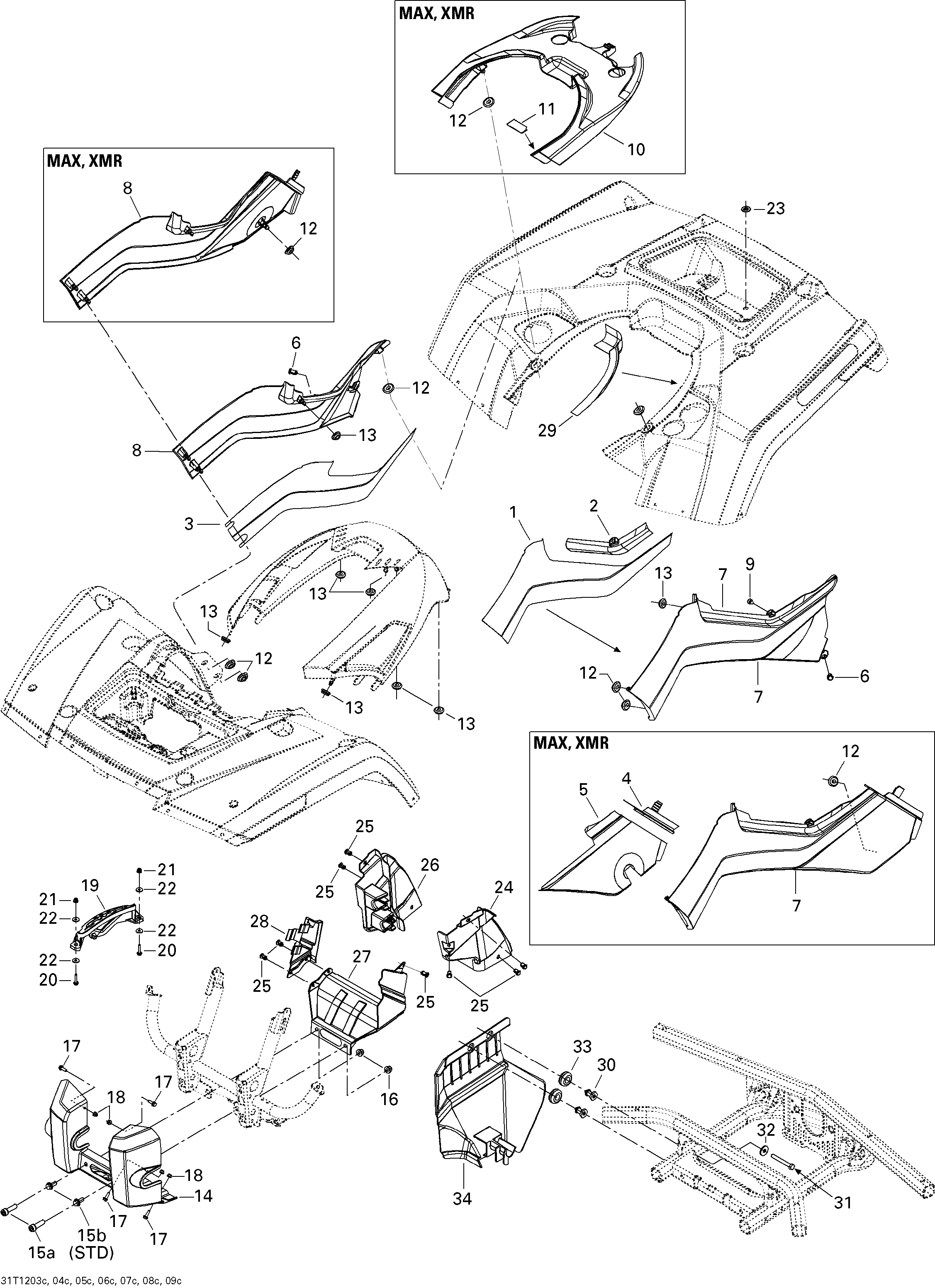

09- Body And Accessories 3 для BRP Outlander 650EFI STD & XT - 2012
-
№АртикулНазвание
-
1705005620 Reflective SheetReflective Sheet
-
2705005617 Reflective SheetReflective Sheet
-
3705005623 Reflective SheetReflective Sheet
-
5705005622 Reflective Sheet. OutlanderReflective Sheet. Outlander
-
6293150089 Tuflok Plastic Rivet. OutlanderTuflok Plastic Rivet. Outlander
-
7705002946 LH Lateral Panel, Yellow. Outlander YellowLH Lateral Panel, Yellow. Outlander Yellow
-
7705002948 LH Lateral Panel, Red. Outlander Viper RedLH Lateral Panel, Red. Outlander Viper Red
-
7705002958 LH Lateral Panel. Outlander Deep BlackLH Lateral Panel. Outlander Deep Black
-
7705005061 LH Lateral Panel, CAMO. Outlander CamoLH Lateral Panel, CAMO. Outlander Camo
-
7705005045 LH Lateral Panel, Magnesium. Outlander MagnesiumLH Lateral Panel, Magnesium. Outlander Magnesium
-
8705002949 RH Lateral Panel, Yellow. Outlander YellowRH Lateral Panel, Yellow. Outlander Yellow
-
8705002951 RH Lateral Panel, Red. Outlander Viper RedRH Lateral Panel, Red. Outlander Viper Red
-
8705002959 RH Lateral Panel. Outlander Deep BlackRH Lateral Panel. Outlander Deep Black
-
8705005062 RH Lateral Panel, CAMO. Outlander CamoRH Lateral Panel, CAMO. Outlander Camo
-
8705005048 RH Lateral Panel, Magneisum. Outlander MagnesiumRH Lateral Panel, Magneisum. Outlander Magnesium
-
9293830005 Rubber PlugRubber Plug
-
12705000321 Oval Washer. OutlanderOval Washer. Outlander
-
13705003264 GrommetGrommet
-
14705003495 Guard Plate. STDGuard Plate. STD
-
14705003496 Guard Plate. XTGuard Plate. XT
-
15a205003544 Socket Screw M10 X 35. XTSocket Screw M10 X 35. XT
-
15b207602544 Hex. Flanged Screw M10 X 25. STDHex. Flanged Screw M10 X 25. STD
-
16233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
17207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
18233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
19705003838 Lever IndicatorLever Indicator
-
20207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
21233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
22250200072 Flat WasherFlat Washer
-
23414859400 CapCap
-
24705003634 LH Inner FenderLH Inner Fender
-
25293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
26705002124 RH Inner FenderRH Inner Fender
-
27705002988 LH DeflectorLH Deflector
-
28705002135 RH DeflectorRH Deflector
-
29705002085 Reflective SheetReflective Sheet
-
30517303439 KnobKnob
-
31241154540 Hex. Screw K50 X 45Hex. Screw K50 X 45
-
32391301600 WasherWasher
-
33293720053 GrommetGrommet
-
34705004036 Thread CoverThread Cover
