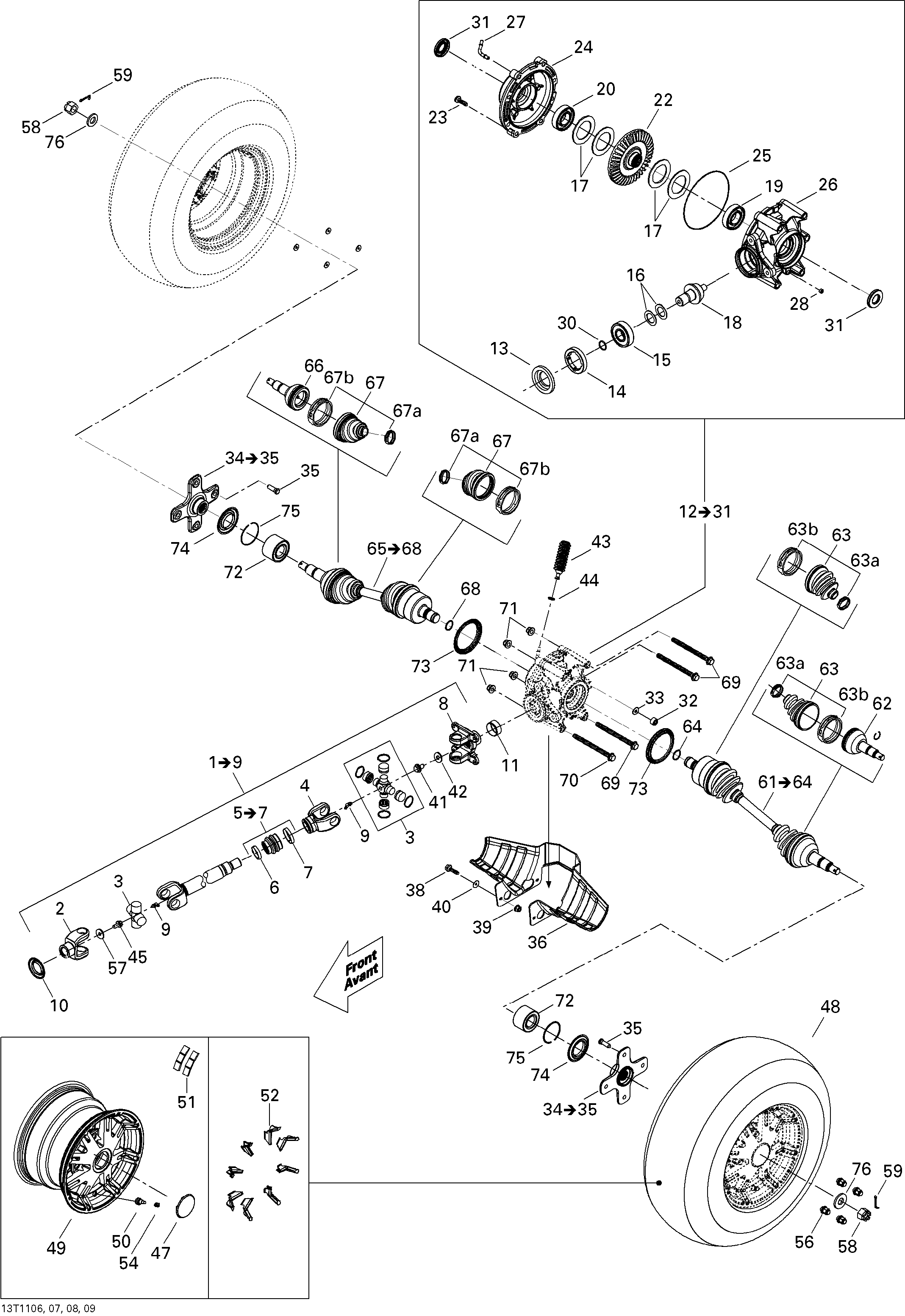

08- Drive System, Rear для BRP Outlander Max 800R EFI - 2011

№

Артикул

Название
1

703500770 Rear Propeller Shaft Kit. Includes 1 to 9

Rear Propeller Shaft Kit. Includes 1 to 9
2

705500371 Fix Joint

Fix Joint
3

703000022 Unit Pack Kit

Unit Pack Kit
4

705501072 Sliding Joint

Sliding Joint
5

703500255 Rubber Boot Kit

Rubber Boot Kit
6

293650138 Oetiker Clamp

Oetiker Clamp
7

705400148 Collar

Collar
8

705500526 Disc Joint

Disc Joint
9

705500841 Grease Fitting

Grease Fitting
10

705501123 Protector

Protector
11

705400036 Wear Ring

Wear Ring
12

705501412 Rear Differential Ass'y. Includes 12 to 31

Rear Differential Ass'y. Includes 12 to 31
13

705400027 Oil Seal

Oil Seal
14

705500987 Nut

Nut
15

705500260 Ball Bearing

Ball Bearing
16

705500075 Pinion Gear Shim .022''

Pinion Gear Shim .022''
16

703500049 Pinion Shim Kit

Pinion Shim Kit
16

705501163 Pinion Gear Shim 2.12mm

Pinion Gear Shim 2.12mm
17

703500548 Differential Shim Kit

Differential Shim Kit
18

705501570 10Teeth Pinion

10Teeth Pinion
19

705500749 Ball Bearing

Ball Bearing
20

705501389 Ball Bearing

Ball Bearing
22

705501403 36Teeth Pinion

36Teeth Pinion
23

705500892 Screw

Screw
24

705501393 Rear Cover

Rear Cover
25

705500265 Seal

Seal
26

705501395 Pinion Rear Cover

Pinion Rear Cover
27

705500893 Vent Valve

Vent Valve
28

705500894 Drain Plug

Drain Plug
30

705500267 O-Ring

O-Ring
31

705501196 Oil Seal

Oil Seal
32

250400041 Screw Plug

Screw Plug
33

705500506 Copper Washer

Copper Washer
34

705501199 Wheel Hub Ass'y. Includes 34 to 35

Wheel Hub Ass'y. Includes 34 to 35
35

250300045 Wheel Stud

Wheel Stud
36

703500722 Protector Kit. Includes 36 to 37

Protector Kit. Includes 36 to 37
38

207662544 Hex. Flanged Screw M6 X 25

Hex. Flanged Screw M6 X 25
39

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6
40

250200082 Flat Washer

Flat Washer
41

250000359 Hex Flanged Screw M12 x 16

Hex Flanged Screw M12 x 16
42

250200102 Flat Washer M12

Flat Washer M12
43

705400352 Rubber Bellow

Rubber Bellow
44

293650042 Oetiker Clamp

Oetiker Clamp
45

250000359 Hex Flanged Screw M12 x 16

Hex Flanged Screw M12 x 16
47

705400680 Wheel Cap

Wheel Cap
48

705500938 Rear Tire. STD Europe

Rear Tire. STD Europe
48

705500685 Rear Tire. STD International

Rear Tire. STD International
48

705500685 Rear Tire. STD North America

Rear Tire. STD North America
48

705500940 Rear Tire. XT CAMO

Rear Tire. XT CAMO
48

705500606 Rear Tire. XT Europe Except CAMO

Rear Tire. XT Europe Except CAMO
48

705500940 Rear Tire. XT International Except CAMO

Rear Tire. XT International Except CAMO
48

705500940 Rear Tire. XT North America Except CAMO

Rear Tire. XT North America Except CAMO
48

705500606 Rear Tire. XTP Silver Europe

Rear Tire. XTP Silver Europe
48

705500940 Rear Tire. XTP Silver Except Europe

Rear Tire. XTP Silver Except Europe
48

705500606 Rear Tire. XTP Yellow Europe

Rear Tire. XTP Yellow Europe
48

705500940 Rear Tire. XTP Yellow Except Europe

Rear Tire. XTP Yellow Except Europe
49

705501188 Rear Wheel. STD Europe

Rear Wheel. STD Europe
49

705501188 Rear Wheel. STD International

Rear Wheel. STD International
49

705501188 Rear Wheel. STD North America

Rear Wheel. STD North America
49

705501019 Rear Wheel. XT CAMO

Rear Wheel. XT CAMO
49

705500986 Rear Wheel. XT Europe Except CAMO

Rear Wheel. XT Europe Except CAMO
49

705500986 Rear Wheel. XT International Except CAMO

Rear Wheel. XT International Except CAMO
49

705500986 Rear Wheel. XT North America Except CAMO

Rear Wheel. XT North America Except CAMO
49

705501019 Rear Wheel. XTP Silver Europe

Rear Wheel. XTP Silver Europe
49

705501019 Rear Wheel. XTP Silver Except Europe

Rear Wheel. XTP Silver Except Europe
49

705501019 Rear Wheel. XTP Yellow Europe

Rear Wheel. XTP Yellow Europe
49

705501019 Rear Wheel. XTP Yellow Except Europe

Rear Wheel. XTP Yellow Except Europe
50

705400193 Rim Valve with Cap

Rim Valve with Cap
51

705501385 1/2 OZ Weight

1/2 OZ Weight
52

705400950 Fin Wheel Moulding, Steel Gray. XTP Silver

Fin Wheel Moulding, Steel Gray. XTP Silver
52

705400681 Fin Wheel Moulding, Yellow. XTP Yellow

Fin Wheel Moulding, Yellow. XTP Yellow
54

293000110 Valve Cap

Valve Cap
56

250100082 Chrome Wheel Nut M10 X 1.25. All Except CAMO

Chrome Wheel Nut M10 X 1.25. All Except CAMO
56

250100100 Black Wheel Nut M10 X 1.25. XTP

Black Wheel Nut M10 X 1.25. XTP
56

250100100 Black Wheel Nut M10 X 1.25. XT CAMO

Black Wheel Nut M10 X 1.25. XT CAMO
57

250200102 Flat Washer M12

Flat Washer M12
58

250100047 Hex. Castellated Nut M18

Hex. Castellated Nut M18
59

250400036 Cotter Pin

Cotter Pin
61

705500979 LH CV Joint Ass'y. Includes 61 to 64

LH CV Joint Ass'y. Includes 61 to 64
62

705500980 CV Joint

CV Joint
63

705500870 Boot Kit. Includes 63 to 63b

Boot Kit. Includes 63 to 63b
63a

293650203 Oetiker Clamp (27,5mm)

Oetiker Clamp (27,5mm)
63b

293650204 Oetiker Clamp (81mm)

Oetiker Clamp (81mm)
64

705500845 Circlip

Circlip
65

705500983 RH CV Joint Ass'y. Includes 65 to 68

RH CV Joint Ass'y. Includes 65 to 68
66

705500980 CV Joint

CV Joint
67

705500870 Boot Kit. Includes 67 to 67b

Boot Kit. Includes 67 to 67b
67a

293650203 Oetiker Clamp (27,5mm)

Oetiker Clamp (27,5mm)
67b

293650204 Oetiker Clamp (81mm)

Oetiker Clamp (81mm)
68

705500845 Circlip

Circlip
69

230603036 Hex. Flanged Screw M10 X 130

Hex. Flanged Screw M10 X 130
70

230603536 Hex. Flanged Screw M10 X 135

Hex. Flanged Screw M10 X 135
71

233201436 Flanged Elastic Nut

Flanged Elastic Nut
72

293350040 Cone Bearing

Cone Bearing
73

705501124 Wear Ring

Wear Ring
74

705501121 Wear Sleeve

Wear Sleeve
75

293370019 Circlip

Circlip
76

250200049 Spring Washer

Spring Washer
