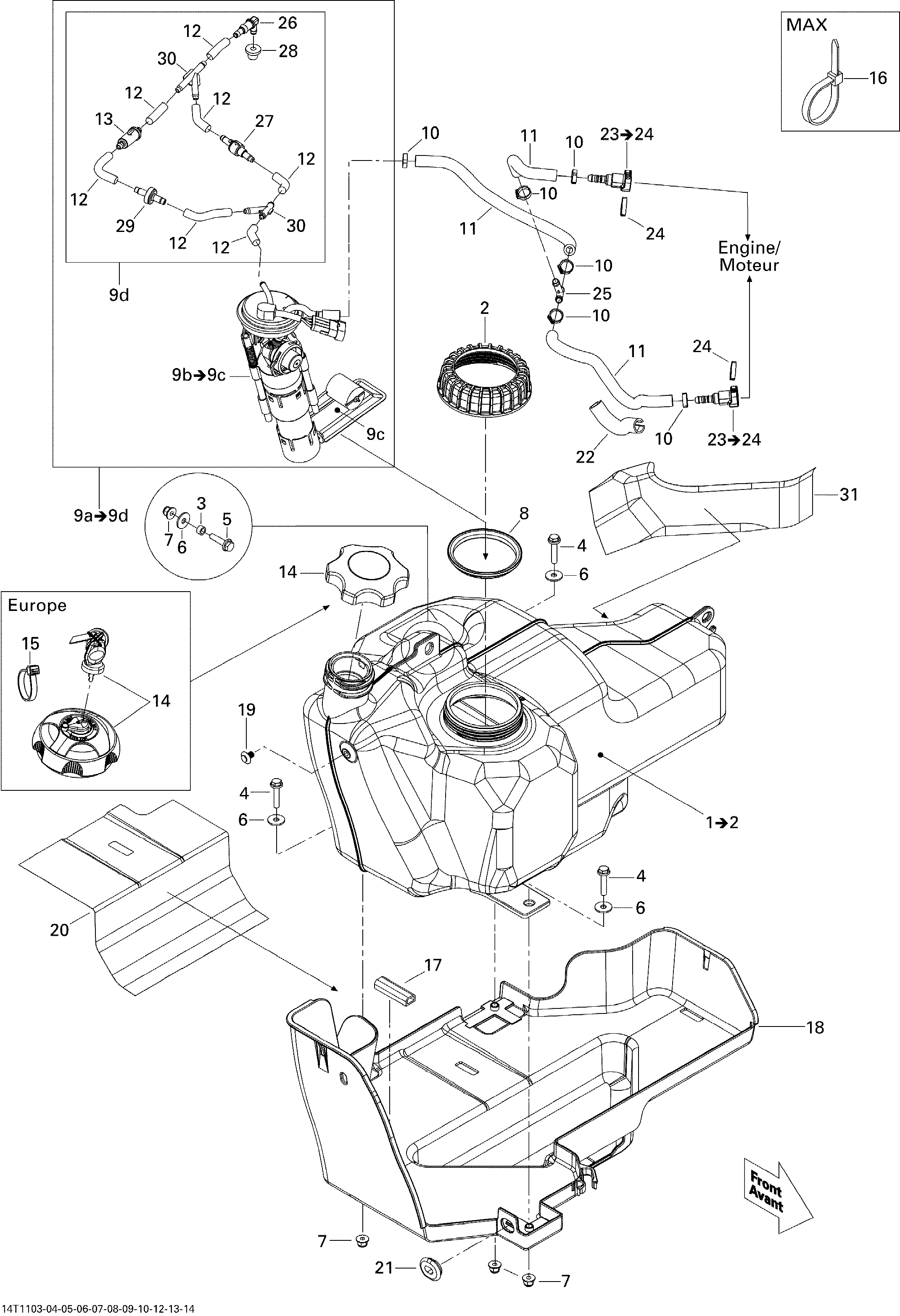

02- Fuel System для BRP Outlander Max 800R EFI - 2011

  • №
    Артикул
    Название
  • 1
    709000220 Fuel Tank. Includes 1 to 2
    Fuel Tank. Includes 1 to 2
  • 2
    513033040 Nut, Fuel Pump Module
    Nut, Fuel Pump Module
  • 3
    293900029 Bushing
    Bushing
  • 4
    207663044 Hex. Flanged Screw M6 X 30
    Hex. Flanged Screw M6 X 30
  • 5
    207662544 Hex. Flanged Screw M6 X 25
    Hex. Flanged Screw M6 X 25
  • 6
    224060251 Washer
    Washer
  • 7
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 8
    709000208 Seal
    Seal
  • 9a
    703500766 Fuel Pump Kit Ass'y. Includes 9a to 9d
    Fuel Pump Kit Ass'y. Includes 9a to 9d
  • 9c
    709000389 Preliminary Filter Kit
    Preliminary Filter Kit
  • 9d
    715001288 Fuel Vent Kit Ass'y. Includes 12,13,26,27,28,29,30
    Fuel Vent Kit Ass'y. Includes 12,13,26,27,28,29,30
  • 10
    293650046 Oetiker Clamp
    Oetiker Clamp
  • 11
    709000163 Fuel Line
    Fuel Line
  • 12
    415080200 Hose, Polyurethane
    Hose, Polyurethane
  • 13
    709000330 Filter
    Filter
  • 14
    513033025 Fuel Tank Cap
    Fuel Tank Cap
  • 14
    709000267 Fuel Tank Cap. Europe
    Fuel Tank Cap. Europe
  • 15
    293750001 Tie-Rap 94 mm. Europe
    Tie-Rap 94 mm. Europe
  • 16
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 17
    293200093 Neoprene Seal
    Neoprene Seal
  • 18
    709000207 Tank Protector
    Tank Protector
  • 19
    293150168 Plastic Tuklock Rivet
    Plastic Tuklock Rivet
  • 20
    709000360 Reflective Sheet
    Reflective Sheet
  • 21
    705005156 Oblong Washer
    Oblong Washer
  • 22
    409901800 Tubing 13 mm
    Tubing 13 mm
  • 23
    709000125 Female Quick Fitting Ass'y. Includes 23 to 24
    Female Quick Fitting Ass'y. Includes 23 to 24
  • 24
    513033135 Locking Clip
    Locking Clip
  • 25
    293710136 Y-Fitting, 5/16''
    Y-Fitting, 5/16''
  • 26
    414580600 Elbow Male Connector
    Elbow Male Connector
  • 27
    513033469 Check Valve
    Check Valve
  • 28
    293720029 Grommet
    Grommet
  • 29
    275500398 Check Valve
    Check Valve
  • 30
    293710059 Y-Fitting
    Y-Fitting
  • 31
    709000204 Reflecting Sheet
    Reflecting Sheet
