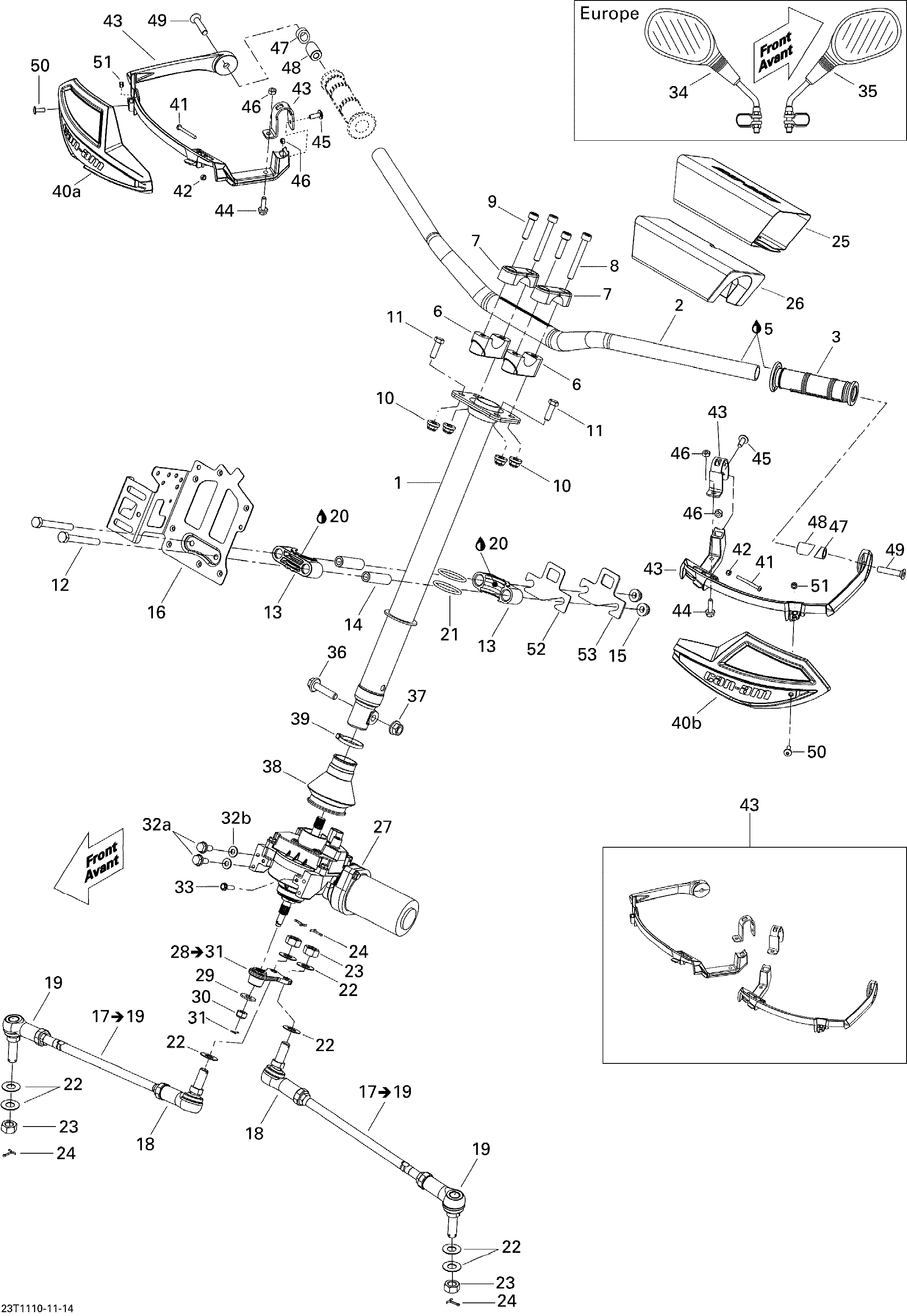

07- Steering для BRP Outlander 800R EFI, XXC - 2011
-
№АртикулНазвание
-
1709400566 Main TubeMain Tube
-
2709400513 Aluminum- Handle BarAluminum- Handle Bar
-
3709400493 Handle GripHandle Grip
-
5293800100 Loctite 406, 7 OzLoctite 406, 7 Oz
-
6709400497 Steering SupportSteering Support
-
7709400496 SupportSupport
-
8205086060 Socket Head Screw M8 X 60Socket Head Screw M8 X 60
-
9205083060 Socket Screw M8 X 30Socket Screw M8 X 30
-
10233281416 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
11207183060 Hex. Screw M8 X 30Hex. Screw M8 X 30
-
12207087044 Hex. Screw M8 X 70Hex. Screw M8 X 70
-
13709400471 Half BushingHalf Bushing
-
14709400072 BushingBushing
-
15233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
16709400751 Module SupportModule Support
-
17709400485 Tie Rod Ass'y. Includes 17 to 19Tie Rod Ass'y. Includes 17 to 19
-
18709400486 Ball Joint, LH ThreadsBall Joint, LH Threads
-
19709400487 Ball Joint, RH ThreadsBall Joint, RH Threads
-
20293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
21293300068 O-RingO-Ring
-
22706200281 Hardened WasherHardened Washer
-
23250100099 Nut M12Nut M12
-
24211400013 Cotter PinCotter Pin
-
25709400519 CoverCover
-
26709400422 FoamFoam
-
27709401001 Power Steering AssistPower Steering Assist
-
28703500784 Lower Main Tube Kit. Includes 28 to 31Lower Main Tube Kit. Includes 28 to 31
-
29250200086 Flat WasherFlat Washer
-
30250000047 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
31211400013 Cotter PinCotter Pin
-
32a207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
32b234281474 Conical Spring Washer M8Conical Spring Washer M8
-
33210252040 Hex. Forming ScrewHex. Forming Screw
-
34709400406 LH Mirror. EuropeLH Mirror. Europe
-
35709400523 RH Mirror. EuropeRH Mirror. Europe
-
36207683544 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
37233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
38709400674 BellowsBellows
-
39414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
40a709400530 RH Air DeflectorRH Air Deflector
-
40b709400531 LH Air DeflectorLH Air Deflector
-
41205444086 Socket Head Screw M4 X 40Socket Head Screw M4 X 40
-
42232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
43715000545 Deflector Support KitDeflector Support Kit
-
44207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
45250000223 Torx Screw M6 X 16Torx Screw M6 X 16
-
46232561600 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
47709400161 BracketBracket
-
48709400162 BracketBracket
-
49205384034 Socket Head ScrewSocket Head Screw
-
50250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
51232551600 Hex. Elastic Nut M5Hex. Elastic Nut M5
-
52709400734 Shim 2 mmShim 2 mm
-
53709400735 Shim 1 mmShim 1 mm
